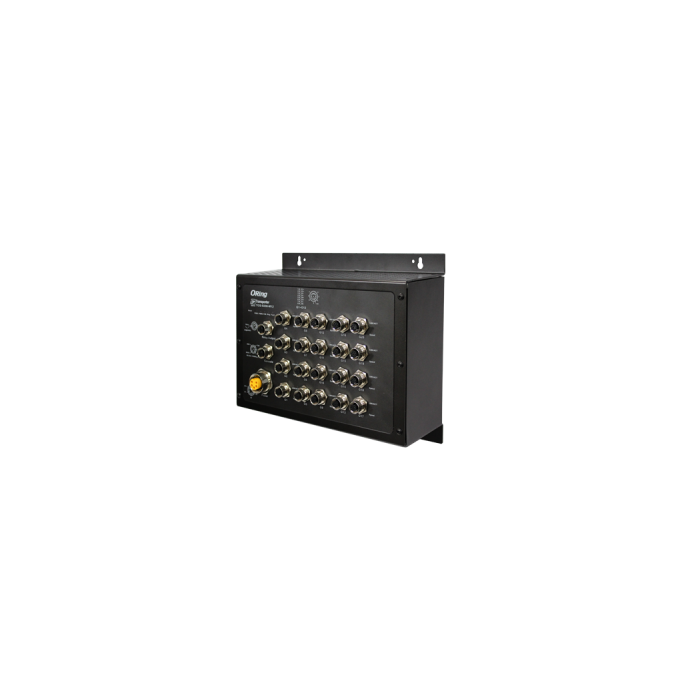

TGS-9200-M12 Series - 20 port managed switch

EN50155 20-port managed Gigabit Ethernet switch with 20x10/100/1000Base-T(X), M12 connector

In stock

SKU
TGS-9200-M12-xx

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / TGS-9200-M12 Series - 20 port managed switch

  • Leading EN50155-compliant Ethernet switch for rolling stock application
  • Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • Open-Ring support the other vendor’s ring technology in open architecture
  • O-Chain allow multiple redundant network rings
  • *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Support IEEE 1588v2 clock synchronization
  • Support IPV6 new internet protocol version
  • Support Modbus TCP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL, TACACS+ and 802.1x User Authentication for security
  • Supports 9.6K Bytes Jumbo Frame
  • Multiple notification for warning of unexpected event
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Provided 2xRelay bypass function with four gigabit ports (-BP2 model)
  • Wall mounting enabled

*NOTE: This function is available by request only

More Information

Specifications
Physical Ports
10/100/1000Base-T(X) ports in M12 Auto MDI/MDIX 20 (8-pin A-coding) 20 (8-pin A-coding with 2 x bypass function included)
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8K
Priority Queues 8
Processing Store-and-Forward
Switch Properties

Switching latency: 7 us
Switching bandwidth: 40Gbps
Max. Number of Available VLANs: 4095
IGMP multicast groups: 256 for each VLAN
Port rate limiting: User Define
Jumbo frame Up to 9.6K Bytes
Security Featues

Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
Software Features

STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP
Network Redundancy

O-Ring
O-Chain
*note MRP
MSTP (RSTP/STP compatible)
RS-232 Serial Console Port RS-232 in M12 (A-coding) connector with console cable. 115200bps, 8, N, 1
LED Indicators
Power Indicator (PWR) Green : Power LED x 2
Ring Master Indicator (R.M.) Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)

Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault) Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) M12 Port Indicator

Up of Green LED for Link/Act indicator.
Down of dual color LED for Ethernet speed indicator : Green LED for 1000Mbps, Amber for 100Mbps, Off for 10Mbps
Fault Contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power Dual DC inputs. 12~48VDC on 5-pin M23 connector Dual DC inputs. 12~48VDC on 5-pin M23 connector
Power Consumption (Typ.) 20 Watts 20.5 Watts
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 260 (W) x 91.6 (D) x228 (H) mm (10.24 x 3.60 x 8.98 inch.)
Weight (g) 2513 g 2535 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
Power Automation IEC 61850-3, IEEE 1613
EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock IEC60068-2-27, EN61373
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Warranty 5 years
Description
  • Leading EN50155-compliant Ethernet switch for rolling stock application
  • Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • Open-Ring support the other vendor’s ring technology in open architecture
  • O-Chain allow multiple redundant network rings
  • *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Support IEEE 1588v2 clock synchronization
  • Support IPV6 new internet protocol version
  • Support Modbus TCP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL, TACACS+ and 802.1x User Authentication for security
  • Supports 9.6K Bytes Jumbo Frame
  • Multiple notification for warning of unexpected event
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Provided 2xRelay bypass function with four gigabit ports (-BP2 model)
  • Wall mounting enabled

*NOTE: This function is available by request only
