TGXS-1080-M12 Series - 8 port unmanaged switch
TGXS-1080-M12 Series - 8 port unmanaged switch

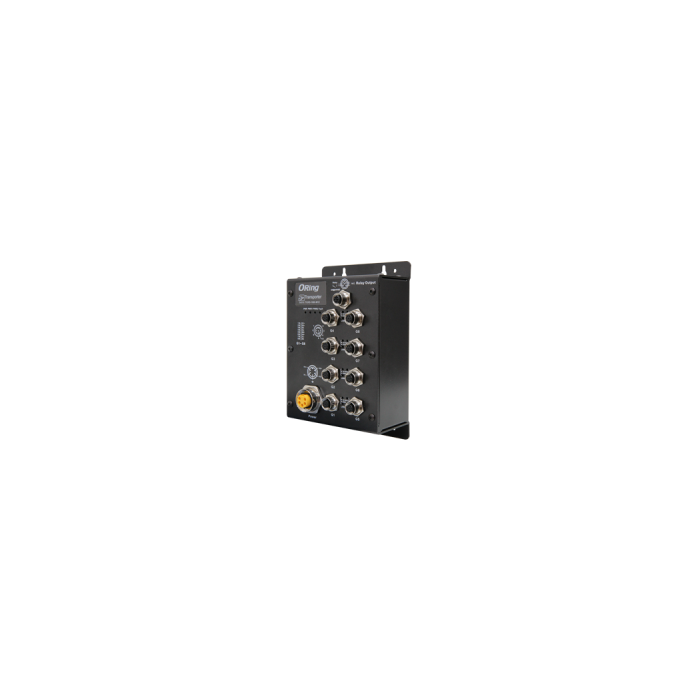

EN50155 8-port unmanaged Gigabit Ethernet switch with 8x10/100/500/1000Base-T(X), M12 connector
-
SKU
-
TGXS-1080-M12-xx
Have a Question about this product?
Description /
TGXS-1080-M12 Series - 8 port unmanaged switch
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Provide 8x10/100/500/1000Base-T(X) ports
- Support dual power inputs for power redundancy
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- M12 connectors to guarantee reliable operation against environmental disturbances
- Rigid IP-30 housing design
- Wall mounting enabled
More Information
| Specifications |
| Physical Ports |
|
| 10/100/500/1000Base-T(X) Ports in M12 |
8 x M12 connector (8-pin A-coding) |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
|
| MAC Table |
4K MAC addresses |
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 3 |
| Fault indicator |
Amber : Indicate PWR1 or PWR2 failure |
|
10/100/500/1000Base-T(X) M12 port indicator
|
Top for 10/100/1000Mbps port Link/Act indicator. Green for 1Gbps link, Amber for 10/100 Mbps link
Bottom Amber for 500Mbps port Link/Act indicator
|
| Fault Contact |
|
| Relay |
Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding) |
| Power |
|
| Redundant Input Power |
Dual DC inputs. 12~48VDC on 5-pin M23 connector |
| Power Consumption (Typ.) |
7 Watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
125 (W) x 65 (D) x196 (H) mm |
| Weight (g) |
812 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMC |
CE EMC (EN 55024, EN 55032), FCC Part 15B, EN 50121-3-2 (EN 50155) |
| EMI |
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A |
| EMS |
EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
|
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-31 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Other |
EN50155 |
| MTBF |
409156 hrs |
| Warranty |
5 years |
|
| Description |
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Provide 8x10/100/500/1000Base-T(X) ports
- Support dual power inputs for power redundancy
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- M12 connectors to guarantee reliable operation against environmental disturbances
- Rigid IP-30 housing design
- Wall mounting enabled
|
