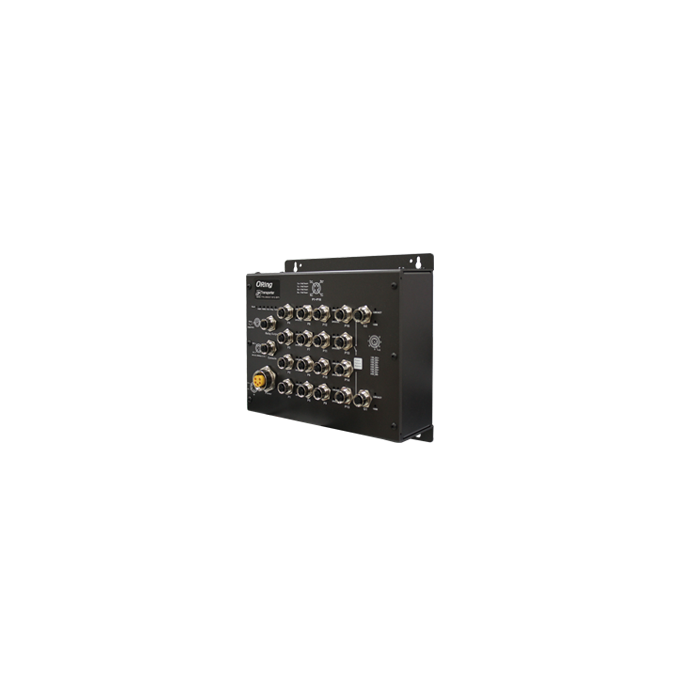

| Physical Ports |
|
|
10/100Base-T(X) Ports in M12 Auto MDI/MDIX with P.S.E.
|
8 x M12 female connector (4-pin D-coding) |
| 10/100Base-T(X) Ports in M12 Auto MDI/MDIX |
8 x M12 female connector (4-pin D-coding) |
| 10/100/1000Base-T(X) ports in M12 |
2 x M12 female connector (8-pin A-coding) |
| RS-232 Serial Console Port |
RS-232 in M12 female connector (A-coding). Baud rate setting: 9600bps, 8, N, 1 |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1D-2004 for RSTP:2004 (Rapid Spanning Tree Protocol 2004)
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3af PoE specification (up to 15.4 Watts per port for P.S.E.)
|
| MAC Table |
8192 MAC addresses |
| Priority Queues |
4 |
| Processing |
Store-and-Forward |
| Switch Properties |
Switching latency: 7 us
Switching bandwidth: 7.2Gbps
Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024
Port rate limiting: User Define
|
| Security Featues |
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q) to segregate and secure network traffic
Supports Q-in-Q VLAN for performance & security to expand the VLAN space
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication and access security
Https / SSH enhance network security
|
| Software Features |
STP/RSTP:2004/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
Support PTP Client (Precision Time Protocol) clock synchronization
DHCP Server / Client support
Port Trunk support
MVR (Multicast VLAN Registration) support
|
| Network Redundancy |
O-Ring
O-Chain
*note MRP
STP
RSTP:2004
MSTP
|
| Warning / Monitoring System |
Relay output for fault event alarming
Syslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support
|
| LED Indicators |
|
| Power Indicator |
Green: Power LED x 2 |
| R.M. Indicator |
Green: Indicate system operated in O-Ring Master mode |
| O-Ring Indicator |
Green: Indicate system operated in O-Ring mode |
| Fault Indicator |
Amber: Indicate unexpected event occurred |
| 10/100Base-T(X) M12 PoE Port Indicator |
Top Green for port Link/Act.
Middle Green for PoE indicator.
Bottom Amber for Collision/Duplex indicator.
|
| 10/100Base-T(X) M12 Port Indicator |
Green for Link/Act. Amber for duplex/collision indicator |
| 10/100/1000Base-T(X) M12 Port Indicator |
Green for Link/Act. Amber for 100Mbps indicator |
| Fault Contact |
|
| Relay |
Relay output to carry capacity of 3A at 24VDC on M12 female connector (5-pin A-coding) |
| Power |
|
| Redundant Input Power |
Dual DC inputs. 24 (12~57VDC) VDC on 5-pin M23 female connector |
| Power Consumption (Typ.) |
14.88 Watts (power consumption of P.S.E. is not included) |
| PoE Output Power |
60 Watts (12~24VDC) / 120 Watts (24~57VDC) |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
260 (W) x 91.3 (D) x216 (H) mm |
| Weight (g) |
2140 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
