Description / TX09D200VM0BAA

3.5” QVGA, 3:4, RoHS compliant, LED TFT LCD

Specifications

Part Name	TX09D200VM0BAA

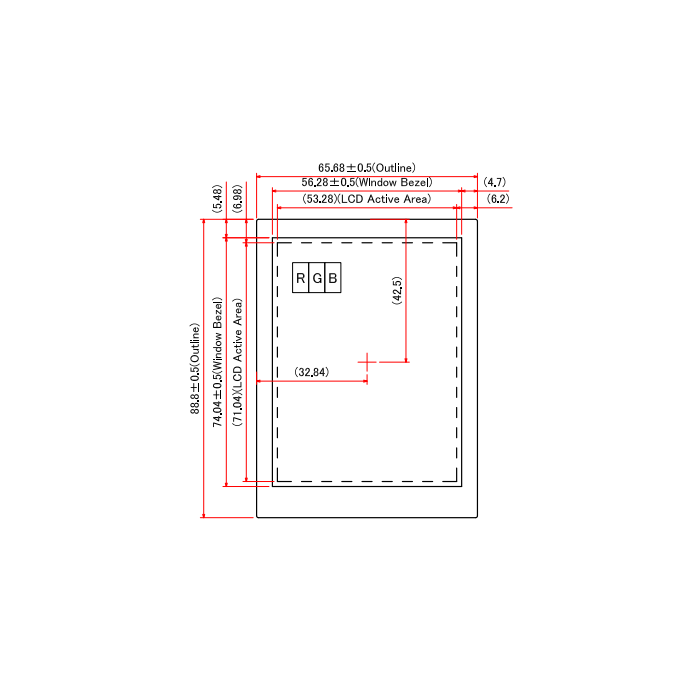

Module Dimensions	65.68 (W) mm x 88.8 (H) mm x 9.95 (D) mm
LCD Active Area	53.28 (W) mm x 71.04 (H) mm
Pixel Pitch	0.222 (W) mm x 0.222 (H) mm
Resolution	240 x (RGB)(W) x 320(H) dots
Colour Pixel Arrangement	R,G,B Vertical stripe
LCD Type	Trans missive Colour TFT; Normally Black
Display Type	Active Matrix
Number of Colours	16.7M Colours (8-bit RGB)
Backlight	LED
Weight	72g
Interface	C-MOS; 50 pins
Power Supply Voltage	3.3V for LCD; 12V for Backlight
Power Consumption	82.5mW for LCD; 1020mW for Backlight
Viewing Direction	Super wide version

Description

3.5” QVGA, 3:4, RoHS compliant, LED TFT LCD
