TX11D201VM0BAA

4.2” WQVGA, 16:9, RoHS compliant, LED LCD

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / TX11D201VM0BAA

4.2” WQVGA, 16:9, RoHS compliant, LED LCD

Specifications

Part Name	TX11D201VM0BAA

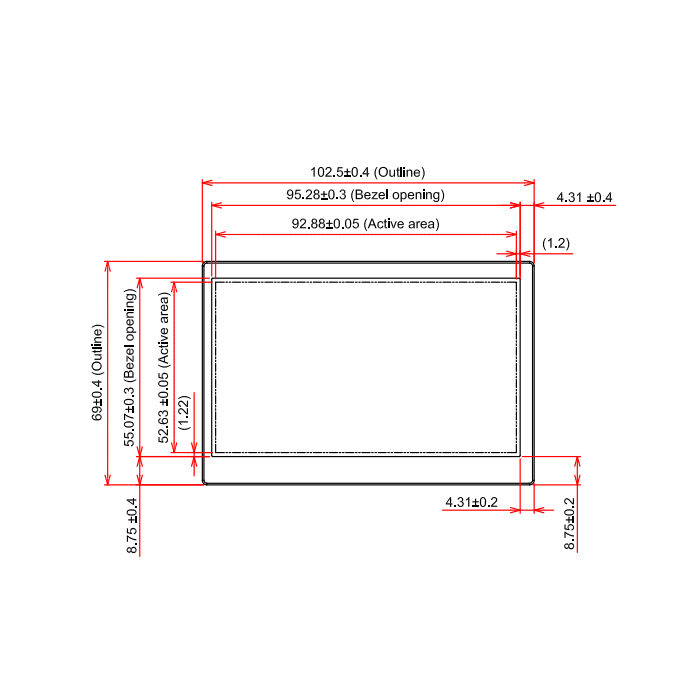

Module Dimensions	102.5 (W) mm x 69 (H) mm x 9.8 (D) mm
LCD Active Area	92.88 (W) mm x 52.632 (H) mm
Pixel Pitch	0.0645 x 3 (W) mm x 0.1935 (H) mm
Resolution	480 x 3 (RGB)(W) x 272(H) dots
Colour Pixel Arrangement	R,G,B Vertical stripe
LCD Type	Trans missive Colour TFT; Normally Black
Display Type	Active Matrix
Number of Colours	16.7M Colours (8-bit RGB)
Backlight	LED
Weight	97g
Interface	C-MOS; 68 pins
Power Supply Voltage	3.3V for LCD; 13.5V for Backlight
Viewing Direction	Super wide version

Description

4.2” WQVGA, 16:9, RoHS compliant, LED LCD
