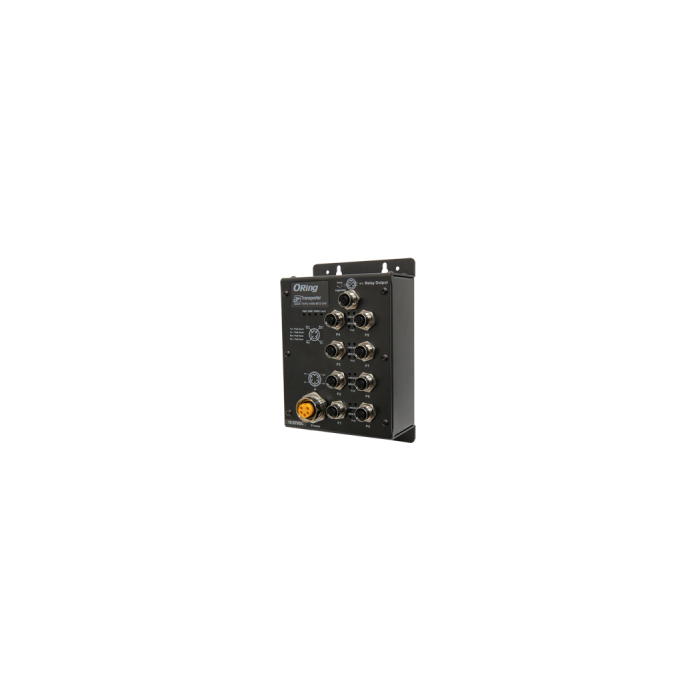

TXPS-1080 EN50155 8-port unmanaged PoE Ethernet switch
TXPS-1080 EN50155 8-port unmanaged PoE Ethernet switch
EN50155 8-port unmanaged PoE Ethernet switch with 8x10/100/500Base-T(X) P.S.E., M12 connector and 2xbypass included, 24VDC power inputs
-
SKU
-
TXPS-1080-M12-24V-xx
Have a Question about this product?
Description /
TXPS-1080 EN50155 8-port unmanaged PoE Ethernet switch
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Provide 8x10/100/500Base-T(X) PoE (P.S.E.) ports
- Supports IEEE 802.3at compliant PoE with maximum 30Watts per port
- Support dual power inputs for power redundancy
- Built-in 2 sets of bypass ports (-BP2)
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- M12 connectors to guarantee reliable operation against environmental disturbances
- Rigid IP-30 housing design
- Wall mounting enabled
More Information
| Specifications |
| Physical Ports |
|
| 10/100/500Base-T(X) Ports in M12 With P.S.E. |
8 x M12 connector (4-pin D-coding, bypass function included by last 4 ports) |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3at compliant PoE specification (Maximum 30Watts per port)
|
| MAC Table |
4K MAC addresses |
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 3 |
| Fault indicator |
Amber : Indicate PWR1 or PWR2 failure |
|
10/100/500Base-T(X) M12 port indicator and PoE indicator
|
Top Green for 10/100Mbps port Link/Act indicator
Middle Amber for 500Mbps port Link/Act indicator
Bottom blue for PoE Injected indicator
|
| Fault Contact |
|
| Relay |
Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding) |
| Power |
|
| Redundant Input Power |
Dual DC inputs. 24 (12~57VDC) VDC on 5-pin M23 connector |
| Power Consumption (Typ.) |
3 Watts (power consumption of P.S.E. is not included) |
| PoE Output Power |
60 Watts (12~24VDC) / 120 Watts (24~57VDC) |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
125 (W) x 65 (D) x196 (H) mm |
| Weight (g) |
1015 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMC |
CE EMC (EN 55024, EN 55032), FCC Part 15B, EN 50121-3-2 (EN 50155) |
| EMI |
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A |
| EMS |
EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
|
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-31 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Other |
EN50155 |
| MTBF |
306849 hrs |
| Warranty |
5 years |
|
| Description |
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Provide 8x10/100/500Base-T(X) PoE (P.S.E.) ports
- Supports IEEE 802.3at compliant PoE with maximum 30Watts per port
- Support dual power inputs for power redundancy
- Built-in 2 sets of bypass ports (-BP2)
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- M12 connectors to guarantee reliable operation against environmental disturbances
- Rigid IP-30 housing design
- Wall mounting enabled
|
