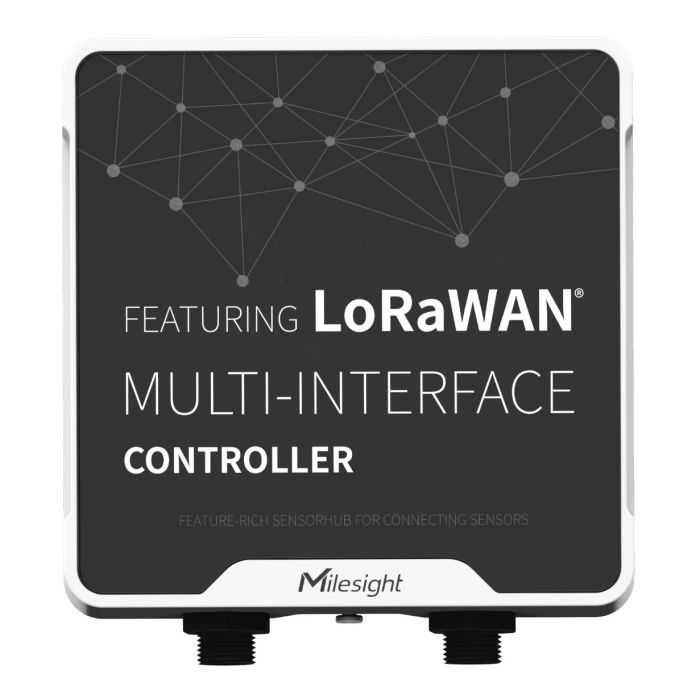

Shop UC500 LoRaWAN Controller

UC500 series is a LoRaWAN® controller used for data acquisition from multiple sensors.

In stock

SKU: UC501 (Solar), UC502

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / UC500 LoRaWAN Controller

Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces

Long transmission distance up to 11km with line of sight

Waterproof design including IP67 case and M12 connectors

Solar powered and built-in battery optional

Quick wireless configuration via NFC

Compliant with standard LoRaWAN® gateways and network servers

Quick and easy management with Milesight IoT Cloud solution

More Information

Specifications	 Specifications Wireless Transmission Technology LoRaWAN® Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 Tx Power 16dBm(868)/20dBm(915)/19dBm(470) Sensitivity -147dBm @300bps Mode OTAA/ABP Data Interfaces Interface Type M12 A-Coded Male IO Ports 2 × GPIO Logical Level Low: 0~0.9V, High: 2.5~3.3V Work Mode Digital input, digital output, pulse counter (only support on GPIO2) Serial Port Ports 1 × RS232 or RS485 (Switchable) Baud Rate 300~230400 bps Protocol Transparent (RS232), Modbus RTU (RS485) Analog Input Ports 2 × Analog input Resolution 12 bit Input Range 4~20mA or 0~10V (Switchable)
Description	Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces Long transmission distance up to 11km with line of sight Waterproof design including IP67 case and M12 connectors Solar powered and built-in battery optional Quick wireless configuration via NFC Compliant with standard LoRaWAN® gateways and network servers Quick and easy management with Milesight IoT Cloud solution

Specifications

 Specifications
Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Tx Power 16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity -147dBm @300bps
Mode OTAA/ABP
Data Interfaces
Interface Type M12 A-Coded Male
IO
Ports 2 × GPIO
Logical Level Low: 0~0.9V, High: 2.5~3.3V
Work Mode Digital input, digital output, pulse counter (only support on GPIO2)
Serial Port
Ports 1 × RS232 or RS485 (Switchable)
Baud Rate 300~230400 bps
Protocol Transparent (RS232), Modbus RTU (RS485)
Analog Input
Ports 2 × Analog input
Resolution 12 bit
Input Range 4~20mA or 0~10V (Switchable)
