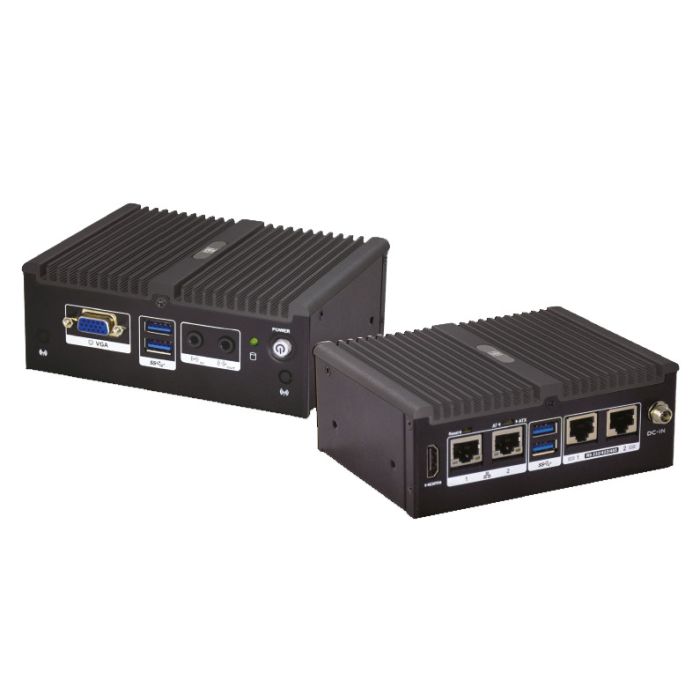

uIBX-250-BW Ultra Compact Size PC
Std build - Fanless Celeron® N3160, 4GB RAM, 128GB Wide Temp SSD, Win 10 IOT pre-loaded
Contact for other builds/configs.
In stock
- SKU
- uIBX-250-BW-N3/2G-R21
Have a Question about this product?
Description / uIBX-250-BW Ultra Compact Size PC
The uIBX-250-BW Embedded System is a Fanless PC based on Intel® Celeron® N3160 processor pre-installed and supports one 204-pin DDR3L 1.35 V SO-DIMM module up to 8 GB (pre-installed 2 GB) with one VGA port and one HDMI for dual display.
This Embedded System supports a 2.5” SATA SSD/HDD. Two RS-232/422/485 serial ports and four USB 3.0 ports ensure simplified connectivity to a variety of external peripheral devices.
KEY FEATURES:
- Fanless System with Intel® Celeron® N3160 Processor
- Dual Display
- Two RS-232/422/485
- Full-Size PCIe Mini-Slot for Expansion
- Four USB 3.2 Gen 1 (5Gb/s) ports
- Two GbE LAN Ports
More Information
| Brand | IEI Integration Corp. | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||
| Description |
The uIBX-250-BW Embedded System is a Fanless PC based on Intel® Celeron® N3160 processor pre-installed and supports one 204-pin DDR3L 1.35 V SO-DIMM module up to 8 GB (pre-installed 2 GB) with one VGA port and one HDMI for dual display. This Embedded System supports a 2.5” SATA SSD/HDD. Two RS-232/422/485 serial ports and four USB 3.0 ports ensure simplified connectivity to a variety of external peripheral devices. KEY FEATURES:
|
||||||||||||||||||||||||||||||||||||||||||||
