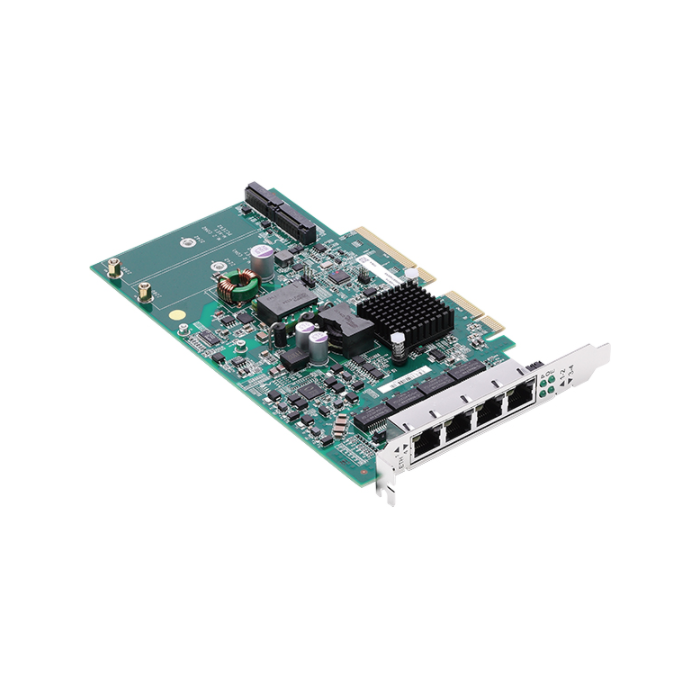

Intelligent 4-Port PoE+ GbE/GigE Frame Grabber

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VIOP-GE74 - Intelligent 4-Port PoE

In-vehicle and machine vision applications

4-Port independent GbE with PoE+ function

2KV isolation for LAN signal and power

PoE on/off and power watt monitoring per port

Two ultra-fast NVMe storage media for RAID0/1 configuration

Compact size PCIe card for easy and quick install

9K-byte Jumbo frame and PTP (IEEE 1588) support

Compliant with E-Mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock

Tough environment with operating temp -30~85°C

Specifications

PCI Express	PCIe 3.0 x4 lane compliantExtra proprietary PCIe slot for NVMe storage expansionPower draw from PCIe slot in default
Ethernet	4-Port RJ45 independent 10/100/1000 Mbit/sIEEE 802.3/802.3u/802.3ab and IEEE802.3x9K-byte jumbo frameIEEE 802.1AS/IEEE 1588 (PTP) supportGbE controller: Intel® 82580EB
Power over Ethernet (PoE)	IEEE 802.3af/at compliant25W per port in max., 4-port total at 52W PSEPoE on/off and power watt monitoring
Protection	OCP & OVP2KV isolation for Ethernet
NVMe Media Storage*	Form factor: M.2 key-M (2242/2280) slotInterface: PCIe 3.0 x2Compatible to key M/B+M M.2 PCIe 3.0x4/x2 interface2 x M.2 slot
Environment & Regulation	Operating temperatures: -30~85°CStorage temperatures: -40~85°CDamp heat test per EN60068-2-30Humidity: IEC60068-2-3, 40C, 95%, 48HrsCE, FCC Class A, E-Mark (pre-installed on ATC 8110)
Mechanics	Anti-vibration - IEC 60068-2-64.2.5G (5~500Hz) - Operating: MIL-STD-810G, 514.6C Procedure 3, Category 4 - Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24Anti-shock - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g - Crash hazard: Procedure V, ground equipment=75gDimension: 190mm x 111mm (L x H)Net weight: 176g
