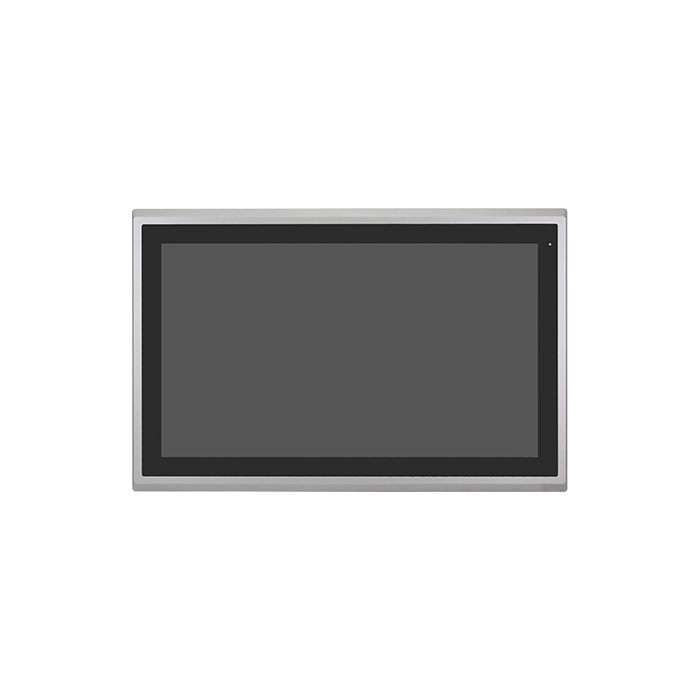

ViPAC-921P/R/G(H) 21.5” Intel 6th/7th Core i3/i5/i7 Panel PC

Aplex Technology Inc.

Aplex ViPAC-921P/R/G(H) 21.5” 7th Gen Core i3/i5/i7 Panel PC IP66 RAID Touchscreen

Key Features:

  • 21.5” TFT LCD Panel PC
  • Intel 6th/7th Core i3/i5/i7 Socket type Processor
  • Modular concept and with Fan Design
  • Support PCT/RTW/AR Glass
  • Front Bezel IP66
  • Option WiFi/BT/Speaker
  • Support 2 x Expansion slot
  • DC 9~36V Power input, option AC power input



ViPAC-921R
21.5" FHD Intel Core 6th Core i processor with H170 chipset, with Fan design panel PC, 2 x 260pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIe x1 and 1 x PCIe x16 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

ViPAC-921P
21.5" FHD Intel Core 6th Core i processor with H170 chipset, with Fan design panel PC, 2 x 260pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIe x1 and 1 x PCIe x16 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

In stock

SKU
ViPAC-921

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / ViPAC-921P/R/G(H) 21.5” Intel 6th/7th Core i3/i5/i7 Panel PC

The HMI Controller Industrial Display Monitor, ViPAC-921P/R/G(H), is a versatile 21.5" Intel 6th/7th Core i3/i5/i7 Panel PC designed for industrial applications. It features an Intel 6th/7th Gen Core i3/i5/i7 processor with an Intel H170 chipset. The system supports up to 32GB of memory with 2 x 260-pin DDR4 SO-DIMM slots. It comes with 2 x 2.5" SATA HDD space, supporting RAID 0, 1, 5, and an easily accessible storage design. The power input ranges from DC 9 to 36V, with an option for AC power input.

The display options include a 21" TFT-LCD with a standard resolution of 1280 x 1024 and a high-brightness option. The touch screen supports both Resistive Touch and Projected Capacitive Touch, with light transmission rates of over 80% and over 90%, respectively. The front bezel is rated IP66, providing protection against dust and water.

The panel PC supports expansion through various slots, including 1 x Full-size Mini PCIe on board, 1 x Half-size Mini PCIe on board, and a SIM slot for optional WiFi/BT/4G connectivity. It offers multiple I/O ports at the rear side, such as USB 3.0 type A ports, RJ45 GbE LAN ports, DB9 RS-232/422/485 ports, VGA, HDMI, Line-out/Mic-in, and more. The system is designed with a modular concept and a fan design for efficient cooling.

Key Features:

  • 21” TFT LCD Panel PC
  • Intel 6th/7th Core i3/i5/i7 Socket type Processor
  • Modular concept and with Fan Design
  • Support PCT/RTW/AR Glass
  • Front Bezel IP66
  • Option WiFi/BT/Speaker
  • Support 2 x Expansion slot
  • DC 9~36V Power input, option AC power input

More Information

brand Aplex Technology Inc.
Specifications

System



CPU

Intel 6th/7th Gen Core i3/i5/i7 processor

System Chipset

Intel H170

Memory

2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM

IO Port




4 x USB 3.0 type A


2 x RJ45 GbE LAN


1 x DB9 RS-232/422/485 default RS-232


1 x DB9 RS-232


1 x DB9 RS-422/485 default RS-485


1 x DB15 VGA

Rear side I/O port

1 x HDMI with Cover


1 x Line-out/Mic-in


1 x 2 pin Terminal block for external power switch


2 x LED indication for HDD/System


1 x System LED indication at front


1 x 3 pin TB Power connector


1 x Power Switch on/off


2 x 2W speaker at rear side

Option I/O

4 x USB 2.0 Type A via TB-5462 x DB9 COM port


1 x 8-bit GPIO (3 in/out/VCC/GND)

Storage Space



HDD

2 x 2.5” SATA HDD space, support RAID 0, 1, 5 (Easily Accessible storage design)

Expansion




1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default)

Expansion Slot




1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default)


1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side)


1 x PCIe x1 and 1 x PCIe x16 slot via TB-560E11E161 (default)

Display

Standard

High Brightness Optional

Display Type

21.5” TFT-LCD

21.5” TFT-LCD

Max. Resolution

1920 x 1080

1920 x 1080

Max. Color

16.7M

16.7M

Luminance (cd/m2)

250

1000

View Angle

178(H) / 178(V)

178(H) / 178(V)

Contrast

3000:1

3000:1

Backlight Lifetime

30,000 hrs

50,000 hrs

Option

Auto Dimming

Auto Dimming

Touch Screen

Resistive Touch

Projected Capacitive Touch

Interface

USB

USB

Light Transmission(%)

Over 80%

Over 90%

Power



Power Input

DC 9~36V Power input, option AC power input

Mechanical



Construction

Aluminum die-casting front bezel and steel chassis Stainless front bezel (option)

Mounting

Panel Mount

IP Rating

Front Panel IP66

Dimensions

557.3 x 362.3 x 99.8 mm

Net Weight

8.7 kg

Environmental



Operating Temperature

0~50°C

Storage Temperature

-30~70°C

Humidity

10 to 95% @ 40°C, non- condensing

Certificate

CE / FCC Class A

Operating System Support

Windows embedded 7 Windows embedded 8.1 Windows 10 IoT Enterprise

ViPAC-921R

21.5" FHD Intel Core 6th Core i processor with H170 chipset, with Fan design panel PC, 2 x 260pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIe x1 and 1 x PCIe x16 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

ViPAC-921P

21.5" FHD Intel Core 6th Core i processor with H170 chipset, with Fan design panel PC, 2 x 260pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIe x1 and 1 x PCIe x16 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
Description

The HMI Controller Industrial Display Monitor, ViPAC-921P/R/G(H), is a versatile 21.5" Intel 6th/7th Core i3/i5/i7 Panel PC designed for industrial applications. It features an Intel 6th/7th Gen Core i3/i5/i7 processor with an Intel H170 chipset. The system supports up to 32GB of memory with 2 x 260-pin DDR4 SO-DIMM slots. It comes with 2 x 2.5" SATA HDD space, supporting RAID 0, 1, 5, and an easily accessible storage design. The power input ranges from DC 9 to 36V, with an option for AC power input.

The display options include a 21" TFT-LCD with a standard resolution of 1280 x 1024 and a high-brightness option. The touch screen supports both Resistive Touch and Projected Capacitive Touch, with light transmission rates of over 80% and over 90%, respectively. The front bezel is rated IP66, providing protection against dust and water.

The panel PC supports expansion through various slots, including 1 x Full-size Mini PCIe on board, 1 x Half-size Mini PCIe on board, and a SIM slot for optional WiFi/BT/4G connectivity. It offers multiple I/O ports at the rear side, such as USB 3.0 type A ports, RJ45 GbE LAN ports, DB9 RS-232/422/485 ports, VGA, HDMI, Line-out/Mic-in, and more. The system is designed with a modular concept and a fan design for efficient cooling.

Key Features:

  • 21” TFT LCD Panel PC
  • Intel 6th/7th Core i3/i5/i7 Socket type Processor
  • Modular concept and with Fan Design
  • Support PCT/RTW/AR Glass
  • Front Bezel IP66
  • Option WiFi/BT/Speaker
  • Support 2 x Expansion slot
  • DC 9~36V Power input, option AC power input
