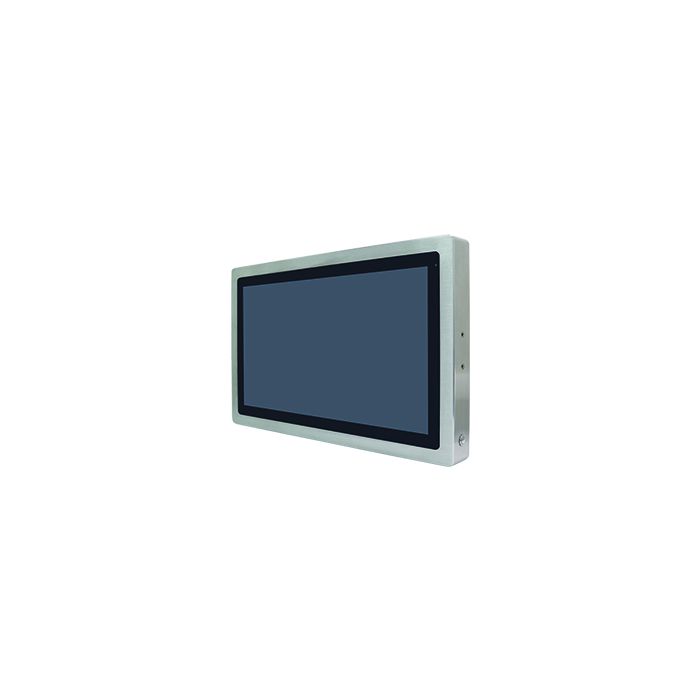

ViTAM-810 10.1" IP66/IP69K Stainless Panel PC
10.1" New Gen. IP66/IP69K Stainless Steel Panel PC
Key Features:
- 10.1" TFT-LCD Projected Capacitive Touch
- Intel Celeron N2930 1.83GHz Onboard Processor
- True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Touch on/off Button on the Side Edge for Hygienic Cleaning
In stock
- SKU
- ViTAM-810 R/P/G/H
Have a Question about this product?
Description / ViTAM-810 10.1" IP66/IP69K Stainless Panel PC
10.1" New Gen. IP66/IP69K Stainless Steel Panel PC
Key Features:
- 10.1" TFT-LCD Projected Capacitive Touch
- Intel Celeron N2930 1.83GHz Onboard Processor
- True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Touch on/off Button on the Side Edge for Hygienic Cleaning
More Information
| Brand | Aplex Technology Inc. |
|---|---|
| Specifications | System
CPUOnboard Intel Celeron N2930(1.83GHz) Processor System ChipsetSoC System MemoryOnboard 4GB DDR3L SDRAM , up to 8GB(option) Power Consumption17W USB1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain Serial / Parallel1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain LAN1 x M12 8-pin for LAN with waterproof cover and chain(POE for option) Power1 x M12 3-pin for DC power with waterproof cover and chain / 1 x Power switch on the side / 1 x Touch on/off button on the side Storage Space
HDD/SSD1 x 2.5" SATA3 HDD Expansion
Expansion slot1 x MiniPCIe slot for WIFI/BT(optional), 4G/LTE(optional) Display
LCD Size10.1" TFT-LCD Max. resolution1280 x 800 Max. color16.7M Luminance(cd/m²)350 Viewangle(H°/V°)170/170 Contrast800:1 Backlight lifetime(hrs)25000 Power
Power inputDC 9~36V Mechanical
Construction304 Stainless steel chassis(default), 316 Stainless steel chassis(optional) IP ratingIP66 / IP69K MountingVESA 75 x 75, Yoke mount Dimension(mm)300 x 220 x 53 Net weight(Kgs)3.9 Kg Environment
Operating temperature(°C)0~50°C Storage temperature(°C)-30~70°C Storage humidity10 to 90% @ 40°C, non- condensing CertificationCE / FCC CLASS A Operating System SupportWEC 7, Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB |
| Description | 10.1" New Gen. IP66/IP69K Stainless Steel Panel PC Key Features:
|
