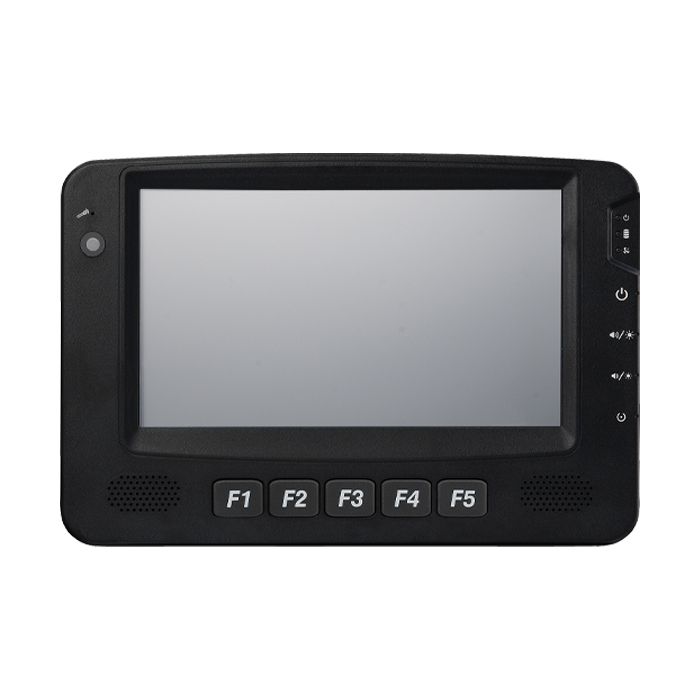

Introducing the VMC 1110, a new generation 7-inch vehicle mount computer with a dual-core Intel Atom® processor is designed for transportation and harbour applications requiring real-time vehicle tracking and job-dispatching. For real-time communication between the driver and the central control room, VMC 1110 provides the capability of wireless connection from GNSS, WLAN to WWAN. To get more data from accessories, it offers RS-232, RS-485, USB 2.0, GPIO, and LAN connections. CAN FD can help to receive car status more quickly and correctly. Due to the unique features above, VMC 1110 is perfect for use in harbour applications from container trucks, to forklifts, and container stackers.
More Information
brand
Nexcom
Specifications
LCD Panel
7-inch TFT LCD panel with LED backlight
1024 x 600 pixels
Brightness: 1000 cd/m² (typical)
Viewing angle: 170° (H)/170°(V)
Contrast ratio: 1000:1 (typical)
Touch Screen Sensor
4-Wire resistant touch
Anti-glare coating surface
Transmission rate: 78 ± 3%
CPU & Chipset
Intel Atom® dual core x7211RE Processor, 1.0GHz
Memory
1 x DDR5 4800MHz 262-pin SO-DIMM, up to 32GB, 8GB default
Video Output
1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz
Storage
1 x eMMC 128GB
1 x microSD card slot, SDXC v3.01
2 x M.2 Key B 2242 socket (M.2 socket occupied)
Expansion
1 x M.2 Key B 3042/3050/3052 socket (USB 2.0, USB 3.2 Gen 2, SATA 3.0) for LTE/5G NR module with 1 x external dual nano-SIMs
1 x M.2 Key E 2230 socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 Key E 2230 socket (USB 2.0, PCIe 3.0, PCIe 3.0)
1 x M.2 Key B 2242 socket (USB 2.0, PCIe 3.0/SATA 3.0 (auto detect)
GNSS and Onboard Sensor
1 x Default u-blox NEO-M9N GNSS for GPS/Glonass/QZSS/Galileo/Beidou
Optional M9V modules with dead reckoning available
G Sensor and gyroscope
LAN
1 x 10/100/1000/2500Mbps M12 X-coded LAN Port, Intel® I226 GbE (support WOL)
Security
TPM 2.0: Infineon SLB9670VQ2.0 FW7.62
I/O Interface-Front
F1 ~ F5 functions key
Light sensor
Internal Mic-in
2 x Built-in 2W speaker
3 x LED indicators (power mode, storage, and WWAN status)
I/O Interface-Lateral
Left Side - 1 x Power button - 1 x System reset button - Volume up/down or brightness up/down
Right Side - 1 x microSD card socket - 1 x Slot for dual nano-SIMs - 1 x USB 3.2 Gen 2 Type-A connector - 1 x Mic in, Line out
I/O Interface-Rear
1 x 5-Pin circular connector for power/ignition input
1 x M12 X-coded LAN port
1 x DB15 (COM) - Full RS-232/RS-422/RS-485 - RS-232 - RS-485
1 x HDMI output
1 x DB15 (Multi Port) - 1 x USB 2.0 - 3 x GPI - 2 x GPO - 1 x Isolated CAN FD - PWM (speed) + Direction + GND
2 x SMA connector for WWAN
2 x SMA connector hole for WWAN
2 x RP-SMA connector for WLAN
1 x SMA connector for GNSS
Power Management
Power input 9~36VDC
Selectable boot-up & shut-down voltage for low power protection
HW design ready for 8-level delay time on/off at user's self configuration
Power on/off ignition, software detectable
Support S3 and S4 suspend mode
Mechanical
Cooling system: fanless
Enclosure: plastic with aluminum die casting heatsink
Mounting: VESA 75, stand mounting
Ingress protection: front panel IP54
Operating System
Windows 11/Windows 10/Linux
Dimensions
213.0mm (W) x 145.0mm (D) x 50.0 (H)
Weight
1.50kg
Environment
Operating temperatures: ambient with air -30°C to 60°C
Storage temperatures: -40°C to 80°C
Relative humidity: 90% (non-condensing)
Vibration (random) - 2g@5~500 Hz (in operation, eMMC)
Vibration (eMMC) - Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
