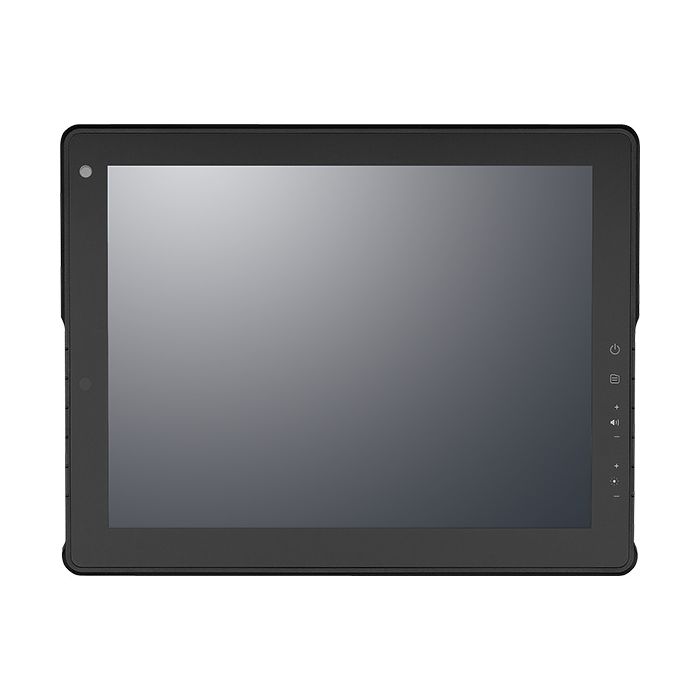

VMD3111 10.4” Vehicle Mount Display with High Brightness

Nexcom

10.4” XGA Vehicle Mounted Display with High brightness Touch Screen, HDMI Interface

Key Features:

  • 10.4” XGA TFT LCD panel
  • Slim bezel and compact design
  • Automatic/manual brightness control
  • Wide range power input from 9 ~ 36V DC
  • Projected capacitive touch screen with multi-touch
  • Support HDMI input to connect to a computer
  • High-brightness display for outdoor applications
  • Compliant with IP65

In stock

SKU
VMD3111-5PH

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VMD3111 10.4” Vehicle Mount Display with High Brightness

The VMD 3111 is a robust 10.4-inch TFT LCD monitor featuring enhanced brightness, a projected capacitive touchscreen, and high-performance loudspeakers. Its IP65-compliant design ensures durability, protecting the device from dust and water ingress in challenging environments. The VMD3111, featuring HDMI connectivity, provides drivers with real-time insights into optimal routes, traffic conditions, and dispatch assignments. This visual enhancement significantly contributes to the safety and efficiency of fleet management systems. With a 1200-nit ultra-high brightness display and adaptive brightness control, it is an ideal solution for in-vehicle and outdoor applications.



More Information

Brand Nexcom
Specifications

General

  • Enclosure: Plastic PC + ABS

  • Mounting: Support VESA 75/100

  • Power input: 9 ~ 36V DC

  • Ingress protection: IP65

  • Dimension: 256.5mm x 202.1mm x 31.5 mm

  • Weight: 1.67Kg

LCD Panel

  • 10.4-inch TFT LCD panel with LED backlight

  • 1024 x 768 pixels (XGA)

  • Brightness: 1200 cd/m²

  • Viewing angle: 170° (H):170°(V)

  • Contrast ratio: 1000:1 (typical)

Touch Screen Sensor

  • Projected capacitive touchscreen

  • Surface hardness: 6H

  • Anti-Glare coating

  • Multiple touch

  • Transmittance: ≥ 85%

I/O Interface-Front

  • 1 x LED indicator (Power on/off, Auto Back-light)

  • 2 x Built-in 1W 8ohm speaker

I/O Interface-Lateral

  • On-screen display buttons x 7
    - Display power on/off
    - OSD menu
    - Volume control (+/-)
    - Brightness control (+/-)
    - Auto-configuration (reserved)

I/O Interface-Bottom

  • Pigtail with multiple IO interface
    - 1 x HDMI
    - 1 x USB
    - 1 x Power input connector (9 ~ 36V DC)

Environment

  • Operating temperature: -30°C to 60°C

  • Storage temperature: -40°C to 80°C

  • Relative humidity: 90% (non-condensing)

  • Vibration (random)
    - 2g @ 5~500 Hz (in operation)

  • Vibration
    - Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test Shock
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

Standards/Certifications

  • CE

  • FCC Class B



Description

The VMD 3111 is a robust 10.4-inch TFT LCD monitor featuring enhanced brightness, a projected capacitive touchscreen, and high-performance loudspeakers. Its IP65-compliant design ensures durability, protecting the device from dust and water ingress in challenging environments. The VMD3111, featuring HDMI connectivity, provides drivers with real-time insights into optimal routes, traffic conditions, and dispatch assignments. This visual enhancement significantly contributes to the safety and efficiency of fleet management systems. With a 1200-nit ultra-high brightness display and adaptive brightness control, it is an ideal solution for in-vehicle and outdoor applications.
