Intel Atom x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
2GB / 4GB RAM, 32GB / 64G eMMC
PCAP Touch
10/100/1000 Ethernet (PXE Boot)
Touch button (Power/ Brightness/ Volume/ LED)
DC 12~24V Input or Powered LAN 802.3AT
NFC Reader
Smart Card Reader
AMIC
2.0MP Camera
Speak 4Ω 2.0W/2.5W(MAX)
LED Indicating Light Bar (Light colour: Green and Red, Illuminating area: 70*8mm(front),70*5mm(side))
75 x 75mm VESA Mount
In stock
SKU
VNS-15W01
Have a Question about this product?
Description /

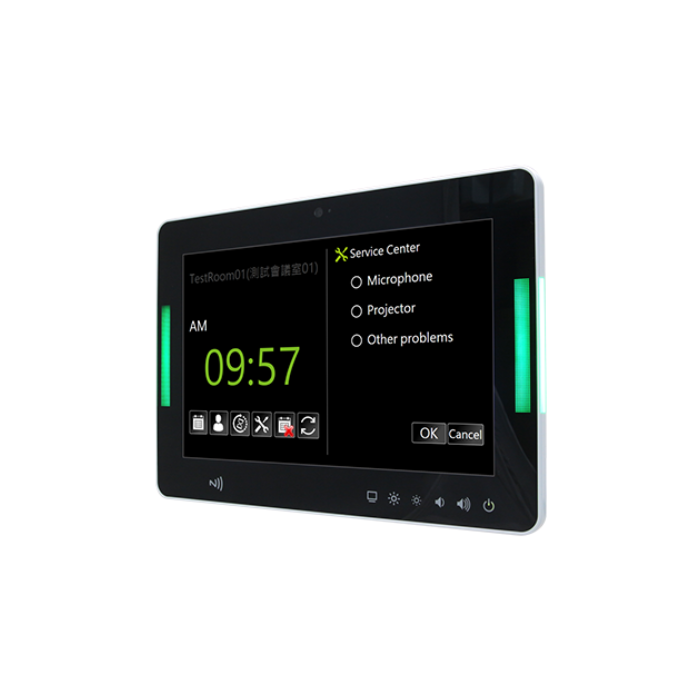

VNS-15W01 15.6" Ultra Slim Panel PC
The VNS-15W01 is an ultra-slim panel PC measuring only 28mm thick. It is based on the Intel® Atom™ x5-Z8350 Processor. The unit is available with 2GB or 4RAM together with a choice of 32 or 64GB onboard eMMC storage.
The VNS-10W01 can be powered by DC 12/24v or POE which greatly reduced the cost of field installation
Other features include an NFC reader, a 2MP camera and Green or Red LED light bar illumination.
It's the ideal solution for a range of applications such as point of information, Check-in terminal and Access Control
Key Features:
Intel Atom x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
2GB / 4GB RAM, 32GB / 64G eMMC
PCAP Touch
10/100/1000 Ethernet (PXE Boot)
Touch button (Power/ Brightness/ Volume/ LED)
DC 12~24V Input or Powered LAN 802.3AT
NFC Reader
Smart Card Reader
AMIC
2.0MP Camera
Speak 4Ω 2.0W/2.5W(MAX)
LED Indicating Light Bar (Light colour: Green and Red, Illuminating area: 70*8mm(front),70*5mm(side))
75 x 75mm VESA Mount
More Information
Brand
Avalue Technology Inc
Specifications
-System Information-
Processor
Intel® Atom™ x5-Z8350: 2M Cache, up to 1.92 GHz
Platform Controller Hub
Intel x5-Z8350
System Memory
2GB / 4GB DDR3L RAM
Storage
Storage
32GB eMMC / 64GB eMMC
Panel
LCD Size
15.6"
Resolution
1920x1080
Luminance
220
Viewing angle
178°(H/V)
Touch Type
PCAP
I/O
External I/O Connector
1 x RJ45 for RS232 or RS422 or RS485 2 x USB 2.0 Type A 1 x 10/100/1000 Ethernet 1 x 4-Pin 3.5mm Audio Jack
Internal I/O Connector
1 x Touch Button interface 1 x eDP & Dual channel 24bit LVDS 1 x I2C interface for PCAP 5 x USB interface for PCAP, Camera and others 1 x Micro USB2.0 client (reserved) 1 x Micro SD connector 2 x LED Bar interface 1 x AMIC
Windows 10 IoT (64 bit), Android 5.1(64 bit), Linux (64bit)
Ordering Information
Ordering Information
VNS-15W01-BV37C-1R_15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, Ubuntu 19.04 VNS-15W01-BV38C-1R _15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, 2016 Windows 10 IoT VNS-15W01-BV38C-3R_15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, 2019 Windows 10 IoT VNS-15W01-BV39C-1R _15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, Android 5.1 VNS-15W01-BW47C-1R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, Ubuntu 19.04 VNS-15W01-BW48C-1R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, 2016 Windows 10 IoT VNS-15W01-BW48C-3R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, 2019 Windows 10 IoT VNS-15W01-BW48C-5R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, 2019 Windows 10 IoT w/ Handset
Description
The VNS-15W01 is an ultra-slim panel PC measuring only 28mm thick. It is based on the Intel® Atom™ x5-Z8350 Processor. The unit is available with 2GB or 4RAM together with a choice of 32 or 64GB onboard eMMC storage.
The VNS-10W01 can be powered by DC 12/24v or POE which greatly reduced the cost of field installation
Other features include an NFC reader, a 2MP camera and Green or Red LED light bar illumination.
It's the ideal solution for a range of applications such as point of information, Check-in terminal and Access Control
Key Features:
Intel Atom x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
2GB / 4GB RAM, 32GB / 64G eMMC
PCAP Touch
10/100/1000 Ethernet (PXE Boot)
Touch button (Power/ Brightness/ Volume/ LED)
DC 12~24V Input or Powered LAN 802.3AT
NFC Reader
Smart Card Reader
AMIC
2.0MP Camera
Speak 4Ω 2.0W/2.5W(MAX)
LED Indicating Light Bar (Light colour: Green and Red, Illuminating area: 70*8mm(front),70*5mm(side))
