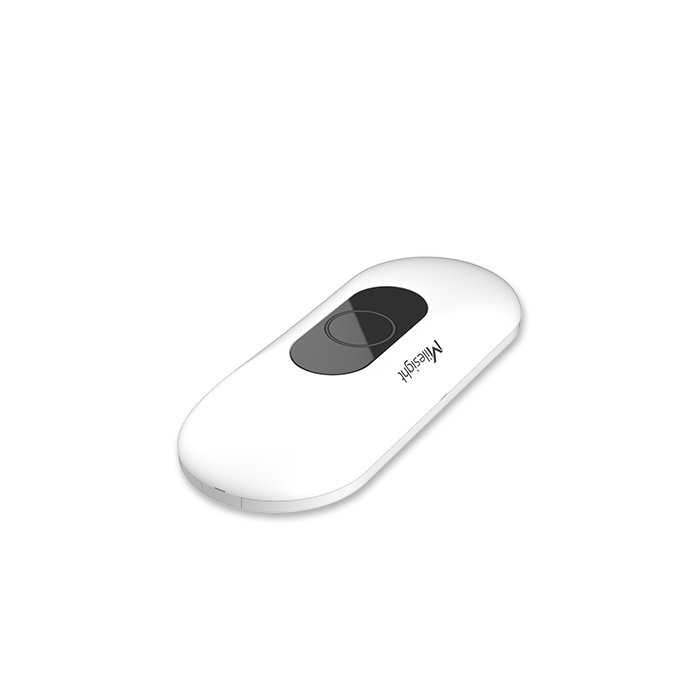

VS133 LoRaWAN AI ToF People Counting Sensor

Milesight IoT

LoRaWAN® VS133 AI ToF People Counting Sensor

Key Features

  • Up to 99.8% accuracy combining the 2nd generation ToF technology and AI algorithm
  • Allow to collect people counting data by differentiating between children and adults and detecting staffs via
    identification features for clearer people analysis
  • Wider field angle to obtain longer-distance depth maps and cover a larger area
  • Working well even in low-light or completely dark environments with great lighting adaptability
  • Free from privacy concerns without image capturing
  • Smart U-turn counting to filter redundant counting of people wandering in the area
  • High compatibility of data transmission either from LoRaWAN® or Ethernet port (HTTP/MQTT/CGI)
  • Various serial ports are equipped in the VS133 PoE version
  • 4GB flash storage to store a million counting data locally and securely
  • Easy configuration via Wi-Fi or Ethernet port for web GUI configuration
  • Function well with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud or Milesight DeviceHub

In stock

SKU
VS133

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VS133 LoRaWAN AI ToF People Counting Sensor

The VS133 is an advanced sensor that utilizes second-generation Time-of-Flight (ToF) technology to precisely count people. This technology offers enhanced depth mapping and longer detection distances while maintaining strong privacy protection. By leveraging the power of ToF and AI algorithms, the sensor can accurately handle complex scenarios and accurately differentiate non-human objects with an impressive accuracy rate of up to 99.8%.

The VS133 sensor seamlessly integrates with Milesight LoRaWAN® gateways and the Milesight IoT Cloud. Additionally, the PoE version, VS133-P, provides convenient Ethernet connectivity and various data transmission options. With its user-friendly installation process, the VS133 and VS133-P sensors are perfectly suited for retail stores, malls, offices, subways, and other locations where entrances or corridors need reliable and efficient people counting capabilities.

Key Features

  • Up to 99.8% accuracy combining the 2nd generation ToF technology and AI algorithm
  • Allow to collect people counting data by differentiating between children and adults and detecting staffs via
    identification features for clearer people analysis
  • Wider field angle to obtain longer-distance depth maps and cover a larger area
  • Working well even in low-light or completely dark environments with great lighting adaptability
  • Free from privacy concerns without image capturing
  • Smart U-turn counting to filter redundant counting of people wandering in the area
  • High compatibility of data transmission either from LoRaWAN® or Ethernet port (HTTP/MQTT/CGI)
  • Various serial ports are equipped in the VS133 PoE version
  • 4GB flash storage to store a million counting data locally and securely
  • Easy configuration via Wi-Fi or Ethernet port for web GUI configuration
  • Function well with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud or Milesight DeviceHub

More Information

brand Milesight IoT
Specifications

Model

VS133

VS133-P

People Counting



ToF FoV

98 ° Horizontal, 80 ° Vertical

ToF Light Beam

940nm (Invisible)

Measuring Accuracy

< 3.5cm

Detection Range

0.5 to 3.5 m

Installation Height

≤ 3.5m

Recognition Rate

Up to 99.8%

Advanced Feature

Customized Multiple Counting Lines, Filter U-turns, Bi-directional Counting, Children/Adults Differentiation, Staff Detection

LoRaWAN® Transmission



Protocol

LoRaWAN®

-

Frequency

CN470/IN865/RU864/EU868/US 915/AU915/KR920/AS923-1&2& 3&4

Tx Power

16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity

-137 dBm @300bps

Mode

OTAA/ABP Class C

Ethernet Transmission



Ethernet Port

-

1 Ă— RJ45 10/100 Mbps (PoE PD)

Network Protocol

HTTP, MQTT, NTP,etc.

Other Interfaces



Wi-Fi

IEEE 802.11 b/g/n, 2.4GHz
(AP Mode for configuration)

-

Alarm I/O

-

1/1

Serial Interface

-

1 Ă— RS485

Button

1 Ă— Wi-Fi/Reset Button

1 Ă— Reset Button

LED Indicators

1 Ă— RGB LED Indicator



Power Input

1 Ă— DC Jack Connector

-

Physical Characteristics



Local Storage

4GB Flash to store one million data

Power Supply

12VDC / 2A

802.3at PoE

Power Consumption

Typical 7.8 W, max 22.2 W

Typical 9.4 W, max 23.8 W

Operating Temperature

-20°C ~ +50°C

Relative Humidity

0 ~ 95% (Non-condensing)

Ingress Protection

IP40

Dimension

180 Ă— 26 Ă— 72 mm

Installation

Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket)

Installation Height (m)

Monitored Area (m)

Detection Area(m)

2.5

5.75 Ă— 4.20

1.84 Ă— 1.34

2.6

5.98 Ă— 4.36

2.07 Ă— 1.51

2.7

6.21 Ă— 4.53

2.30 Ă— 1.68

2.8

6.44 Ă— 4.70

2.53 Ă— 1.85

2.9

6.67 Ă— 4.87

2.76 Ă— 2.01

3.0

6.90 Ă— 5.03

2.99 Ă— 2.18

3.1

7.13 Ă— 5.20

3.22 Ă— 2.35

3.2

7.36 Ă— 5.37

3.45 Ă— 2.52

3.3

7.59 Ă— 5.54

3.68 Ă— 2.69

3.4

7.82 Ă— 5.71

3.91 Ă— 2.85

3.5

8.05 Ă— 5.87

4.14 Ă— 3.02
Description

The VS133 is an advanced sensor that utilizes second-generation Time-of-Flight (ToF) technology to precisely count people. This technology offers enhanced depth mapping and longer detection distances while maintaining strong privacy protection. By leveraging the power of ToF and AI algorithms, the sensor can accurately handle complex scenarios and accurately differentiate non-human objects with an impressive accuracy rate of up to 99.8%.

The VS133 sensor seamlessly integrates with Milesight LoRaWAN® gateways and the Milesight IoT Cloud. Additionally, the PoE version, VS133-P, provides convenient Ethernet connectivity and various data transmission options. With its user-friendly installation process, the VS133 and VS133-P sensors are perfectly suited for retail stores, malls, offices, subways, and other locations where entrances or corridors need reliable and efficient people counting capabilities.

Key Features

  • Up to 99.8% accuracy combining the 2nd generation ToF technology and AI algorithm
  • Allow to collect people counting data by differentiating between children and adults and detecting staffs via
    identification features for clearer people analysis
  • Wider field angle to obtain longer-distance depth maps and cover a larger area
  • Working well even in low-light or completely dark environments with great lighting adaptability
  • Free from privacy concerns without image capturing
  • Smart U-turn counting to filter redundant counting of people wandering in the area
  • High compatibility of data transmission either from LoRaWAN® or Ethernet port (HTTP/MQTT/CGI)
  • Various serial ports are equipped in the VS133 PoE version
  • 4GB flash storage to store a million counting data locally and securely
  • Easy configuration via Wi-Fi or Ethernet port for web GUI configuration
  • Function well with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud or Milesight DeviceHub
