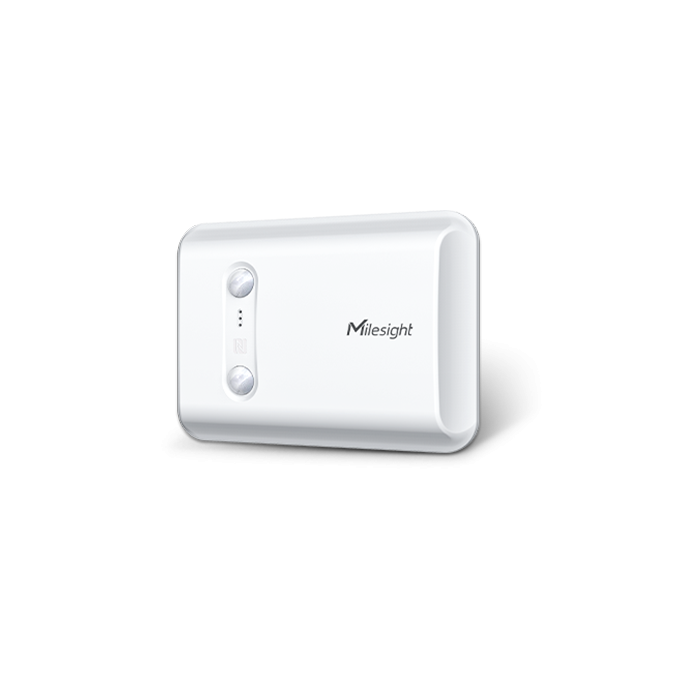

VS350 Passage People Counter

Milesight IoT

Count Smart, Spend Wise

Key Features:

  • LoRaWAN® Wireless Deployment

  • Flexible Bi-Directional People Counting

  • Cost-Effective Accuracy Performance

  • 100% Anonymous Detection

  • Large Detection Area

  • 4 Years Long Battery Life with High Report Frequency

  • Unique Milesight D2D Communication

  • Easy Installation

In stock

SKU
VS350

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VS350 Passage People Counter

Passage People Counting in A Cost-Effective Way

With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you cost-effectively track foot traffic.


Product Introduction


Solution



LoRaWAN® Wireless Deployment

Easy and convenient wireless deployment dispenses with being perplexed by network connection. The benefits of LoRaWAN® technologies guarantee low power consumption, long-distance transmission, deep penetration, and anonymous detection.



Bi-Directional People Counting

The Passage People Counter applies dual PIR sensors. It identifies the presence of people by detecting infrared radiation changes. Two PIR sensors work in tandem to detect moving directions determined by the signal waveform to differentiate bidirectional movements and realize clear two-way people counting.

More Information

brand Milesight IoT
Specifications

People Counting

Technology

Dual PIR

Installation Height

Ceiling Mount: ≤ 3.0m

Wall Mount: 1.2m~1.3m

Detection Range

Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m)

Wall Mount: Passage Width < 3.8 m

Detection Rate

Single Person1: Up to 95%

Multiple People: Up to 80%

Best Operating Temperature2

15 °C~32 °C

Bi-directional Counting

Support

Temperature

Range

-30°C ~ 70°C

Accuracy

± 0.5°C

Wireless Transmission

Protocol

LoRaWAN®, Milesight D2D

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz)

Sensitivity

-137dBm

Mode

OTAA/ABP Class A

Others

LED

1 × LED Indicator (Internal)

Button

1 × Reset Button (Internal)

Configuration

NFC Configuration via Mobile App

Advanced Feature

Data Storage, Data Retransmission, Milesight D2D Controller

Physical Characteristics

Power Supply

2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries

Battery Life3

Around 4 Years (10-min Interval, 25°C, 1000 People per Day )

Operating Temperature

-20°C ~ 60°C

Relative Humidity

0% - 95% (Non-condensing)

Ingress Protection

IP30

Dimension

100 x 70 x 21 mm ( 3.94 x 2.76 x 0.83in)

Material & Color

PC (Flame Retardant), White

Installation

Ceiling Mount, Wall Mount

1 40-50 cm should be kept between two people while passing the detection area.
2 The sensitivity of PIRs is greatly influenced by ambient temperature. And the most effective working temperature
range is +15 to +32 °C.
3 Tested under laboratory conditions and for guideline purposes only.
Description

Passage People Counting in A Cost-Effective Way

With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you cost-effectively track foot traffic.


Product Introduction


Solution



LoRaWAN® Wireless Deployment

Easy and convenient wireless deployment dispenses with being perplexed by network connection. The benefits of LoRaWAN® technologies guarantee low power consumption, long-distance transmission, deep penetration, and anonymous detection.



Bi-Directional People Counting

The Passage People Counter applies dual PIR sensors. It identifies the presence of people by detecting infrared radiation changes. Two PIR sensors work in tandem to detect moving directions determined by the signal waveform to differentiate bidirectional movements and realize clear two-way people counting.
