VTC1031/-C2 Atom x6413E Fanless In-Vehicle Computer
Intel Atom x6413E Fanless In-Vehicle Computer
Key Features:
Intel Atom x6413E quad-core processor, 9W
Compact and fanless design
5G NR and Wi-Fi 6/6E wireless communication options
Built-in U-Blox M9N GNSS, optional dead reckoning support
Built-in 1 x CAN bus 2.0B (optional SAE J1939)
Wide range DC input from 9~36V
2 x POE support, total 60W (VTC 1031-C2)
Dual display outputs
Optional AI accelerator M.2/mPCIe module
Certified by CE/FCC/E13 mark
In stock
SKU
VTC1031/-C2
Have a Question about this product?
Description /
VTC1031/-C2 Atom x6413E Fanless In-Vehicle Computer
Powerful Performance The VTC1031 is powered by the next-generation Intel Atom® x6413E quad-core processor, which is clocked at 1.5GHz and delivers enhanced graphics and multimedia performance.
Comprehensive Connectivity It comes equipped with onboard CAN 2.0B and offers an optional OBD interface (SAE J1939) for vehicle diagnostics and driver behaviour management. The device also features an advanced GNSS receiver that supports GPS+QZSS, GLONASS, Galileo, and Beidou, with an option for dead reckoning. For seamless connectivity, the VTC1031 supports WLAN (Wi-Fi 5/6/6E) and WWAN (LTE/5G NR) wireless data. Additionally, it includes dual micro-SIMs and one micro-SIM with an external access design, providing easy access to the cards.
AI Edge Computing With an optional AI accelerator via M.2 or mPCIe module, the VTC1031 is a reliable AI edge computing platform, enabling innovative in-vehicle AI solutions.
Rugged and Compact Design Its rugged, fanless, and compact enclosure ensures easy installation in various environments.
PoE and Power Output Features The VTC1031-C2 model includes dual IEEE802.3af/at PoE functions, making it ideal for connecting to most PoE devices, such as wireless access points and IP cameras. A 12VDC output is also available for powering external displays, with a straightforward power wire arrangement.
Versatile Application The VTC1031 is a versatile in-vehicle fanless computer that meets the diverse requirements of telematics applications, including wireless gateways, infotainment systems, fleet management, dispatching systems, AI edge computing, and mobile video surveillance.
More Information
brand
Nexcom
Specifications
CPU
Intel Atom x6413E quad-core processor, 1.5GHz, TDP 9W
Memory
1 x 260-pin DDR4 SO-DIMM socket support 3200MHz up to 32GB. Default 2666MHz, 4GB
With In-Band ECC (IBECC)
Video Output
1 x HDMI 1.4b up to 3840 x 2160@30Hz
1 x VGA port 1920 x 1200@60Hz
Storage
1 x 2.5” SATA 3.0 internal drive bay (9.5mm)
1 x M.2 key M 2280 for SATA 3.0
Expansion
1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 3042 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 1 x internal micro-SIM and 1 x external micro-SIM
1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)
1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 1 x internal micro-SIM and 1 x external micro-SIM
GNSS and Onboard Sensor
1 x Default U-Blox NEO-M9N GNSS module for GPS+QZSS/Glonass/Galileo/Beidou
Optional M8U/M8L modules with dead reckoning available
1-Port LAN RJ45, 10/100/1000 Mbps Ethernet, Marvell Ethernet PHY 88E1512
2-Port LAN RJ45, 10/100/1000 Mbps Ethernet, PoE 802.3af/at, max 60W (VTC 1031-C2)
Security
TPM 2.0: Infineon SLB9670VQ2.0 FW7.62

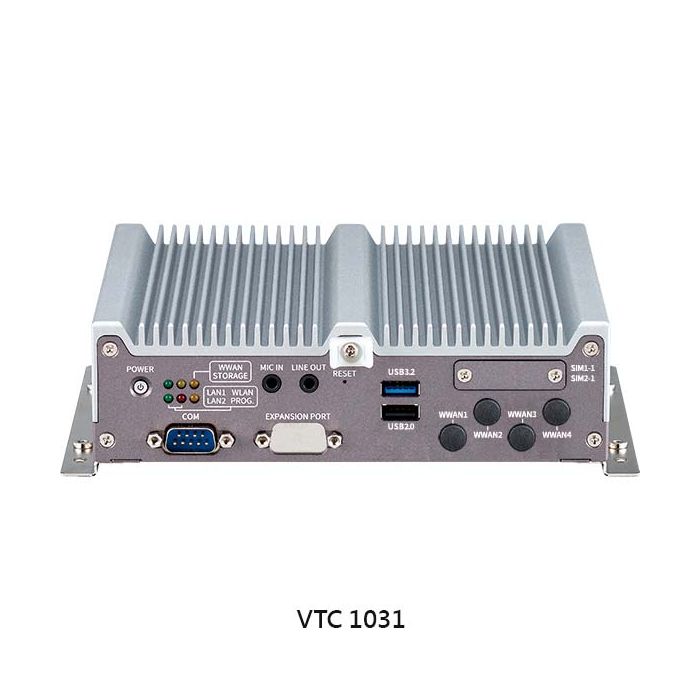

I/O Interface-Front
6 x LED indicators (including 1 x programmable LED)
1 x USB 3.2 Gen 2 type A (5V/0.9A)
1 x USB 2.0 type A (5V/0.5A)
1 x Externally accessible micro-SIM card sockets with cover
1 x Reset button
1 x Power button
1 x DB9 (COM) for full RS232/422/485
1 x Mic-in, 1 x Line-out
1 x DB9 for Expansion Port (optional)
2 x RJ45 PoE, including 2 x PoE LED light (VTC 1031-C2)
4 x SMA connector holes for WWAN (VTC 1031)
I/O Interface-Rear
1 x HDMI
1 x VGA
1 x LAN (LAN1) RJ45, 10/100/1000/2500 Mbps
1 x LAN (LAN2) RJ45, 10/100/1000 Mbps
2 x USB 2.0 type A (5V/0.5A)
1 x DB26 (MULTI-PORT) - 1 x Isolated CANBus 2.0B - 1 x RS232 Tx/ Rx - 1 x GNSS Speed/Direction - 5 x DI and 4 x DO - 2 x RS485 - 12V/ 2A DC output - GND
1 x 3-pin terminal block for power/ignition input
1 x SMA connector for GNSS
2 x SMA connector holes for WWAN
3 x RP-SMA connector holes for WLAN
Power Management & Software Support
Power input 9~36VDC
Cranking voltage: 6V~9V (< 30 seconds)
Reverse protection, OCP & UVP
Selectable boot-up & shut-down voltage for low power protection by software
Setting 8-level power on/off delay time by software
10~255 seconds WDT support, setup by software
SDK (Windows/Linux) including utility and sample code
Operating System
Windows 11/Windows 10/Linux
Dimensions
180mm (W) x 180mm (D) x 50mm (H)
Weight
VTC 1031: 1.91kg
VTC 1031-C2: 2.0kg
Environment
Operating temperatures - -40°C to 70°C (w/ industrial SSD) with air flow
Storage temperatures: -40°C to 85°C
Relative humidity: 90% (non-condensing)
Vibration (random) - 2g@5~500 Hz (in operation, SSD)
Vibration (SSD) - Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
