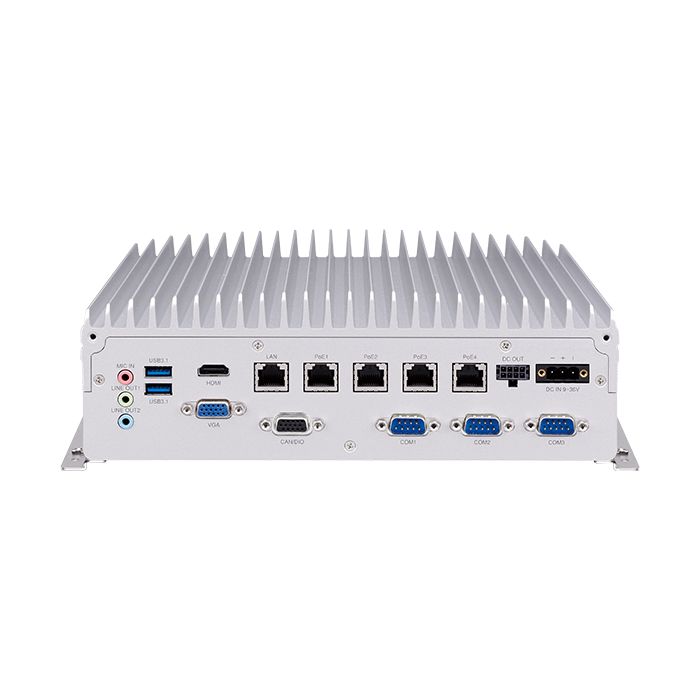

VTC7251-7C4 Fanless 4-CH PoE Vehicle Computer

Nexcom

Intel Core 8th Gen. i7-8700T, 2 x 4 GB industrial grade memory, VGA & HDMI output, 2 x external SSD, 1 x LAN, 4 x PoE 802.3af/at (total 60W), 4 x mini-PCIe slot, 1 x M.2 slot, 6 x external SIM, 6 x USB 3.1, 2 x RS232 (full), 1 x full RS232/422/485, 4 x DI & 4 x DO

Key Features:

  • Intel Core 8th Gen. desktop, i7-8700T, up to 4 GHz, 6 Core
  • 4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
  • 1 x VGA and 1 x HDMI video output
  • 2 x External SSD and 2 x mSATA (BIOS selection) for RAID 0, 1
  • 3 x WWAN module slot, each for 2 x external SIM socket
  • 4 x mini-PCIe slot and 1 x M.2 Key B slot
  • CE/FCC/E mark

In stock

SKU
VTC7251-7C4
$2,400.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VTC7251-7C4 Fanless 4-CH PoE Vehicle Computer

The NEXCOM VTC 7251-7C4 mobile surveillance system improves the operational efficiency of public transportation and service. Based on the 8th generation Intel Core processors i7-8700T, the VTC 7251-7C4 provides an integrated solution with high computing power, 4 independent PoE ports, wireless communication (3 x WWAN + 6 x SIM), and GNSS tracking with optional Dead Reckoning (DR) support to record in-vehicle activities, locations, high quality videos, driving patterns, and vehicle diagnostics for buses and patrol vehicles, achieving better safety and management measures.

Key Features:

  • Intel Core 8th Gen. desktop, i7-8700T, up to 4 GHz, 6 Core
  • 4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
  • 1 x VGA and 1 x HDMI video output
  • 2 x External SSD and 2 x mSATA (BIOS selection) for RAID 0, 1
  • 3 x WWAN module slot, each for 2 x external SIM socket
  • 4 x mini-PCIe slot and 1 x M.2 Key B slot
  • CE/FCC/E mark

More Information

Brand Nexcom
Specifications
CPU
  • Intel® Core™ 8th Gen. i7-8700T, up to 4 GHz, 35W, 6 Core
    - Compatible Intel® Core™ 9th Gen. (Coffee Lake Refresh)
Chipset
  • Intel® Q370 platform controller hub
Memory
  • 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory
Video Output
  • Chipset Intel® UHD Graphics 630
  • 1 x HDMI 1.4b up to 4096 x 2160 @ 30Hz
  • 1 x VGA up to 1920 x 1200 @ 60Hz
Storage
  • 2 x 2.5” SATA 3.0 external SSD (compatible with 15mm height), RAID 0/1 supported
  • 2 x mSTAT 3.0 (BIOS selection)
Expansion
  • 1 x M.2 3042/3050/3052 (default) Key B socket (USB 2.0, USB 3.1) for LTE/5G NR module with dual SIM
  • 1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM
    Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module
  • 1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM
    Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module
  • 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])
  • 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])
GNSS and On Board Sensor
  • 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
  • Optional modules with dead reckoning available
  • TPM 2.0 by Infineon SLB9665TT2
  • G Sensor (3-axis, 10-bit resolution)
Power over Ethernet
  • 4 x Independent LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W
  • 1 x LAN, 10/100/1000 Mbps I219 support iAMT and WOL
I/O Interface-Front
  • 20 x LED indicators (including 4 x programmable LED)
  • 4 x USB 3.1 type A (5V/1A)
  • 6 x Externally accessible SIM card sockets (4 x WWAN + 8 x SIM, BOM option)
  • 1 x Reset button
  • 1 x Power button with LED
  • 2 x 2.5” external SSD
  • 11 x SMA antenna hole (GPS/WWAN/WLAN)
I/O Interface-Rear
  • 4 x RJ45 PoE 802.3af/at, max. 60W
  • 1 x RJ45 LAN port, 10/100/1000 Mbps
  • 1 x 3-pin terminal block for 9V~36VDC
  • 1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI
  • 1 x Mic-in, 2 x Line-out
  • 2 x DB9 for full RS232
  • 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)
  • 1 x DB15
  • 1 x Isolated CANBus 2.0B
  • 1 x GPS DR (option)
  • 4 x DI and 4 x DO
  • 2 x USB 3.1 type A (5V/1A)
  • 1 x HDMI 1.4b
  • 1 x VGA
Power Management & Software Support
  • Power input 9~36VDC
  • Cranking voltage: 6V~9V (< 30 seconds)
  • Reverse protection, OCP & UVP
  • Selectable boot-up & shut-down voltage for low power protection by software
  • Setting 8-level power on/off delay time by software
  • 10~255 seconds WDT support, setup by software
  • SDK (Windows/Linux) including utility and sample code
Operating System
  • Windows 10
  • Linux
Dimensions
  • 260 x 256 x 83.5 (W x D x H) (mm)
Weight
  • 4.2kg
Environment
  • Operating temperatures
    - -30°C~60°C (w/ industrial SSD) with air flow
  • Storage temperatures: -40°C~80°C
  • Relative humidity: 90% (non-condensing)
  • Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)
  • Vibration (SSD)
    - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
  • Shock (SSD)
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications
  • CE approval
  • FCC Class A
  • E13 mark
Description

The NEXCOM VTC 7251-7C4 mobile surveillance system improves the operational efficiency of public transportation and service. Based on the 8th generation Intel Core processors i7-8700T, the VTC 7251-7C4 provides an integrated solution with high computing power, 4 independent PoE ports, wireless communication (3 x WWAN + 6 x SIM), and GNSS tracking with optional Dead Reckoning (DR) support to record in-vehicle activities, locations, high quality videos, driving patterns, and vehicle diagnostics for buses and patrol vehicles, achieving better safety and management measures.

Key Features:

  • Intel Core 8th Gen. desktop, i7-8700T, up to 4 GHz, 6 Core
  • 4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
  • 1 x VGA and 1 x HDMI video output
  • 2 x External SSD and 2 x mSATA (BIOS selection) for RAID 0, 1
  • 3 x WWAN module slot, each for 2 x external SIM socket
  • 4 x mini-PCIe slot and 1 x M.2 Key B slot
  • CE/FCC/E mark
