VTC1921-IP Atom x7211RE IP67 Telematics IoT Gateway

Nexcom

Intel Atom® x7211RE Telematics IoT Gateway with a Slim and Ruggedized Design

Key Features:

  • IP67 precision design to resist water and dust
  • Built-in CAN FD, 1 x CAN 2.0B
  • U-blox NEO-M9N onboard
  • Four SIM cards for WWAN modules
  • Smart power management with ignition on/off delay via software control and low voltage protection
  • 2 x PoE 802.3 af/at, max. total 30W (VTC1921-C2IP)
  • Certified by CE/FCC/E13 mark/EN50155/EN45545-2

In stock

SKU
VTC1921-IP/VTC1921-C2IP

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VTC1921-IP Atom x7211RE IP67 Telematics IoT Gateway

VTC 1921-IP/C2IP, a waterproof entry-level vehicle computer with Intel Atom® x7211RE (1.0GHz) processor, is designed for wet, dirty, and harsh environments. Precision-engineered to IP67 standards, it resists water and dust and complies with the stringent MIL-STD-810H military standard. Its rugged, fanless, and compact design, combined with its lightweight form factor, makes it ideal for vehicles with limited space, without sacrificing performance or features.



VTC 1921-IP/C2IP features onboard CAN FD and CAN 2.0B for vehicle diagnostics and driver behaviour management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. Additionally, VTC 1921-IP/C2IP offers WLAN and WWAN wireless data and voice connectivity. With four external SIM sockets, it can support better connectivity quality through software optimization. The VTC 1921-C2IP provides dual IEEE8023af/at PoE functions, making it compatible with most PoE devices. Its flexibility allows it to meet various telematics application demands, including IoT gateway, infotainment, fleet management, and dispatching systems.



More Information

brand Nexcom
Specifications

CPU

  • Intel Atom® processor dual-core x7211RE/1.0GHz

Memory

  • 1 x DDR4 3200 SO-DIMM, up to 32GB, default 4GB

Storage

  • 1 x mSATA (occupy one mPCIe slot)

  • 1 x 2.5” SSD (VTC1921-IP only)

  • 1 x M.2 Key M 2280 for SATA 3.0
    (on daughter board of VTC1921-C2IP)

Expansion

  • 1 x Mini PCIe slot (USB 2.0, PCIe 3.0)

  • 1 x M.2 Key B 3042/3050/3052 (USB 2.0, USB 3.2 Gen 2)
    - Support LTE/ 5G NR module with 2 x external nano-SIM

  • 1 x M.2 2230 Key E (USB 2.0, PCIe 3.0) for Wi-Fi

Function

  • 1 x U-blox NEO-M9N onboard
    - Support GPS/Glonass/QZSS/Galileo/ BeiDou

  • Built-in 3D accelerometer and 3D gyroscope

  • TPM 2.0

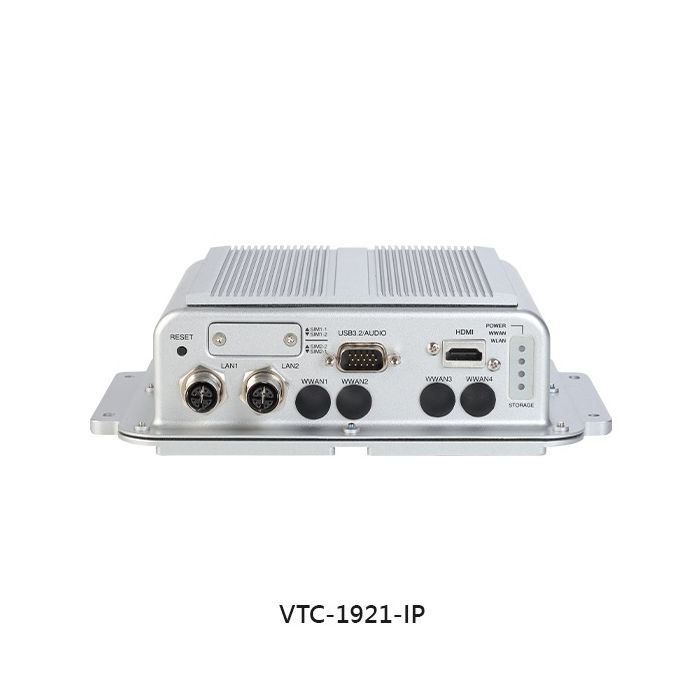

I/O Interface-Front

  • 4 x LED for power, WWAN, Wi-Fi, storage

  • 4 x nano-SIM socket with cover

  • 2 x 2.5GbE M12 A-code port (only one LAN in VTC1921-C2IP)

  • 1 x DB15 connector (male, waterproof)
    - 1 x USB 3.2
    - 1 x Mic in (L/R)
    - 1 x Line out (L/R)

  • 1 x HDMI (waterproof)

  • 4 x Antenna hole for WWAN

I/O Interface-Rear

  • 1 x M12 circular power connector (ignition, power, GND)

  • 1 x M12 A-coded connector (Multi1 port)
    - 2 x RS-232 (TX/RX)
    - 1 x RS-485 (TX/RX)
    - 4 x DI, 4 x DO

  • 1 x M12 A-coded connector (Multi2 port)
    - 1 x USB 2.0
    - 1 x CAN FD (w/ isolation)
    - 1 x CAN 2.0B (w/ isolation)
    - 1 x DR

  • 5 x Antenna holes for WWAN/WLAN/GPS

  • 2 x 2.5GbE M12 X-coded PoE port, 802.3af/at, total up to 30W
    (VTC1921-C2IP only)

Operating System

  • Windows 10, 64bit

  • Windows 11

  • Linux 4.x

Dimensions

  • 185mm (w) x 167mm (D) x 56.5mm (H) (7.28” x 6.57” x 2.22”)

  • Weight: 1.1kg (2.42bs)

Environment

  • Temperature
    - Operating temperatures: -40°C~70°C for vehicle
    - Operating temperatures: -40°C~70°C (OT4) for railway
    - Storage temperatures: -40°C~85°C
    - Damp heat test per EN60068-2-30

  • Humidity
    - IEC60068-2-78, damp heat steady state test, 40°C, 95%, 48Hrs

  • Vibration
    - IEC 60068-2-64, 2G
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24

  • Shock
    - MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g
    - Crash hazard: Procedure V, ground equipment=75g

Certifications

  • CE

  • FCC Class A

  • E13

  • EN50155

  • EN45545-2
Description

VTC 1921-IP/C2IP, a waterproof entry-level vehicle computer with Intel Atom® x7211RE (1.0GHz) processor, is designed for wet, dirty, and harsh environments. Precision-engineered to IP67 standards, it resists water and dust and complies with the stringent MIL-STD-810H military standard. Its rugged, fanless, and compact design, combined with its lightweight form factor, makes it ideal for vehicles with limited space, without sacrificing performance or features.



VTC 1921-IP/C2IP features onboard CAN FD and CAN 2.0B for vehicle diagnostics and driver behaviour management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. Additionally, VTC 1921-IP/C2IP offers WLAN and WWAN wireless data and voice connectivity. With four external SIM sockets, it can support better connectivity quality through software optimization. The VTC 1921-C2IP provides dual IEEE8023af/at PoE functions, making it compatible with most PoE devices. Its flexibility allows it to meet various telematics application demands, including IoT gateway, infotainment, fleet management, and dispatching systems.
