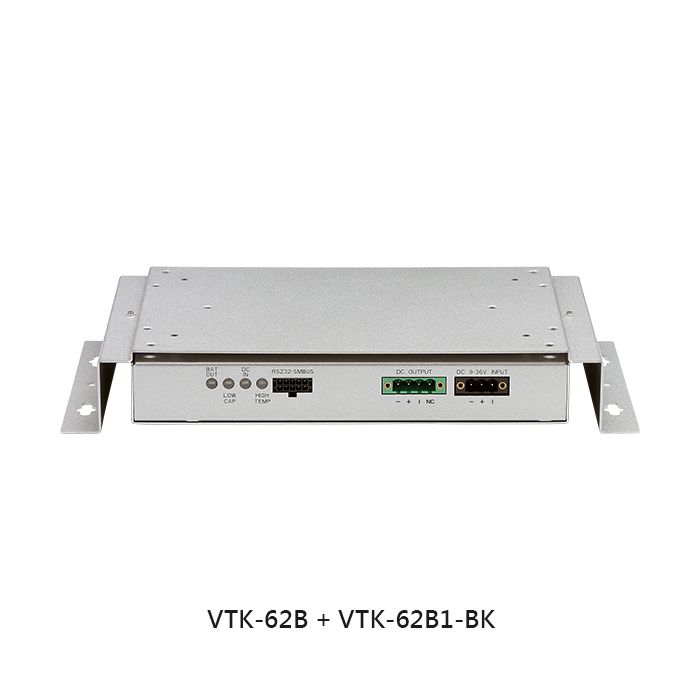

VTK-62B - Vehicle UPS

Smart UPS Kit for In-Vehicle Application

In stock

SKU
VTK-62B
$575.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VTK-62B - Vehicle UPS

The VTK-62B is an intelligent rechargeable Lithium-ion battery kit designed to provide an uninterrupted power with a built-in battery management system. Designed to use with NEXCOM vehicle/railway computers with enhanced charge/discharge efficiency it is avail with various mounting brackets to suit. Connected via RS-232 and SMBus interface, VTK-62B can provide crucial information about the status of battery.



·         Smart UPS for in-vehicle application

·         Big battery capacity 9000 mAh

·         Lithium-ion rechargeable cell

·         Real-Time battery status availability

·         SDK for software development

·         RS-232/SMBus for communication

·         Power off delay time setting



More Information

Specifications
Power Input 9~36VDC
Voltage Out 10.8VDC, max 80W
Battery Type Lithium-ion
Capacity 9000mAh +/-5%
Smart Battery Status Information Input voltage Battery capacity Battery temperature Discharge/charge/stop status Bttery failure The value of delay off timer
I/O Interface 1 x 3-pin terminal block (optional M12 connector) for GND, V-In and Ignition 1 x 4-pin terminal block (optional M12 connector) for GND, V-Out and Ignition 1 x 10-pin connector RS232 (TX/RX) SMBus 2 x DO GND 4 x LED indicators Back-up battery power output Capacity alarm Temperature alarm Power in
Dimensions VTK-62B + VTK-62B1-BK, 280 (W) x 150 (D) x 42.2 (H) mm VTK-62B + VTK-62B2-BK, 297.3 (W) x 175 (D) x 39 (H) mm
Environment Operation temperature
- Charging: 0~45°C
- Discharging: 0~55°C Vibration
- 2G, 5~500Hz (in operation)
- Operation: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle Highway Truck
- Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity test Shock
- Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g
- Crash Hazard: MIL-STD-810F, Method 516, Procedure V, Ground equipment=75g
Certification CE/FCC class A
Description

The VTK-62B is an intelligent rechargeable Lithium-ion battery kit designed to provide an uninterrupted power with a built-in battery management system. Designed to use with NEXCOM vehicle/railway computers with enhanced charge/discharge efficiency it is avail with various mounting brackets to suit. Connected via RS-232 and SMBus interface, VTK-62B can provide crucial information about the status of battery.



·         Smart UPS for in-vehicle application

·         Big battery capacity 9000 mAh

·         Lithium-ion rechargeable cell

·         Real-Time battery status availability

·         SDK for software development

·         RS-232/SMBus for communication

·         Power off delay time setting
