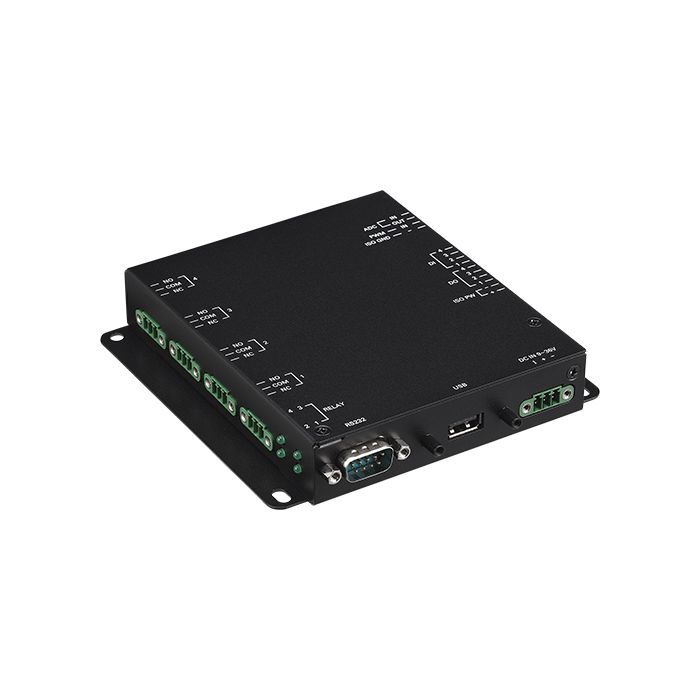

VTK-Relay - Vehicle Relay I/O module
Super Slim and Ruggedized Vehicle Relay Module
In stock
- SKU
- VTK-Relay
Have a Question about this product?
Description / VTK-Relay - Vehicle Relay I/O module
4 x Form C relay with 10A @12VDC/5A @24VDC
4 x Isolated digital inputs
4 x Isolated digital outputs
1 x Analog input and 1 x frequency input
Various communication interface of RS-232 and USB 2.0
Wide range DC input from 9~36V
Wide operating temperature -40°C~70°C
Compatible with CE, FCC class B
More Information
| Specifications | Relay Output Channel: 4 channels Type: Form C Connector: 3 x plug-in terminal blocks Contact current rating: 10A @12VDC/5A @24VDC Digital Input Channel: 4 channels Sensor type: wet contact (default)/dry contact I/O mode: DI Wet contact: 9 to 36V, 12V @ 1.1mA/24V @ 2.2mA Dry contact: external 0 to 36V Wet or dry contact should be selected by SW utility Digital Output Channel: 4 channels Sensor type: wet contact (default)/dry contact I/O mode: DO Wet contact: 9 to 36V, 9V @13.2mA/12V @17.6mA/24V @25.29 mA/ 36V @52.7mA Dry contact: external 0 to 36V Wet or dry contact should be selected by SW utility Analog Input Channel: 1 channel Resolution: 10 bits I/O mode: voltage/current input Input range: 0 to 36V, 0 to 3A Frequency Input Channel: 1 channel I/O mode: frequency (PWM) input Input frequency range: 2Hz to 6KHz Power Requirements Input voltage: 9 to 36 VDC Input current: 70mA @12 VDC I/O Interface-Relay Side 4 x Relay’s 3 plug-in terminal blocks for N.O./COM/N.C. 4 x LED indicator for activated relays 1 to 4 I/O Interface-IO Side 1 x DB9 for RS-232 1 x Type A USB 2.0 1 x DC input 9~36V (3 plug-in terminal block for VIN/IGN/GND) |
|---|---|
| Description |
4 x Form C relay with 10A @12VDC/5A @24VDC 4 x Isolated digital inputs 4 x Isolated digital outputs 1 x Analog input and 1 x frequency input Various communication interface of RS-232 and USB 2.0 Wide range DC input from 9~36V Wide operating temperature -40°C~70°C Compatible with CE, FCC class B |
