VTK-SCAP In-Vehicle/Rail SuperCap UPS

Nexcom

SuperCap UPS for In-Vehicle/Railway Application Vehicle Relay

Key Features:

  • SuperCap UPS for in-vehicle/Railway application
  • High power density EDLC (Electric Double Layer Capacitor) technology
  • Over 500,000 cycle life (charging/discharging)
  • Operating Temperature: -35~80°C
  • SDK for software development
  • RS232 for communication
  • Max. expansion 1 x master + 3 x slave

In stock

SKU
VTK-SCAP-x

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VTK-SCAP In-Vehicle/Rail SuperCap UPS

The VTK-SCAP is a high-performance rechargeable UPS designed for NEXCOM vehicles and railway computers. It offers uninterrupted power and a sophisticated power management system. With enhanced charge/discharge efficiency and an RS232 interface for status monitoring, VTK-SCAP provides reliable backup power. It can deliver a maximum output power of 200W. In expansion mode (1 x VTK-SCAP-M + 3 x VTK-SCAP-S), VTK-SCAP can support a 60W system for up to 6 minutes. VTK-SCAP is suitable for extreme environments, leveraging supercapacitor technology, and operating reliably from -35°C to 80°C.



More Information

brand Nexcom
Specifications

Power Input
  • 9~60VDC

Power Output
  • 24VDC

Composition
  • 3.0V, 500F supercapacitor

Capacity
  • Approx. 90 seconds endurance for 60W @ 55°C,
    Approx. 36 seconds endurance for 60W @ 80°C
  • Maximum output power of 200W

SuperCap UPS Status Information
  • Input voltage
  • UPS health (Good/Error)
  • UPS status (Full/Charging/Discharging)
  • UPS temperature
  • UPS capacity
  • Ignition status/Ignition delay on timer

I/O Interface-Front
  • VTK-SCAP-M (In-vehicle)
    - 8-LEDs for power source, slave power, temp, power in
    - RS232 for UART
    - 1 x 5-pin terminal block DC input
    - 1 x 6-pin terminal block DC output
  • VTK-SCAP-AR-M (Railway)
    - 8-LEDs for power source, slave power, temp, power in
    - RS232 for UART
    - 1 x 2-pin terminal block for IGN
    - 1 x M12 K-code male DC input
    - 1 x M12 A-code female DC output

I/O Interface-Rear
  • VTK-SCAP-M (In-vehicle) & VTK-SCAP-AR-M (Railway)
    - 3 x [2 x 5 pin] connector for backup power expansion (slave power box)
  • VTK-SCAP-S (Slave for expansion)
    - 1 x [2 x 5 pin] connector to link to the master power box

Dimensions

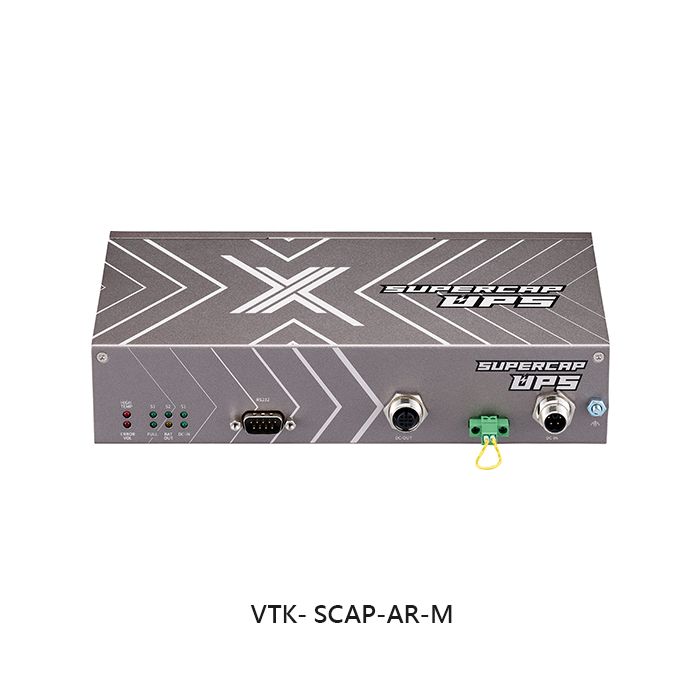

  • VTK-SCAP-M, VTK-SCAP-AR-M, 235mm (W) x 134.5mm (D) x 50mm (H)
  • VTK-SCAP-S, 235mm (W) x 134.5mm (D) x 50mm (H)

Environment
  • Operation temperature:
    - Charging: -35~80°C
    - Discharging: -35~80°C (max. 60W), -35~70°C (max. 200W)
  • Storage temperature
    -40~85°C
  • Vibration
    - IEC 60068-2-64, 2G
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24
  • Shock
    - MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

Certifications
  • CE/FCC class A (VTK-SCAP-M, VTK-SCAP-AR-M, VTK-SCAP-S)
  • E13 mark (VTK-SCAP-M & VTK-SCAP-S)
  • EN50155 (VTK-SCAP-AR-M & VTK-SCAP-S)
