Description / WAFER-KBN-i1 3.5” SBC supports AMD Embedded G-Series SoC

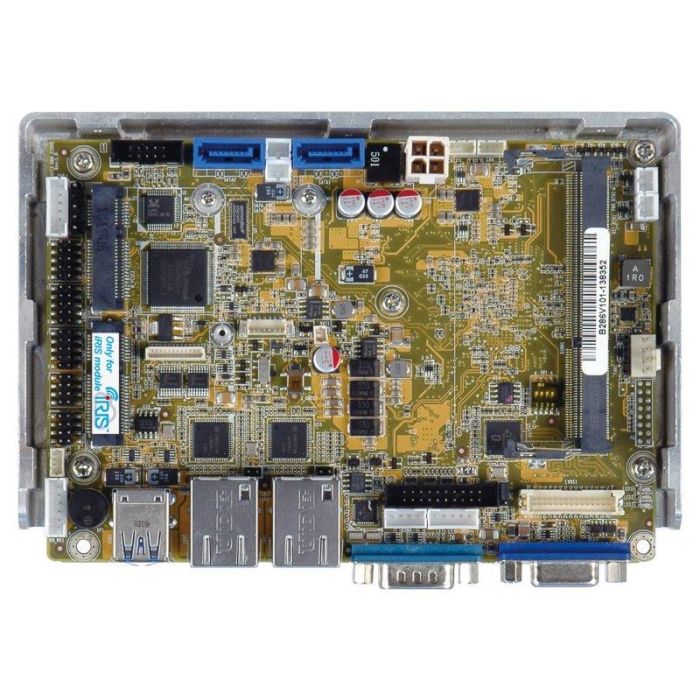

3.5” SBC supports AMD® Embedded G-Series SoC

· 3.5” form factor with AMD® Embedded G-Series SoC

· 12V only single voltage design with AT/ATX mode

· 18/24-bit dual-channel LVDS for high resolution panel

· Dual independent display by VGA, LVDS and iDP

· Support IPMI 2.0 with iRIS-1010 module

· Support full-size PCIe Mini card slot for mSATA, wireless card and DOM

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	N/A
Display
Display	VGA (up to 2048x1536@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	0°C ~ 60°C
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)
I/O Interface
Audio	Realtek AL892 HD Audio codec 1 x S/PDIF by 4-pin (1x4) header for digital audio 1 x Analog audio (2x5 pin)
Digital I/O	1 x 8-bit digital I/O (2x5 pin)
Ethernet	LAN1: Intel® I210-AT PCIe controller with NCSI support LAN2: Intel® I211-AT PCIe controller
I/O Interface
I/O Interface	2 x Internal RS-232
	1 x RS-232
	2 x USB 3.0
	1 x RS-422/485
	4 x Internal USB 2.0
Option
iRIS	1 x iRIS-1010 slot
Power
Power consumption	+12V@2.12A (AMD GX-415GA 1.5GHz CPU with one 4GB 1333 MHz DDR3 memory)
Storage
Storage	2 x SATA 3Gb/s with 5V SATA power connector
System
CPU	AMD® Embedded G-Series SoC GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W) GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W) GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W) GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W)
CPU Socket	On Board
Memory Max.	One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM SO-DIMM slot supports up to 8GB
Watchdog Timer
Watchdog Timer	Software programmable, support 1~255 sec. system reset
