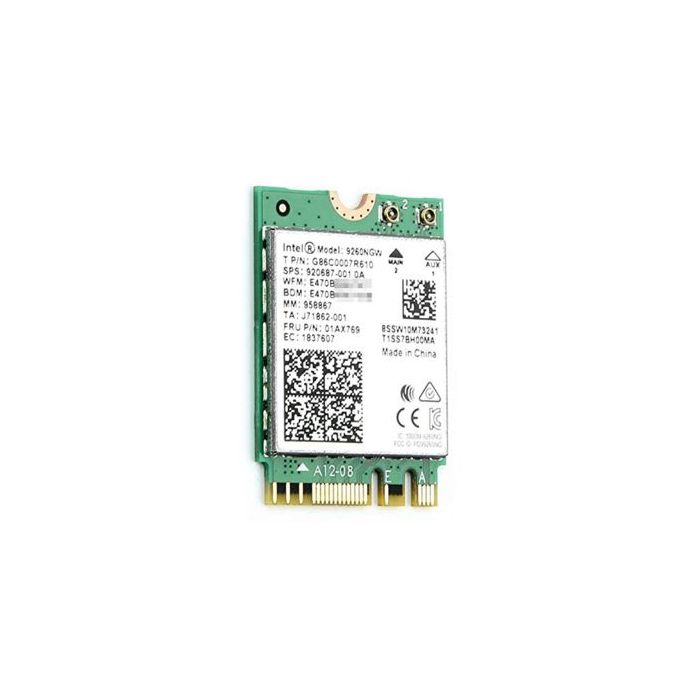

Wireless-AC 9260 Adapter 5th Gen Intel 802.11a

Intel Wireless-AC 9260 5th Generation Intel 802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth 5.1

In stock

SKU
WLAN 9260.NGWG
$50.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / Wireless-AC 9260 Adapter 5th Gen Intel 802.11a

The Intel Wireless-AC 9260 adapter supports Bluetooth 5.1 and 2x2 802.11ac Wi-Fi, featuring wave 2 capabilities including 160MHz channels, up to 1.73Gbps throughput, and downlink MU-MIMO. When compared to traditional 802.11ac devices, these new capabilities offer a substantial improvement in user speeds in dense installations, allowing for faster downloads and longer battery life. The Intel Wireless-AC 9260, when combined with Intel Core processors and Intel wireless technologies, can deliver Gigabit download speeds and drastically improve your connected experience.

More Information

Specifications

General:

  • Dimensions
    • (H x W x D) M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]
    • M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
  • Weight
    • M.2 2230: 2.9 +/– 0.3 g
    • M.2 1216: 0.61 +/– 0.1 g
  • Antenna Diversity: Supported
  • Radio ON/OFF Control: Supported
  • Connector Interface: M.2: PCIe*, USB
  • Operating Temperature (Adapter Shield): 0°C to +80°C
  • Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
  • Operating Systems: Microsoft Windows 10, Linux (limited feature support), Chrome OS
  • Wi-Fi Alliance: Wi-Fi CERTIFIED a/b/g/n/ac with wave 2 features, WMM, WMM-PS, WPA2, WPA3, WPS2, Protected Management Frames, Wi-Fi Miracast as Source, and Wi-Fi Direct (For Microsoft Windows only)
  • IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k, 802.11v pending OS support; Fine Timing Measurement based on 802.11REVmc
  • Roaming: Supports seamless roaming between access points
  • Bluetooth: Bluetooth 5.1

Security:

  • Authentication: WPA2 and WPA3, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-AKA)
  • Authentication Protocols: PAP, CHAP, TLS, MS-CHAP, MS-CHAPv2
  • Encryption: 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 128-bit and 256-bit AES-GCMP
  • Wi-Fi Direct Encryption and Authentication: WPA2-PSK, AES-CCMP

Compliance:

  • Regulatory: For a list of country approvals, please contact your local Intel representatives.
  • US Government: FIPS, FISMA
  • Product Safety: UL, C-UL, CB (IEC 60950-1)
Description

The Intel Wireless-AC 9260 adapter supports Bluetooth 5.1 and 2x2 802.11ac Wi-Fi, featuring wave 2 capabilities including 160MHz channels, up to 1.73Gbps throughput, and downlink MU-MIMO. When compared to traditional 802.11ac devices, these new capabilities offer a substantial improvement in user speeds in dense installations, allowing for faster downloads and longer battery life. The Intel Wireless-AC 9260, when combined with Intel Core processors and Intel wireless technologies, can deliver Gigabit download speeds and drastically improve your connected experience.
pdf
Datasheet
