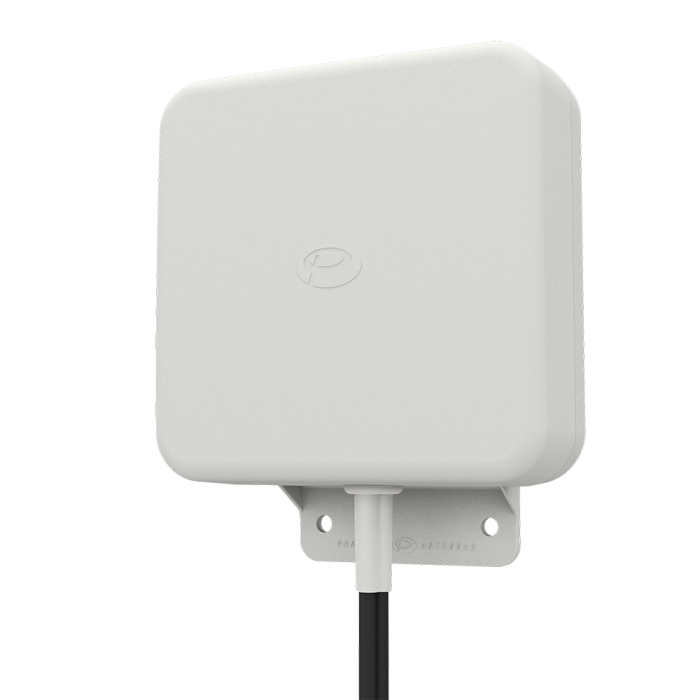

WMM4-7-49 4x4 MiMo Omnidirectional Wall / Mast Antenna

Panorama Antennas

Provides a 4x4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz

Key Features:

  • 4×4 MiMo 4G/5G
  • 698-960/1710-4900MHz
  • Compact housing
  • Wall or mast mounting
  • Integrated low-loss coaxial cable

In stock

SKU
WMM4-7-49-xxxxx

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / WMM4-7-49 4x4 MiMo Omnidirectional Wall / Mast Antenna

The WMM4-7-49 antenna provides a 4x4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz. Incorporating four separately fed, ultra-wideband elements within an IP-rated compact housing, the WMM4-7-49 is suitable for a wide range of 4G Cat 18/20 and 5G fixed site and failover applications.

Key Features:

  • 4×4 MiMo 4G/5G
  • 698-960/1710-4900MHz
  • Compact housing
  • Wall or mast mounting
  • Integrated low-loss coaxial cable

More Information

brand Panorama Antennas
Specifications
ELECTRICAL DATA
Pattern Omnidirectional
Max Input Power(W) 10
Typical VSWR <3:1
Frequency Range | Gain 698 – 960MHz | ; 1710 – 4900MHz |
Cellular LTE Elements 4 x 4 MIMO
WIFI Elements No
UHF Elements No
GPS DATA
Number of GPS Elements No
MECHANICAL DATA
Colour White
Length 155 (mm) | 6.10 (in)
Width 155 (mm) | 6.10 (in)
Height 75 (mm) | 2.95 (in)
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft)
Cable Type (LTE) CS29
TERMINATION DATA
Connector (LTE) N (f); FAKRA D; SMA (m)
MOUNTING DATA
Mounting Type Fixed Mast; Wall
Mounting Methods Mast; Wall; Pole
APPROVALS DATA
IP Rating IP55
TECHNOLOGY DATA
Technology 4G/5G; 5G; 2G/3G/4G; CBRS
Description

The WMM4-7-49 antenna provides a 4x4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz. Incorporating four separately fed, ultra-wideband elements within an IP-rated compact housing, the WMM4-7-49 is suitable for a wide range of 4G Cat 18/20 and 5G fixed site and failover applications.

Key Features:

  • 4×4 MiMo 4G/5G
  • 698-960/1710-4900MHz
  • Compact housing
  • Wall or mast mounting
  • Integrated low-loss coaxial cable
