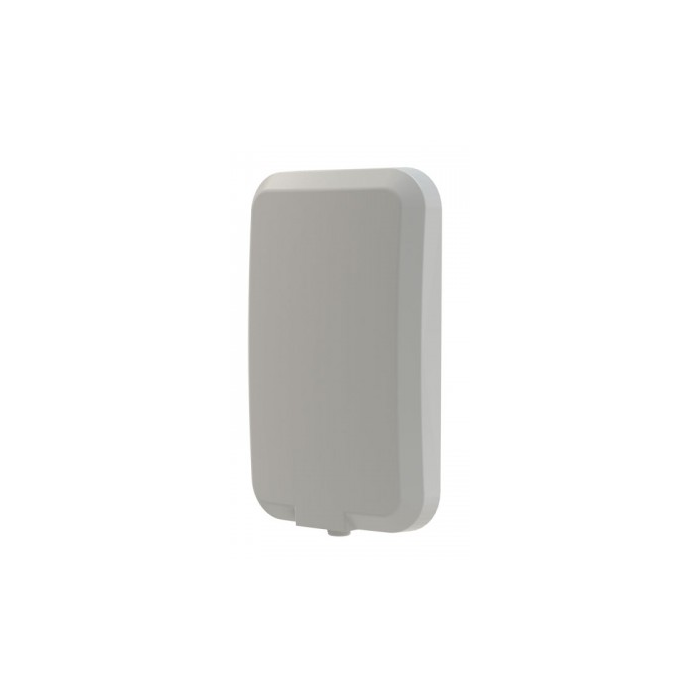

Shop WMM4G-6-60 - 4x4 MiMo 4G/5G Directional Antenna

Supports full Cat18 (617-960/1710-6000MHz) 4x4 MiMo 4G/5G

High Directional gain 6-9dBi

Wall Mount or Mast Mount

Ideal for Branch Networks and Failover

In stock

SKU: WMM4G-6-60-5SP - 4x4 MiMo 4G/5G Directional Antenna 5m SMA M

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / WMM4G-6-60 - 4x4 MiMo 4G/5G Directional Antenna

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

More Information

Specifications	Electrical Data Frequency range (MHz) 4x 4x 617-960/1710-6000 Operational bands 4x 4G/5G Radiation pattern Directional Nominal polarisation +/- 45deg / Vertical Peak gain (excl cable loss)+ 617-960MHz 6dBi 1710-6000MHz 9dBi Effi ciency - excluding cable loss (all bands) > 60% Correlation co-effi cient ( all bands) < 0.2 Max input power (W) 20 Watts Nominal impedance 50Ω Mechanical Data Dimensions (mm) Height 507 (19.96”) Width 307 (12.01”) Depth 85 (3.34”) Operating temp (°C) -40° / +80°C (-40° / 176°F) Material ASA Colour White IP Rating IP66 Radome material certifi cations UL94-HB, UL746C-f2 Weight (g) 5100 Survival wind speed (m/s) 55 Typical wind load @ 45 m/s (N) 200 Mounting Data Fixing wall mount / fl ush wall mount /mast mount Mounting bracket material Coated steel / Aluminium / Stainless Steel Pole diameter (mm) 20-50 / (0.78 - 1.96”) Cable & Connector Data Cable Type CS32 FRZH (Meets EN6722 / EN45545-2) Diameter (mm) 5 (0.2”) Length (m) 5 (16.4’) Connector SMA(m) x 4
Description	The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

Specifications

Electrical Data
Frequency range (MHz) 4x 4x 617-960/1710-6000
Operational bands 4x 4G/5G
Radiation pattern Directional
Nominal polarisation +/- 45deg / Vertical
Peak gain
(excl cable loss)+
617-960MHz 6dBi
1710-6000MHz 9dBi
Effi ciency - excluding cable loss (all bands) > 60%
Correlation co-effi cient ( all bands) < 0.2
Max input power (W) 20 Watts
Nominal impedance 50Ω
Mechanical Data
Dimensions (mm)
Height 507 (19.96”)
Width 307 (12.01”)
Depth 85 (3.34”)
Operating temp (°C) -40° / +80°C (-40° / 176°F)
Material ASA
Colour White
IP Rating IP66
Radome material certifi cations UL94-HB, UL746C-f2
Weight (g) 5100
Survival wind speed (m/s) 55
Typical wind load @ 45 m/s (N) 200
Mounting Data
Fixing wall mount / fl ush wall mount /mast mount
Mounting bracket material Coated steel / Aluminium / Stainless Steel
Pole diameter (mm) 20-50 / (0.78 - 1.96”)
Cable & Connector Data
Cable Type CS32 FRZH (Meets EN6722 / EN45545-2)
Diameter (mm) 5 (0.2”)
Length (m) 5 (16.4’)
Connector SMA(m) x 4
