IoT Weather Station (WTS Series) is an all-in-one LoRaWAN® weather monitoring system for various atmospheric conditions
In stock
SKU
WS305/WTS505/WS506
Have a Question about this product?
Description /

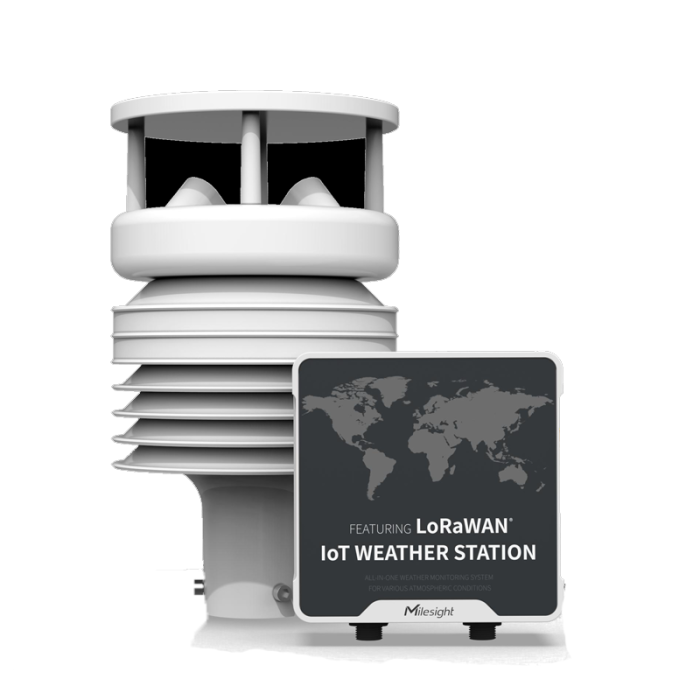

WTS Series LoRaWAN IoT Weather Station
The IoT Weather Station (WTS Series) is an all-in-one LoRaWAN weather monitoring device for temperature, humidity, wind speed, wind direction, barometric pressure, and rainfall. IoT Weather Station is made up of 2 main components: WTS sensors and WTS Hub. It is made to survive the worst weather conditions and is simple to instal in a variety of settings for use in meteorology, smart agriculture, smart buildings, etc.
The LoRaWAN technology is used to transmit sensor data. Users may simply manage all sensor data and remotely activate other sensors or appliances through a webpage or mobile app when using the Milesight LoRaWAN gateway and Milesight IoT Cloud solution.
Key Features:
Integrated with multiple sensors like humidity, temperature, barometric pressure, wind speed, wind direction, rainfall, etc.
Waterproof, UV-proof and salt spray resistant enclosure for outdoor harsh environment applications
High power solar powered with chargeable batteries backup
Store locally more than 19, 000 historical records and support retransmission to ensure no data miss
Easy to carry and install
Ultra-wide-distance wireless transmission up to the line of sight of 15 km in rural areas
Equipped with NFC for easy and quick configuration
Compliant with standard LoRaWAN gateways and network servers
Quick and easy management with Milesight IoT Cloud
Power 16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz)
Sensitivity
-137dBm @300bps
Work Mode
OTAA/ABP Class A
Operation
Power On & Off
Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal)
Configuration
Mobile App (via NFC) or PC software (via USB Type-C)
Physical Characteristics
Power Supply
Solar powered (15 W, 1A) with 2 × 2550 mAh chargeable batteries backup
Operating Temperature
-20°C to +60°C
Relative Humidity
0% to 95% (non-condensing)
Ingress Protection
IP67
Dimension
116 × 116 × 45.5 mm
Installation
Screw Mounting
Solar Panel
Electrical Characteristics
Open-Circuit Voltage
18 V (± 0.3 V)
Rated Voltage
15 V (± 0.3 V)
Rated Current
1 A (± 5%)
Maximum Power
15 W (± 5%)
Minimal Power
14.5 W (± 5%)
Physical Characteristics
Cell Type
Monocrystalline Silicon
Operating Temperature
-20°C to +80°C
Weight
1 kg (Without Bracket), 2.2 kg (With Bracket)
Dimension
343 × 283 × 16.5 mm
Description
The IoT Weather Station (WTS Series) is an all-in-one LoRaWAN weather monitoring device for temperature, humidity, wind speed, wind direction, barometric pressure, and rainfall. IoT Weather Station is made up of 2 main components: WTS sensors and WTS Hub. It is made to survive the worst weather conditions and is simple to instal in a variety of settings for use in meteorology, smart agriculture, smart buildings, etc.
The LoRaWAN technology is used to transmit sensor data. Users may simply manage all sensor data and remotely activate other sensors or appliances through a webpage or mobile app when using the Milesight LoRaWAN gateway and Milesight IoT Cloud solution.
Key Features:
Integrated with multiple sensors like humidity, temperature, barometric pressure, wind speed, wind direction, rainfall, etc.
Waterproof, UV-proof and salt spray resistant enclosure for outdoor harsh environment applications
High power solar powered with chargeable batteries backup
Store locally more than 19, 000 historical records and support retransmission to ensure no data miss
Easy to carry and install
Ultra-wide-distance wireless transmission up to the line of sight of 15 km in rural areas
Equipped with NFC for easy and quick configuration
Compliant with standard LoRaWAN gateways and network servers
Quick and easy management with Milesight IoT Cloud
