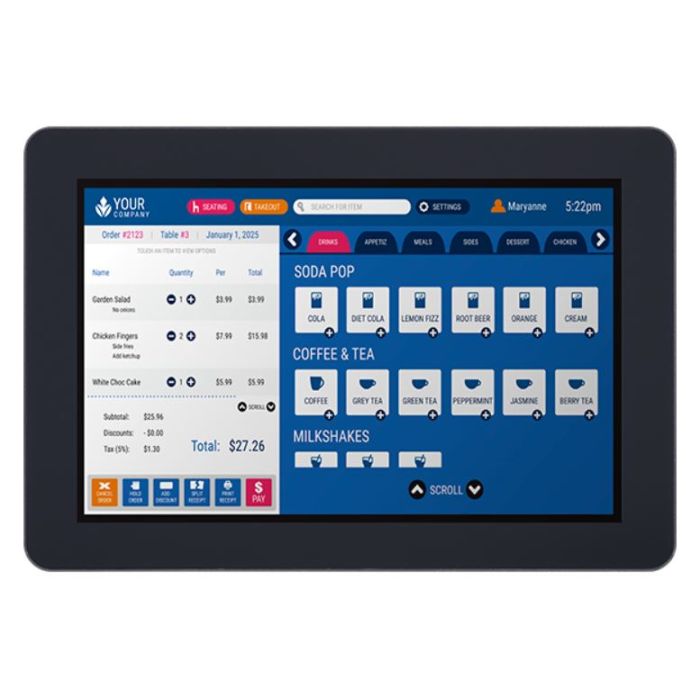

XPPC10-10N97 10.1” Fanless Touch Screen Computer Intel N97 Processor

Nexcom

10.1” TFT WXGA 16:10 Slim Bezel Embedded Touch Screen PC Powered by Intel® Processor N97

Key Features:

  • 10. 1” TFT WXGA 16:10 panel
  • 10 Points P-Cap multi-touch with a slim bezel design
  • IP65 protection on the front
  • Support: VESA / Panel / Open Frame Mounting
  • Intel® Processor N97, 6M Cache, up to 3.6GHz
  • 1 x DDR4 SO-DIMM, up to 16 GB
  • 1x M.2 Key M 2242, supports PCIe x 1 & SATA for storage
  • 1 x full-size Mini PCIe, available for Wi-Fi / LTE module
  • Support DC 12V power input

In stock

SKU
XPPC10-10N97
$825.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / XPPC10-10N97 10.1” Fanless Touch Screen Computer Intel N97 Processor

The 10.1” embedded fanless panel PC XPPC10-10N97, embedded with an industrial motherboard, is intended for vertical industrial applications. XPPC10-10N97 features an industrial-grade panel with 1280 x 800 (WXGA) resolution and 400 nits brightness. The front panel adopts a slim bezel design and complies with the IP65 rating. Its flexible mounting options make it the perfect fit for industrial applications.

XPPC10-10N97 is powered by an Intel® Processor N97. With built-in Intel® UHD Graphics, it is available for AI inference, enhancing visual quality and graphics performance. With rich I/O of USB 2.0, USB 3.2, GL AN, and COM, it fulfills the demands of various edge computing applications. XPPC10-10N97 is ideal for diverse applications, such as self-service kiosks, smart retail, and payment machines.



More Information

brand Nexcom
Specifications

Panel

  • LCD size: 10.1”, 16:10

  • Resolution: 1280 x 800 (WXGA)

  • Luminance:
    - LCD panel: industrial grade 400cd/m2
    - XPPC PCAP touch: 90% of panel’s luminance after optical bonding

  • Contrast ratio: 1000

  • LCD color: 16.7M

  • Viewing angle: 89 (U), 89 (D), 89 (L), 89(R)

Touch Screen

  • 10 points P-Cap (Projected Capacitive Touch)

  • Optical Bonding

  • Glass Surface Treatment: AS (Anti-Smudge Coating for easy cleaning)

System

  • Intel® Processor N97

  • Intel® UHD Graphics

  • TPM 2.0

Main Memory

  • 1 x DDR4 SO-DIMM, non-ECC, up to 16GB

Storage Device

  • 1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1, SATA 3.0)

  • 1 x Mini PCIe slot, supports mSATA

Expansion

  • 1 x Mini PCIe slot
    - Support Wi-Fi/BT module

I/O Interface - Rear

  • 1 x DC 12V input

  • 2 x 1GbE RJ45 port, Intel® I210AT

  • 1 x HDMI 2.0b, up to 3840x2160@60Hz

  • 2 x USB 3.2 Gen 1x1, Type-A

  • 2 x USB 2.0, Type-A

  • 1 x Speaker out (can’t hot plug)

  • 1 x Power button

I/O Interface - Front

  • 2 x Antenna hole

  • 1 x COM port, supports RS-232/422/485

I/O Interface - Internal

  • 1 x 4-pin header for Line out

  • 1 x 10-pin header for 4-in & 4-out GPIO

  • 1 x 9-pin header for COM2 RS-232

  • 1 x 3-pin jumper for LCD panel voltage 3.3V/5V setting

  • 1 x DC Power thru one 2-pin pitch=3 . 96 mm ATX connector (lockable)

Mechanical & Environment

  • System Unit
    - Dimension: 260.3mm (W) x 178.3mm (D) x 47.9mm (H)
    - Net weight: 1.62kg/ Unit

  • Support
    - VESA Mount 100mm x 100mm
    - Panel Mount (optional kit)
    - Open Frame (optional kit)

  • Package Carton
    - Dimension: 343mm x 308mm x 158mm
    - Gross weight: 2.7kg/ (1 unit / per carton)

Environment

  • Operating temperature:
    - Ambient with air flow: 0°C ~ 50°C
    - Storage temperature: -20°C ~ 60°C

  • Relative humidity: 0%~90% (non-condensing)

  • Shock protection: 20g peak acceleration, 11 ms according to
    IEC 60068-2-27

  • Vibration protection
    - Random: 2.2Grms@5~500Hz, 0.5hr/axis (non-operating),
    IEC 60068-2-64
    - Sinusoidal: 2Grms@5~500Hz, 1hr/axis, IEC 60068 -2-6

Power Supply

  • Input: DC 12V input
    - 1 x 12V, 60W AC/DC lockable adapter included in accessory

Certifications

  • CE (EMC EN 55035 + EN 55032)

  • FCC Class A (EMI Part 15B)

  • LVD (EN 62368-1)

OS Support Lists

  • Windows 11

  • Windows 10, 64bit

  • Linux


Description

The 10.1” embedded fanless panel PC XPPC10-10N97, embedded with an industrial motherboard, is intended for vertical industrial applications. XPPC10-10N97 features an industrial-grade panel with 1280 x 800 (WXGA) resolution and 400 nits brightness. The front panel adopts a slim bezel design and complies with the IP65 rating. Its flexible mounting options make it the perfect fit for industrial applications.

XPPC10-10N97 is powered by an Intel® Processor N97. With built-in Intel® UHD Graphics, it is available for AI inference, enhancing visual quality and graphics performance. With rich I/O of USB 2.0, USB 3.2, GL AN, and COM, it fulfills the demands of various edge computing applications. XPPC10-10N97 is ideal for diverse applications, such as self-service kiosks, smart retail, and payment machines.
