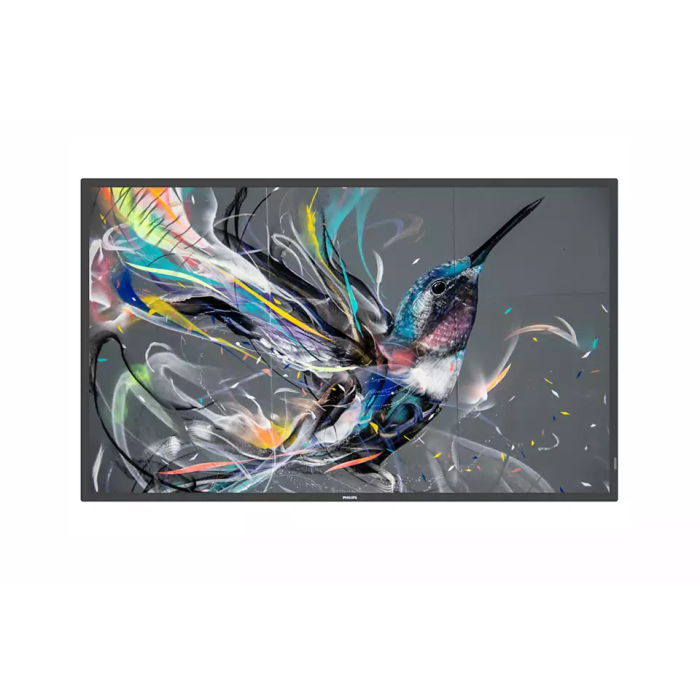

Shop 75BDL3550Q 75" Ultra HD 18/7 Display

Philips

75" Ultra HD 18/7 Display powered by Android, 400 cd/m²,

In stock

SKU: 75BDL3550Q
Size: 75"

$2,790.00

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 75BDL3550Q 75" Ultra HD 18/7 Display

With a Philips Q-Line Professional Ultra HD Display, you can both inform and fascinate your audience. This dependable solution can be up and operating in as little as a few hours.

Features

Operate, monitor and maintain with CMND & Control
OPS slot allows for PC embedding without cabling
CMND & Create. Develop and launch your own content
Integrated media player. Easily schedule USB content
Easy control. Remotely manage networked displays
Over ensures content is always playing
Android SoC processor. Native and web apps
Connect and control your content via the cloud
Ultra-HD. Rich images. Stunning contrast

More Information

brand	Philips
Specifications	Picture/Display Diagonal screen size: 74.5 inch / 189.3 cm Panel resolution: 3840 x 2160 Optimum resolution: 3840 x 2160 @60Hz Brightness: 400 cd/m² Contrast ratio (typical): 1200:1 Dynamic contrast ratio: 500,000:1 Aspect ratio: 16:9 Response time (typical): 8 ms Pixel pitch: 0.4296 x 0.4296 mm Display colors: 1.07 Billion Viewing angle (H / V): 178 / 178 degree Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement Clinical image: D-Image preset (Dicom part 14 compatible) Operating system: Android 8.0 Panel technology: ADS Connectivity Video input: DVI-D (x1), HDMI 2.0 (x3), USB 2.0 (x2), VGA (Analog D-Sub) (x1) Audio input: 3.5 mm jack Audio output: 3.5mm jack External control: RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack, RJ45 Other connections: OPS Supported Display Resolution • Computer formats (Resolution & Refresh rate) 1920 x 1080 60Hz 1680 x 1050 60Hz 1600 x 1200 60Hz 1440 x 900 60Hz 1280 x 1024 60Hz 1280 x 800 60Hz 1280 x 720 60Hz 1152 x 870 75Hz 1024 x 768 60, 70, 75Hz 800 x 600 56, 60, 72, 75Hz 720 x 400 70Hz 640 x 480 60, 67, 72, 75Hz 1152 x 864 75Hz 832 x 624 75Hz • Video formats (Resolution & Refresh rate) 3840 x 2160 60Hz 3840 x 2160 30Hz 576p 50Hz 576i 50Hz 480p 60Hz 480i 60Hz 1080p 50, 60Hz 1080i 50, 60Hz 720p 50,60 Hz Dimensions Bezel width: 14.9 mm (Even bezel) Set dimensions (W x H x D): 1683.5 x 961.7 x 69.5mm(D@wall mount) / 91.8mm(D@handle) mm Set dimensions in inch (W x H x D): 66.28 x 37.86 x 2.74(@ wall mount)/ 3.61(@handle) inch Product weight: 37.5 kg Product weight (lb): 82.67 lb VESA Mount: 600 x 400 mm, M8 Convenience Keyboard control: Hidden, Lockable Network controllable: RS232, RJ45 Signal loop through: RS232, IR Loopthrough Energy saving functions: Smart Power Remote control signal: Lockable Tiled Matrix: Up to 15 x 15 Placement: Landscape (18/7), Portrait (18/7) Start-up: Switch on delay, Switch on status, Boot on source Start-up window: enable / disable Philips logo Ease of installation: Smart Insert Power Mains power: 100 - 240V~, 50/60Hz Standby power consumption: <0.5W Power Saving Features: Smart Power Consumption (Max): 310 W Consumption (Typical): 160 W Energy Label Class: G Operating conditions Altitude: 0 ~ 3000 m Temperature range (operation): 0 ~ 40 °C Temperature range (storage): -20 ~ 60 °C MTBF: 50,000 hour(s) Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation) Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation) Sound Built-in speakers: 2 x 10W RMS Accessories Included accessories: AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide Included Accessories: IR sensor cable (1.8 m) (x1), RS232 daisy-chain cable, M3 screw (X1), M4 Screw (x1), Philips logo (x1), USB Cover (x1) Multimedia Applications USB Playback Video: MPEG, H.264, H.263, H.265 USB Playback Picture: BMP, JPEG, PNG USB Playback Audio: AAC, HEAAC, MPEG Miscellaneous Warranty: 3-year warranty On-Screen Display Languages: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Spanish, Turkish, Japanese, Arabic Regulatory approvals: CE, CB, BSMI, CU, EPA, ETL, FCC, Class A, PSB, VCCI Internal Player CPU: Dual-core cortex A53 1.1G Hz, Dual core cortex A73 1.15G Hz GPU: ARM Mali G51 Memory: 2GB DDR3, 8GB
Description	With a Philips Q-Line Professional Ultra HD Display, you can both inform and fascinate your audience. This dependable solution can be up and operating in as little as a few hours. Features Operate, monitor and maintain with CMND & Control OPS slot allows for PC embedding without cabling CMND & Create. Develop and launch your own content Integrated media player. Easily schedule USB content Easy control. Remotely manage networked displays Over ensures content is always playing Android SoC processor. Native and web apps Connect and control your content via the cloud Ultra-HD. Rich images. Stunning contrast

brand

Philips

Specifications

Picture/Display

Diagonal screen size: 74.5 inch / 189.3 cm
Panel resolution: 3840 x 2160
Optimum resolution: 3840 x 2160 @60Hz
Brightness: 400 cd/m²
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Response time (typical): 8 ms
Pixel pitch: 0.4296 x 0.4296 mm
Display colors: 1.07 Billion
Viewing angle (H / V): 178 / 178 degree
Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Clinical image: D-Image preset (Dicom part 14 compatible)
Operating system: Android 8.0
Panel technology: ADS

Connectivity

Video input: DVI-D (x1), HDMI 2.0 (x3), USB 2.0 (x2), VGA (Analog D-Sub) (x1)
Audio input: 3.5 mm jack
Audio output: 3.5mm jack
External control: RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack, RJ45
Other connections: OPS

Supported Display Resolution

• Computer formats (Resolution & Refresh rate)

1920 x 1080 60Hz
1680 x 1050 60Hz
1600 x 1200 60Hz
1440 x 900 60Hz
1280 x 1024 60Hz
1280 x 800 60Hz
1280 x 720 60Hz
1152 x 870 75Hz
1024 x 768 60, 70, 75Hz
800 x 600 56, 60, 72, 75Hz
720 x 400 70Hz
640 x 480 60, 67, 72, 75Hz
1152 x 864 75Hz
832 x 624 75Hz

• Video formats (Resolution & Refresh rate)

3840 x 2160 60Hz
3840 x 2160 30Hz
576p 50Hz
576i 50Hz
480p 60Hz
480i 60Hz
1080p 50, 60Hz
1080i 50, 60Hz
720p 50,60 Hz

Dimensions

Bezel width: 14.9 mm (Even bezel)
Set dimensions (W x H x D): 1683.5 x 961.7 x 69.5mm(D@wall mount) / 91.8mm(D@handle) mm
Set dimensions in inch (W x H x D): 66.28 x 37.86 x 2.74(@ wall mount)/ 3.61(@handle) inch
Product weight: 37.5 kg
Product weight (lb): 82.67 lb
VESA Mount: 600 x 400 mm, M8

Convenience

Keyboard control: Hidden, Lockable
Network controllable: RS232, RJ45
Signal loop through: RS232, IR Loopthrough
Energy saving functions: Smart Power
Remote control signal: Lockable
Tiled Matrix: Up to 15 x 15
Placement: Landscape (18/7), Portrait (18/7)
Start-up: Switch on delay, Switch on status, Boot on source
Start-up window: enable / disable Philips logo
Ease of installation: Smart Insert

Power

Mains power: 100 - 240V~, 50/60Hz
Standby power consumption: <0.5W
Power Saving Features: Smart Power
Consumption (Max): 310 W
Consumption (Typical): 160 W
Energy Label Class: G

Operating conditions

Altitude: 0 ~ 3000 m
Temperature range (operation): 0 ~ 40 °C
Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)
Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation)
Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation)

Sound

Built-in speakers: 2 x 10W RMS

Accessories

Included accessories: AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide
Included Accessories: IR sensor cable (1.8 m) (x1), RS232 daisy-chain cable, M3 screw (X1), M4 Screw (x1), Philips logo (x1), USB Cover (x1)

Multimedia Applications

USB Playback Video: MPEG, H.264, H.263, H.265
USB Playback Picture: BMP, JPEG, PNG
USB Playback Audio: AAC, HEAAC, MPEG

Miscellaneous

Warranty: 3-year warranty
On-Screen Display Languages: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Spanish, Turkish, Japanese, Arabic
Regulatory approvals: CE, CB, BSMI, CU, EPA, ETL, FCC, Class A, PSB, VCCI

Internal Player

CPU: Dual-core cortex A53 1.1G Hz, Dual core cortex A73 1.15G Hz
GPU: ARM Mali G51
Memory: 2GB DDR3, 8GB

Description

With a Philips Q-Line Professional Ultra HD Display, you can both inform and fascinate your audience. This dependable solution can be up and operating in as little as a few hours.

Features
