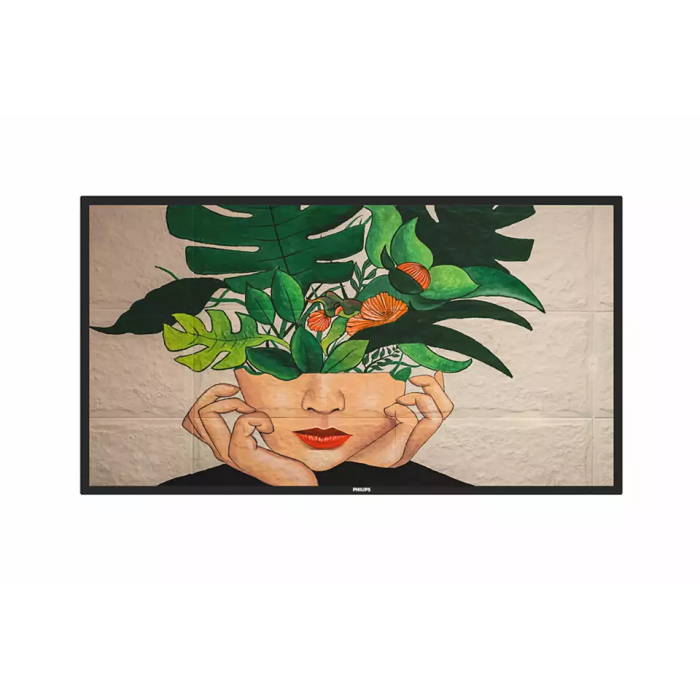

Shop 75BDL4550D 75" 24/7 Android Display

Philips

75" Android Powered D-Line Display with WiFi, 500cd/m²

In stock

SKU: 75BDL4550D
Size: 75"

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 75BDL4550D 75" 24/7 Android Display

A smarter, faster signage display that will astound your visitors. It's the next step in signage technology, with built-in WiFi and the ability to run Android apps.

Features

75" 500cd/m²
Save and play content with internal memory
Integrated dual-band WiFi
Android SoC processor. Native and web apps
CMND: Take control of your displays
Keep your content up and running with FailOver
Ensure your content is running with automatic screenshots
SmartPower for energy saving
ADS wide-view panel display

More Information

brand	Philips
Specifications	Picture/Display Diagonal screen size: 74.5 inch / 189.3 cm Panel resolution: 3840 x 2160 Optimum resolution: 3840 x 2160 @60Hz Brightness: 500 cd/m² Contrast ratio (typical): 1200:1 Dynamic contrast ratio: 500,000:1 Aspect ratio: 16:9 Response time (typical): 8 ms Pixel pitch: 0.4296 x 0.4296 mm Display colors: 1.07 Billion Viewing angle (H / V): 178 / 178 degree Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan Operating system: Android 8.0 Panel technology: IPS Connectivity Video input: Display Port1.2 (x1), DVI-I (x 1), HDMI 2.0 (x3), USB 2.0 (x2) Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1) Audio input: 3.5 mm jack Audio output: 3.5mm jack External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack Other connections: OPS WiFi: dual antenna 2,4Ghz and 5Ghz Supported Display Resolution • Computer formats (Resolution & Refresh rate) 1920 x 1080 60Hz 1280 x 1024 60Hz 1024 x 768 60Hz 1280 x 720 60Hz 1440 x 900 60 Hz 1600 x 900 60Hz 1680 x 1050 60Hz 3840 x 2160 30, 60Hz 640 x 480 60Hz 800 x 600 60Hz • Video formats (Resolution & Refresh rate) 1080p 50, 60Hz 1080i 50, 60Hz 2160p 24, 30, 60Hz 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50,60 Hz Dimensions Set dimensions (W x H x D): 1683.5 x 961.7 x 91.8(D@Handle)/69.5(D@Wall mount) mm Set dimensions in inch (W x H x D): 66.28 x 37.86 x 3.61(D@Handle)/2.74(D@Wall mount) inch Bezel width: 14.9 mm (Even bezel) Product weight (lb): 80.0 lb Product weight: 36.3 kg VESA Mount: 600(H)x400(V) mm, M8 Convenience Placement: Landscape (24/7), Portrait (24/7) Tiled Matrix: Up to 10 x 15 Keyboard control: Hidden, Lockable Signal loop through: IR Loopthrough, DisplayPort, HDMI, RS232 Network controllable: RS232 Energy saving functions: Smart Power Screen saving functions: Pixel Shift, Low Bright WiFi protocol: a b g n, 802.1x Power Standby power consumption: <0.5 W Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz Consumption (Typical): 224 W Consumption (Max): 375 W Energy Label Class: G Operating conditions Temperature range (operation): 0 ~ 40 °C Temperature range (storage): -20 ~ 60 °C Altitude: 0 ~ 3000 m MTBF: 50,000 hour(s) Humidity range (operation)[RH]: 20 - 80% RH (No condensation) Humidity range (storage) [RH]: 5 - 95% RH (No condensation) Sound Built-in speakers: 2 x 10W RMS Accessories Included accessories: Quick start guide, RS232 cable, AC Power Cord, IR sensor cable (1.8M), Remote Control & AAA Batteries Included Accessories: RS232 daisy-chain cable, Philips logo (x1), AC Switch Cover, USB Cover (x1), Screws Multimedia Applications USB Playback Audio: AAC, HEAAC, MPEG USB Playback Picture: BMP, JPEG, PNG USB Playback Video: MPEG, H.263, H.264, H.265 Miscellaneous On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish Regulatory approvals: CE, RoHS, BSMI, CB, CCC, CU, EMF, EnergyStar 8.0, ETL, FCC, Class A, PSB, VCCI, J-Moss, PSE Warranty: 3-year warranty Internal Player CPU: 2 x A53 + 2 x A73 GPU: ARM Mali G51 Memory: 3GB DDR Storage: 32 GB eMMc
Description	A smarter, faster signage display that will astound your visitors. It's the next step in signage technology, with built-in WiFi and the ability to run Android apps. Features 75" 500cd/m² Save and play content with internal memory Integrated dual-band WiFi Android SoC processor. Native and web apps CMND: Take control of your displays Keep your content up and running with FailOver Ensure your content is running with automatic screenshots SmartPower for energy saving ADS wide-view panel display

brand

Philips

Specifications

Picture/Display

Diagonal screen size: 74.5 inch / 189.3 cm
Panel resolution: 3840 x 2160
Optimum resolution: 3840 x 2160 @60Hz
Brightness: 500 cd/m²
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Response time (typical): 8 ms
Pixel pitch: 0.4296 x 0.4296 mm
Display colors: 1.07 Billion
Viewing angle (H / V): 178 / 178 degree
Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan
Operating system: Android 8.0
Panel technology: IPS

Connectivity

Video input: Display Port1.2 (x1), DVI-I (x 1), HDMI 2.0 (x3), USB 2.0 (x2)
Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
Audio input: 3.5 mm jack
Audio output: 3.5mm jack
External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack
Other connections: OPS
WiFi: dual antenna 2,4Ghz and 5Ghz

Supported Display Resolution

• Computer formats (Resolution & Refresh rate)

1920 x 1080 60Hz
1280 x 1024 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1440 x 900 60 Hz
1600 x 900 60Hz
1680 x 1050 60Hz
3840 x 2160 30, 60Hz
640 x 480 60Hz
800 x 600 60Hz

• Video formats (Resolution & Refresh rate)

1080p 50, 60Hz
1080i 50, 60Hz
2160p 24, 30, 60Hz
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50,60 Hz

Dimensions

Set dimensions (W x H x D): 1683.5 x 961.7 x 91.8(D@Handle)/69.5(D@Wall mount) mm
Set dimensions in inch (W x H x D): 66.28 x 37.86 x 3.61(D@Handle)/2.74(D@Wall mount) inch
Bezel width: 14.9 mm (Even bezel)
Product weight (lb): 80.0 lb
Product weight: 36.3 kg
VESA Mount: 600(H)x400(V) mm, M8

Convenience

Placement: Landscape (24/7), Portrait (24/7)
Tiled Matrix: Up to 10 x 15
Keyboard control: Hidden, Lockable
Signal loop through: IR Loopthrough, DisplayPort, HDMI, RS232
Network controllable: RS232
Energy saving functions: Smart Power
Screen saving functions: Pixel Shift, Low Bright
WiFi protocol: a b g n, 802.1x

Power

Standby power consumption: <0.5 W
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical): 224 W
Consumption (Max): 375 W
Energy Label Class: G

Operating conditions

Temperature range (operation): 0 ~ 40 °C
Temperature range (storage): -20 ~ 60 °C
Altitude: 0 ~ 3000 m
MTBF: 50,000 hour(s)
Humidity range (operation)[RH]: 20 - 80% RH (No condensation)
Humidity range (storage) [RH]: 5 - 95% RH (No condensation)

Sound

Built-in speakers: 2 x 10W RMS

Accessories

Included accessories: Quick start guide, RS232 cable, AC Power Cord, IR sensor cable (1.8M), Remote Control & AAA Batteries
Included Accessories: RS232 daisy-chain cable, Philips logo (x1), AC Switch Cover, USB Cover (x1), Screws

Multimedia Applications

USB Playback Audio: AAC, HEAAC, MPEG
USB Playback Picture: BMP, JPEG, PNG
USB Playback Video: MPEG, H.263, H.264, H.265

Miscellaneous

On-Screen Display Languages: English, French,
German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
Regulatory approvals: CE, RoHS, BSMI, CB, CCC, CU, EMF, EnergyStar 8.0, ETL, FCC, Class A, PSB, VCCI, J-Moss, PSE
Warranty: 3-year warranty

Internal Player

CPU: 2 x A53 + 2 x A73
GPU: ARM Mali G51
Memory: 3GB DDR
Storage: 32 GB eMMc

Description

A smarter, faster signage display that will astound your visitors. It's the next step in signage technology, with built-in WiFi and the ability to run Android apps.

Features
