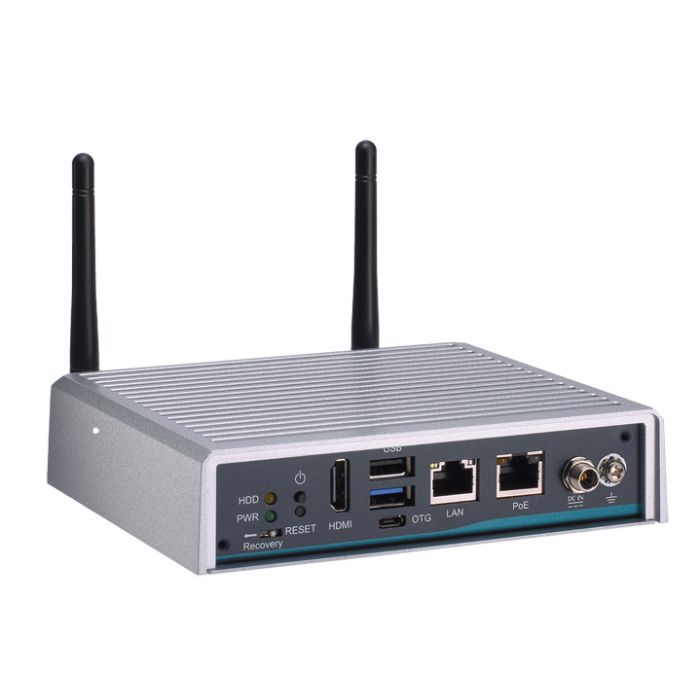

AIE100-903-FL-NX Fanless Edge AI System with NVIDIA Jetson Xavier

Axiomtek

Fanless Edge AI System with NVIDIA® JETSON™ Xavier NX SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB

In stock

SKU
AIE100-903-FL-NX

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AIE100-903-FL-NX Fanless Edge AI System with NVIDIA Jetson Xavier

The Axiomtek AIE100-903-FL-NX  is an NVIDIA® Jetson™ Xavier NX based system with 6-core NVIDIA® Carmel ARM® v8.2 64-bit processor and 384-core NVIDIA® Volta™ GPU architecture with 48 Tensor cores. The rugged design means an ultra-compact edge computing device can operate in harsh environments with wide temperatures from -30°C to +50°C and can withstand vibration up to 3 Grms. In addition, has optional waterproof IP42-rated cover kit for enhanced protection in semi-outdoor environments. The AIE100-903-FL-NX is ideal for smart city, smart manufacturing, ADAS, smart retail, and other intelligent edge AI applications.

Supports one 15W GbE PoE for IP camera.



More Information

brand Axiomtek
Specifications
CPU
  • CPU Board: NVIDIA® Jetsonâ„¢ Xavier NX
  • CPU: 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
GPU
  • 384-core NVIDIA Voltaâ„¢ GPU with 48 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 1 x 8GB 128-bit LPDDR4x onboard
COM
  • N/A
USB
  • 1 x USB 3.1 Gen2
  • 1 x USB 2.0
  • 1 x Micro USB
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Via JETSONâ„¢ Xavier NX)
  • 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
Display
  • 1 x HDMI 2.0 with 4K2K supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  • 1 x Micro SD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 VDC power input connector
  • 2 x SMA-type antenna connector
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Built-in Xavier NX
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -30°C to +50°C (-22°F to +122°F)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 147.4 x 129.8 x 34.6 mm (5.8" x 5.11" x 1.36")
Weight (net/gross)
  • TBC
Certifications
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 18.04
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit


Description

The Axiomtek AIE100-903-FL-NX  is an NVIDIA® Jetson™ Xavier NX based system with 6-core NVIDIA® Carmel ARM® v8.2 64-bit processor and 384-core NVIDIA® Volta™ GPU architecture with 48 Tensor cores. The rugged design means an ultra-compact edge computing device can operate in harsh environments with wide temperatures from -30°C to +50°C and can withstand vibration up to 3 Grms. In addition, has optional waterproof IP42-rated cover kit for enhanced protection in semi-outdoor environments. The AIE100-903-FL-NX is ideal for smart city, smart manufacturing, ADAS, smart retail, and other intelligent edge AI applications.

Supports one 15W GbE PoE for IP camera.


pdf
Data sheet
