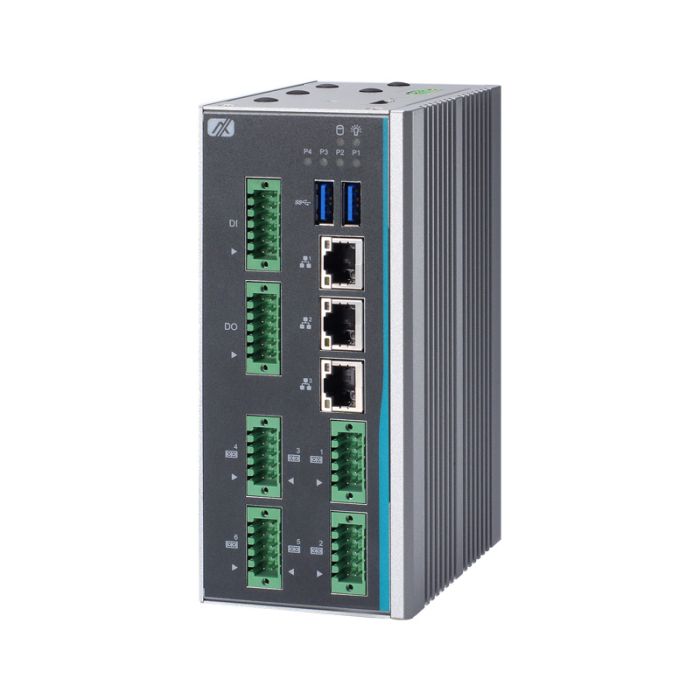

ICO300-83M ATEX/C1D2 Certified DIN-rail Fanless PC

Axiomtek

ATEX/C1D2 Certified Atom® x5-E3930 Processor, Isolated COM, LAN and DIO

In stock

SKU
ICO300-83M

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / ICO300-83M ATEX/C1D2 Certified DIN-rail Fanless PC

The ICO300-83M combines flexible configuration & expansion design and supports a wide array of functional I/O, including six isolated RS-232/422/485 serial ports, one HDMI port, two USB 3.0 ports, three isolated Gigabit Ethernet ports, one 8-in/8-out DIO port, and five antenna openings for WLAN and WWAN.

For additional storage the IIoT gateway system comes with one mSATA occupied with a PCI Express Mini Card slot, an internal 2.5” SATA drive, and an optional eMMC on board. The ICO300-83M is compatible with Windows®10, IoT and Linux and also supports Axiomtek’s AXView software to fulfill the requirement of remote monitoring. In addition, a cold boot at -40°C is available to help eliminate issues affecting the operational reliability of the system. Trusted Platform Module 2.0 (TPM 2.0) is also available to ensure critical information security.

  • Cost-effective with fanless design
  • Intel Atom® x5-E3930 processor
  • 6 isolated COM, isolated DIO (8-in/8-out), 3 GbE LAN
  • Wide operating temperature range from -40°C to +85°C
  • 9 to 36 VDC, typical 12/24V power input with OVP, UVP, OCP, RPP
  • Supports 5G connectivity
  • Supports TPM 2.0
  • ATEX/C1D2 certified
  • Supports cold boot at -40°C

More Information

brand Axiomtek
Specifications
CPU
  • Intel® Atom® x5-E3930 1.3GHz/2C/6.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM, up to 8GB
COM
  • 2 x Isolated RS-232/422/485 (Phoenix Type)
  • 4 x Isolated RS-232/422/485 (4-wire, Phoenix Type)
USB
  • 2 x USB 3.0
Ethernet
  • 3 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® i210-IT)
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x Isolated 8-in/8-out DIO
Analog Input
  • N/A
Display
  • 1 x HDMI (up to 1920 x 1200 @60Hz)
Expansion
  • 1 x M.2 Key B 3052: USB3.0 /PCIe (for 5G module)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB (for LTE/Wi-Fi module)
  • 1 x Half-size Rev.1.2 PCI Express Mini Card slot: USB/mSATA (for mSATA)
  • 2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card)
Storage
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x Internal 2.5\" SATA drive (9.5 mm height)
  • 1 x eMMC on board (optional)
Others
  • TPM 2.0
  • 3 x Antenna opening
Power Supply
  • 1 x Terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +75°C (-40°F to +167°F)
  • Cold boot at -40°C
  • Supports +85°C operating temperature under condition
Relative Humidity
  • 0% to 95%
Vibration
  • 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions
(W x D x H)
  • 66 x 110 x 155 mm (2.48\" x 4.33\" x 6.1\")
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE (Class A), FCC (Class A)
  • ATEX/C1D2
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • AMS.AXView
Mounting
  • DIN-rail
  • Wall Mounting
Description

The ICO300-83M combines flexible configuration & expansion design and supports a wide array of functional I/O, including six isolated RS-232/422/485 serial ports, one HDMI port, two USB 3.0 ports, three isolated Gigabit Ethernet ports, one 8-in/8-out DIO port, and five antenna openings for WLAN and WWAN.

For additional storage the IIoT gateway system comes with one mSATA occupied with a PCI Express Mini Card slot, an internal 2.5” SATA drive, and an optional eMMC on board. The ICO300-83M is compatible with Windows®10, IoT and Linux and also supports Axiomtek’s AXView software to fulfill the requirement of remote monitoring. In addition, a cold boot at -40°C is available to help eliminate issues affecting the operational reliability of the system. Trusted Platform Module 2.0 (TPM 2.0) is also available to ensure critical information security.

  • Cost-effective with fanless design
  • Intel Atom® x5-E3930 processor
  • 6 isolated COM, isolated DIO (8-in/8-out), 3 GbE LAN
  • Wide operating temperature range from -40°C to +85°C
  • 9 to 36 VDC, typical 12/24V power input with OVP, UVP, OCP, RPP
  • Supports 5G connectivity
  • Supports TPM 2.0
  • ATEX/C1D2 certified
  • Supports cold boot at -40°C
