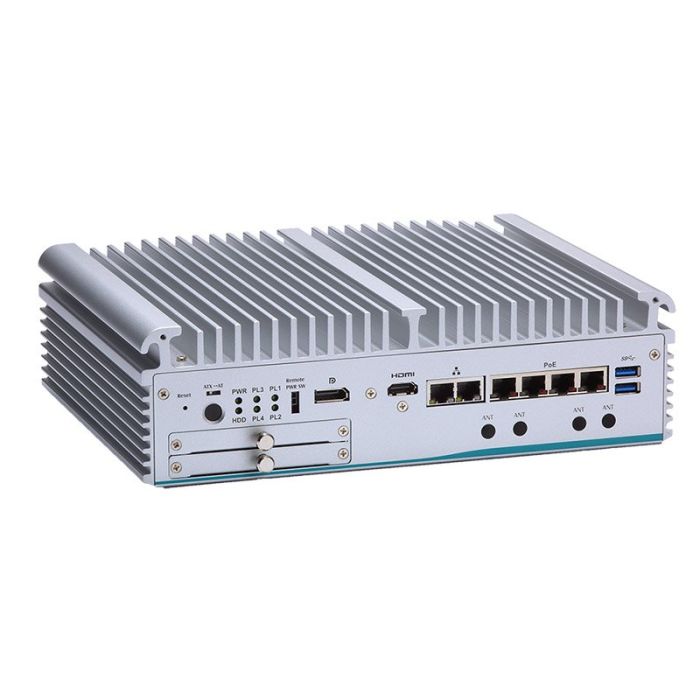

eBOX671-521-FL Fanless Embedded System 9th/8th Gen
Fanless Embedded System with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, 4-CH PoE and MXM 3.1 Type A
Key Features:
- 9th/8th gen Intel Core i7/i5/i3 & Celeron with Intel Q370 chipset (Coffee Lake/Coffee Lake Refresh-S)
- 4-CH PoE (IEEE802.3at compliance)
- Dual swappable 2.5" SATA HDD drive bays with RAID 0 &1
- Supports MXM 3.1 type A graphics module (optional)
- DVI-I, HDMI, and DisplayPort with triple-view supported
- AMS.AXView intelligent remote monitoring software for IIoT
In stock
- SKU
- eBOX671-521-FL-DC
Have a Question about this product?
Description / eBOX671-521-FL Fanless Embedded System 9th/8th Gen
For applications in machine vision, edge computing, traffic vision, deep learning, and artificial intelligence of things, the eBOX671-521-FL is a GPU computing embedded system with 4-CH PoE and MXM 3.1 Type-A slot. The excellent eBOX671-521-FL with increased GPU computing capability is powered by a 9th/8th generation Intel CoreTM i7/i5/i3 CPU with up to six cores, Intel Pentium processor, or Intel Celeron processor, and comes with either an Intel Q370 or an optional Intel C246 chipset. Dual DDR4 ECC/non-ECC SO-DIMM slots for up to 64GB of system memory are included in the fanless integrated GPU-based system. This embedded vision computer may be placed on a wall or on a DIN-rail for usage in a variety of settings.
Features:
- 9th/8th gen Intel Core i7/i5/i3 & Celeron with Intel Q370 chipset (Coffee Lake/Coffee Lake Refresh-S)
- 4-CH PoE (IEEE802.3at compliance)
- Dual swappable 2.5" SATA HDD drive bays with RAID 0 &1
- Supports MXM 3.1 type A graphics module (optional)
- DVI-I, HDMI, and DisplayPort with triple-view supported
- AMS.AXView intelligent remote monitoring software for IIoT
More Information
| Brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | For applications in machine vision, edge computing, traffic vision, deep learning, and artificial intelligence of things, the eBOX671-521-FL is a GPU computing embedded system with 4-CH PoE and MXM 3.1 Type-A slot. The excellent eBOX671-521-FL with increased GPU computing capability is powered by a 9th/8th generation Intel CoreTM i7/i5/i3 CPU with up to six cores, Intel Pentium processor, or Intel Celeron processor, and comes with either an Intel Q370 or an optional Intel C246 chipset. Dual DDR4 ECC/non-ECC SO-DIMM slots for up to 64GB of system memory are included in the fanless integrated GPU-based system. This embedded vision computer may be placed on a wall or on a DIN-rail for usage in a variety of settings. Features:
|
