EM300-MCS LoRaWAN Magnetic Contact Switch

Milesight IoT

LoraWan Magnetic Contact Switch 5 year battery

In stock

SKU
EM300-MCS-915M

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / EM300-MCS LoRaWAN Magnetic Contact Switch

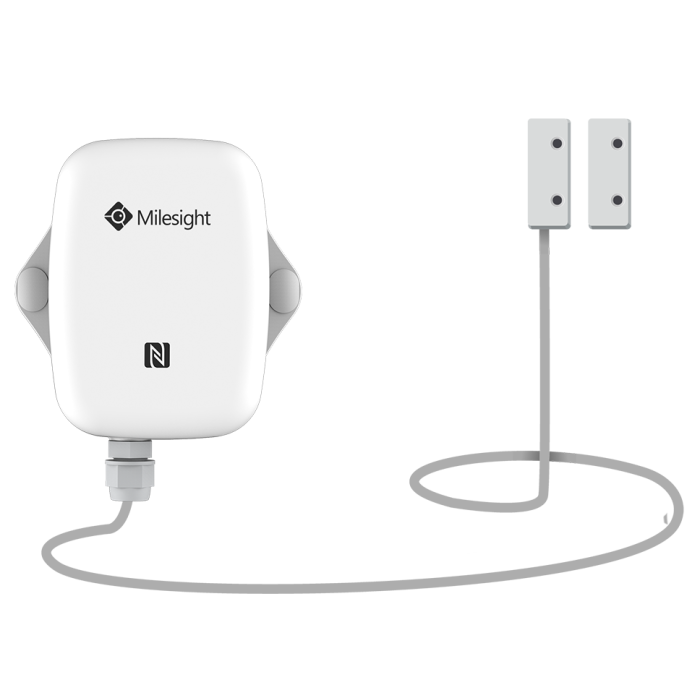

The EM300-MCS is a small magnet switch sensor that uses LoRaWAN technology to detect if a door or window is open or closed and to convey an alarm. The EM300-MCS can operate for up to 5 years on a 4000 mAh battery thanks to this low power consumption technology. Users can control all sensor data remotely and graphically with the help of the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, and they can even get alarms via a mobile APP. Temperature and humidity sensors are also integrated into the EM300-MCS, which is very useful for applications like home and office automation, factory monitoring, etc.

Key Features:

  • High sensitivity with door and window security detection
  • Embedded with temperature and humidity sensors for environment monitoring
  • Ultra-wide-distance transmission up to a line of sight of 10km
  • IP67 UV-resistant and waterproof enclosure for harsh environment applications
  • Built-in 4000 mAh replaceable battery and works for 5 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

More Information

brand Milesight IoT
Specifications
LoRaWAN Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 17dBm (470) / 16dBm (868) / 20dBm (915)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Sensing Lead Cable 1007UL #22AWG 260mm
Type Normally closed
Distance of magnets 20-30mm
Distance of holes 22mm
Temperature Measuring Range -30°C to +70°C
Accuracy 0 ~ 70°C: ±0.3°C
-30 ~ 0°C: ±0.6°C
Resolution 0.1°C
Humidity Measuring Range 0%~100% RH
Accuracy ±3%(10~90%RH)
±5%(Other ranges)
Resolution 0.10%
Physical Characteristics Power Supply ER18505 Li-SOCl2 4000 mAh (8000 mAh optional)
Battery Life ≧ 5 years ( for 1 battery)
Operating Temperature -40°C to 70°C
Ingress Protection IP67
Dimension 88 × 87 × 27 mm
Mounting Wall (screws or 3M adhesives)
Description

The EM300-MCS is a small magnet switch sensor that uses LoRaWAN technology to detect if a door or window is open or closed and to convey an alarm. The EM300-MCS can operate for up to 5 years on a 4000 mAh battery thanks to this low power consumption technology. Users can control all sensor data remotely and graphically with the help of the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, and they can even get alarms via a mobile APP. Temperature and humidity sensors are also integrated into the EM300-MCS, which is very useful for applications like home and office automation, factory monitoring, etc.

Key Features:

  • High sensitivity with door and window security detection
  • Embedded with temperature and humidity sensors for environment monitoring
  • Ultra-wide-distance transmission up to a line of sight of 10km
  • IP67 UV-resistant and waterproof enclosure for harsh environment applications
  • Built-in 4000 mAh replaceable battery and works for 5 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution
