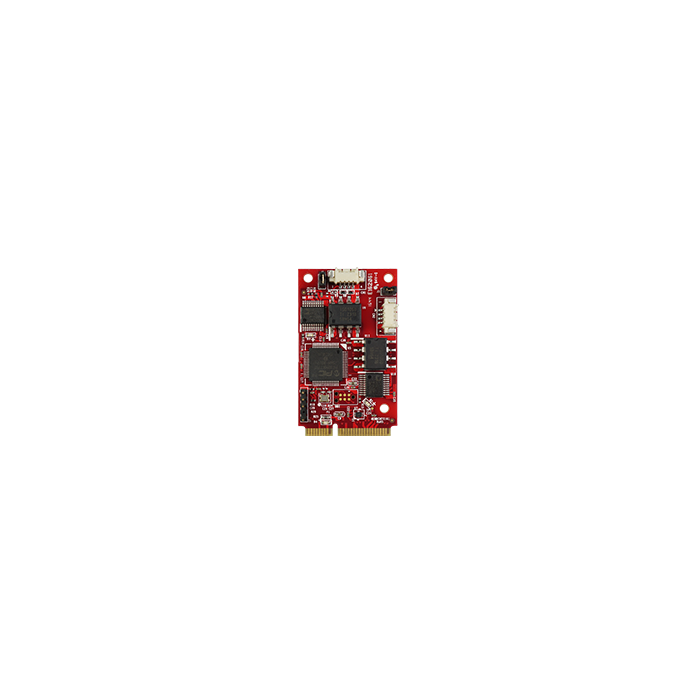

Shop EMUC-B202-Wx - Dual isolated CAN 2.0B/J1939/CANopen Module

- CANbus 2.0B compatible 2.0A

- Baud rate 100/125/250/500(default)/800/1000K
- Linux SocketCAN support

In stock

SKU: EMUC-B202-W1/W2/W3

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / EMUC-B202-Wx - Dual isolated CAN 2.0B/J1939/CANopen Module

^{Module Name}	^EMUC-B202
^{Module Type}	^{USB to dual isolated CANbus 2.0B/J1939 Module}
^Function	^CANbus
^{Form Factor}	^mPCIe
^{Input I/F}	^{USB 2.0}
^{Output I/F}	^{CANbus 2.0B}
^{Output connector}	^{2 x DB-9}
^TDP	^{1.62W (3.3V, 490mA)}
^{Dimensions (W x L x H/mm)}	^{30 x 50.9 x 8.35}
^Temperature	^{Operation: W/T temp: -40°C ~ +85°C} ^{Storage: -55°C ~ +95°C}
^Environment	^{Vibration: 5G @7~2000Hz} ^{Shock: 50G @ 0.5ms}
^Notes	^{Download driver and API from MyInnodisk website.} ^{Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64bit), 10(32/64bit)} ^{Linux: Kernel 2.6 and above (Native CDC-ACM driver),} ^{Kernel 2.6.38 and above (SocketCAN Driver), 32/64bit QNX: 6.6}

More Information

Specifications

CANbus 2.0B backward compatible with 2.0A
−Support baud rate 100/125/250/500(default)/800/1000K
−Support CAN message acceptance filter
−Keep configuration after hardware reboot
−Up to 6000 CAN messages per second (receive data)
−Support Listen-only mode
−Additional driver to support Linux SocketCAN
−Support SAE J1939 high layer protocol (Optional)
−Termination resistor enabled/disabled by jumper
−Complies with EN61000-4-5 2.5kV Surge protection
−Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013
2.5kV HiPOT protection
−Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
−Supports -40 to +85 degrees
−Industrial design, manufactured in Taiwan

Description

^{Module Name}	^EMUC-B202
^{Module Type}	^{USB to dual isolated CANbus 2.0B/J1939 Module}
^Function	^CANbus
^{Form Factor}	^mPCIe
^{Input I/F}	^{USB 2.0}
^{Output I/F}	^{CANbus 2.0B}
^{Output connector}	^{2 x DB-9}
^TDP	^{1.62W (3.3V, 490mA)}
^{Dimensions (W x L x H/mm)}	^{30 x 50.9 x 8.35}
^Temperature	^{Operation: W/T temp: -40°C ~ +85°C} ^{Storage: -55°C ~ +95°C}
^Environment	^{Vibration: 5G @7~2000Hz} ^{Shock: 50G @ 0.5ms}
^Notes	^{Download driver and API from MyInnodisk website.} ^{Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64bit), 10(32/64bit)} ^{Linux: Kernel 2.6 and above (Native CDC-ACM driver),} ^{Kernel 2.6.38 and above (SocketCAN Driver), 32/64bit QNX: 6.6}

Datasheet

Linux SocketCan driver v2.6 & utility v2.7 *

User Manual *

* You must Login or Register to download this file
