VTC1911-IPK - Intel Atom E3815, Dual Sim IP67 rated PC

Nexcom

Intel Atom® E3815 Telematics IoT Gateway IP67 Water and Dust Resistant

In stock

SKU
VTC 1911-IPK

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / VTC1911-IPK - Intel Atom E3815, Dual Sim IP67 rated PC

The VTC 1911-IPK is a waterproof entry-level vehicle PC based on Intel Atom® E3815 1.46GHz designed for the wet, dirty and harsh environment. The rugged design resists water and dust to IP67 levels. It also complies with stringent MIL-STD-810G standard for voibration and support wide temp and input voltage range. Itegrated GPS and optional LTE, Wifi and CAN make it the complete package.



·         IP67 precision design to resist water and dust

·         Built-in CAN 2.0B. Optional OBDII function (SAE J1939/J1708)

·         U-blox NEO-M8N on board

·         Dual SIM cards for WWAN modules

·         Additional waterproof HDMI connector (by request)

·         Smart power management with ignition on/off delay via software control and low voltage protection

·         Wide range DC input from 9V~36V

·         Wide operating temperature -40°C~70°C

·         Certified by CE/FCC/E13 mark

More Information

brand Nexcom
Specifications
CPU Intel Atom® processor Bay Trail E3815, 1.46GHz
Memory 1 x 204-Pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB
Storage 1 x mSATA 1 x SATA DOM or 1 x 2.5” SSD
Expansion 1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (mSATA + USB 2.0 + PCIe)
Function 1 x U-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/ BeiDou) Built-in G-sensor TPM 2.0
I/O Interface-Front 4 x LED for power, WWAN, Wi-Fi, storage 2 x SIM socket (micro type) with cover 1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet 1 x (Male) 15-pin waterproof D-SUB connector
- 1 x RS485 (TX+/TX-)
- 1 x USB 2.0
- 1 x Mic-in (L/R)
- 1 x Line-out (L/R)
- 1 x Optional VIOB-CAN-05/06 or 2 x video input 1 x (Female) 15-pin waterproof D-SUB connector
- 2 x RS-232 (TX/RX)
- 1 x CAN 2.0B (w/ isolation)
- 3 x DI, 3 x DO 2 x Antenna hole for WWAN/WLAN

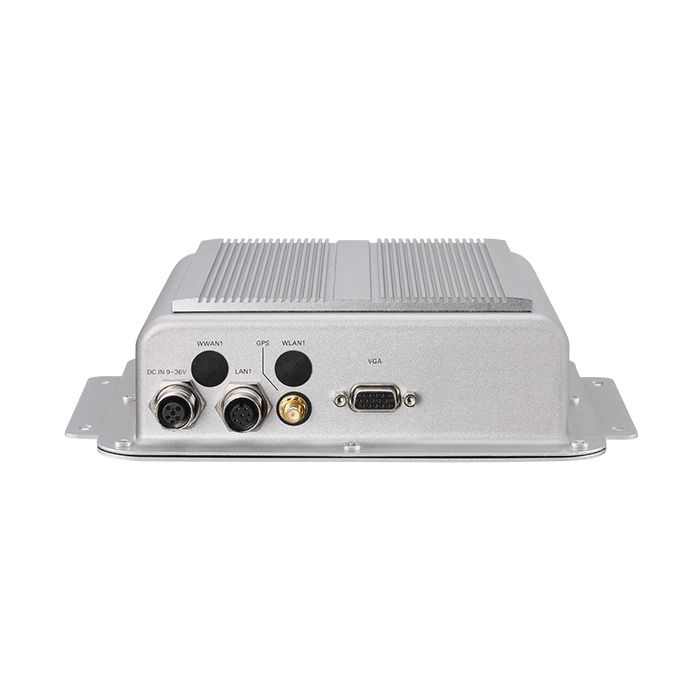

I/O Interface-Rear 1 x M12 5-pin circular power connector (ignition, power, GND) 1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet 1 x 15-Pin waterproof D-SUB connector for VGA output 1 x Waterproof HDMI connector (by request) 3 x Antenna hole for WWAN/WLAN/GPS
Operating System Windows 7, WES7 Windows 8, WES8 Windows 10 Linux (by request)
Dimensions 185 x 167 x 56.5 (W x D x H) (mm) (7.28” x 6.57” x 2.22”) Weight: 1.1kg (2.42bs)
Environment Temperature
- Operating temperatures: -40°C~70°C
- Storage temperatures: -45°C~85°C
- Damp heat test per EN60068-2-30 Humidity
- IEC60068-2-3, damp heat steady state test, 40°C, 95%, 48Hrs Vibration
- IEC 60068-2-64, 2G
- Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4
- Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24 Shock
- MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
- Crash hazard: Procedure V, ground equipment=75g
Certifications CE FCC Class A E13
Description

The VTC 1911-IPK is a waterproof entry-level vehicle PC based on Intel Atom® E3815 1.46GHz designed for the wet, dirty and harsh environment. The rugged design resists water and dust to IP67 levels. It also complies with stringent MIL-STD-810G standard for voibration and support wide temp and input voltage range. Itegrated GPS and optional LTE, Wifi and CAN make it the complete package.



·         IP67 precision design to resist water and dust

·         Built-in CAN 2.0B. Optional OBDII function (SAE J1939/J1708)

·         U-blox NEO-M8N on board

·         Dual SIM cards for WWAN modules

·         Additional waterproof HDMI connector (by request)

·         Smart power management with ignition on/off delay via software control and low voltage protection

·         Wide range DC input from 9V~36V

·         Wide operating temperature -40°C~70°C

·         Certified by CE/FCC/E13 mark
