NEXCOM IP65 vehicle computer VTC 7252-7C4IP accomplishes operational efficiency of harsh environments. Based on the 9th generation Intel Core processors i7-9700TE, VTC 7252-7C4IP provides an integrated solution, incorporating high computing power, 4 ports of independent PoE, 2 ports of independent LAN and GNSS tracking with optional Dead Reckoning (DR) support. This provides the ability to record in-vehicle activities, locations, high-quality videos, driving patterns and vehicle diagnostics for raw material and public work vehicles, achieving better measures for safety and management.
Intel® Core™ 9th Gen, i7-9700TE, up to 3.8GHz, 8 Core
Full IP65 protection
4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
2 x Internal 2.5” SSD, 2 x mSATA and
1 x CFast with RAID 0/1/5/10
2 x Isolated CAN Bus 2.0B
Optional GNSS Dead Reckoning supported
Support 5G NR, Wi-Fi 6, V2X/DSRC, accelerator cards
CE / FCC / E-mark (E13) / MIL-STD-810G
More Information
Brand
Nexcom
Specifications
CPU
Intel® Core™ 9th Gen. i7-9700TE, up to 3.8 GHz, 35W, 8 Core
Chipset
Intel® C246 platform controller hub
Memory
2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial-grade memory
Video Output
Chipset Intel® UHD Graphics 630
1 x VGA up to 1920 x 1200 @ 60Hz
1 x HDMI (4096 x 2160 @ 30Hz) (option)
Storage
2 x 2.5” SATA 3.0 internal SSD (tray: 15mm height)
2 x mSATA 3.0 (occupied mini-PCIe socket) + 1 x CFast
RAID 0/1/5/10 supported
Expansion
1 x M.2 3042/3052 Key B (USB 2.0, USB 3.2 Gen 2×1) for LTE/5G NR
2 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])
1 x M.2 2230 Key E (USB 2.0, 2 x PCIe 3.0) for Wi-Fi. (BOM option)
1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0)
GNSS and On Board Sensor
1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/Galileo/Beidou, optional modules with dead reckoning available
2 x LAN, 10/100/1000 Mbps (1 for I219 support iAMT and WOL)
I/O Interface-Front
1 x Reset button
16 x LED indicators (including 2 x programmable LED)
2 x USB 3.2 Gen
2 x 1 type A (5V/0.9A) with cover
2 x External Micro SIM slot with cover
1 x CFast with cover
1 x 6-pin for audio (1 x mic-in (mono)
1 x line-out (L + R)). (option) Additional 1 x mic-in (mono) and 1 x line-out (L + R)
1 x M12 8-pin for 2 x USB2.0 (5V/0.5A)
1 x M12 8-pin for full RS-232/422/4852 x M12 8-pin for full RS-232
1 x M12 12-pin
- 2 x Isolated CAN Bus 2.0B - 3 x DI, and 3 x DO1 x M12 8-pin (internal reservation) - 12VDC(2A) output - RS-232 (TX & RX) - Remote power button - Reset button - Sleeping mode button
1 x VGA (internal reservation)
1 x HDMI (internal reservation)

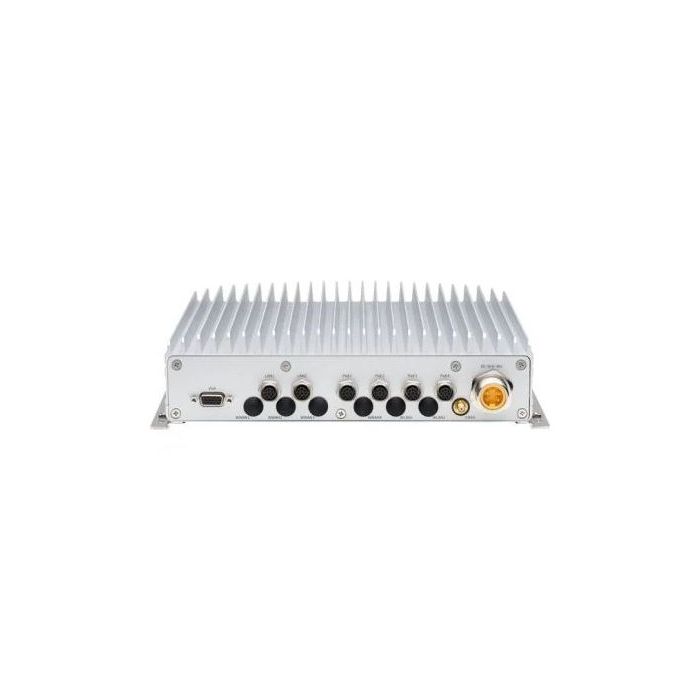

I/O Interface-Rear
1 x VGA
2 x M12 A-code LAN port, 10/100/1000 Mbps
4 x M12 A-code PoE port, 10/100/1000 Mbps
1 x M12 5-Pin DC Input with Ignition (9 ~ 36V)
7 x SMA antenna hole (WWAN(4)/WLAN(2)/GNSS(1))
Power Management & Software Support
Power input 9~36VDC
Cranking voltage: 6V~9V (< 30 seconds)
Reverse protection, OCP & UVP
Selectable boot-up & shut-down voltage for low power protection by software
Setting 8-level power on/off delay time by software
1~255 seconds WDT support, setup by software
SDK (Windows/Linux) including utility and sample code
Operating System
Windows 10
Linux
Dimensions
256 x 256.4 x 66.5 (W x D x H) (mm)
Weight
4.5kg
Environment
Operating temperatures - -30°C~60°C (w/ industrial SSD) with air flow
Storage temperatures: -40°C~80°C
Relative humidity: 90% (non-condensing)
Vibration (random) - 2g @ 5~500 Hz (in operation, SSD)
Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
