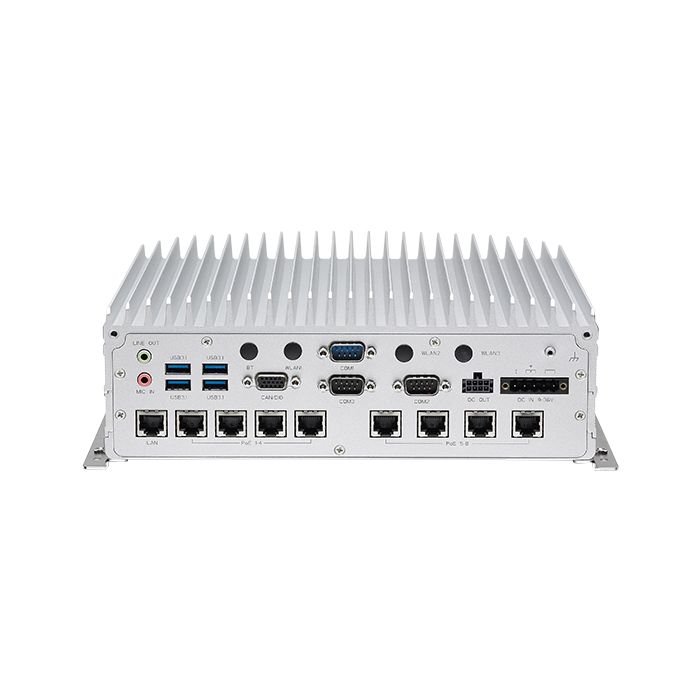

The ATC 8010-7 features a fanless design and a powerful Artificial Intelligence (AI) platform with low power consumption, making it ideal for applications such as ANPR, AFR, and graphics-intensive tasks. Its updated Intel Coffee Lake desktop 35W CPU and AI accelerator MXM module ensures graphic performance, meeting the majority of Automated Intelligent (AI) requirements. The 8-Port 802.3af/at PoE provides a large bandwidth and precise control for big video data analysis. Furthermore, ultraONE+ technology commits to transmitting video and audio over a distance of up to 10 metres. Users can monitor live video without any delay or blind spots using 1 x HDMI and 1 x VGA.
Key Features:
Intel Core 8th Gen. i7-8700T, 2.4GHz, 6 Core
8 x Independent Intel I210-IT 10/100/1000 PoE 802.3af/at
AI accelerator MXM module supported
ultraONE+ for 10-Meter video + audio output
2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
2 x WWAN module and 3 x SIM socket with eSIM option
Fanless design
3 x mini-PCIe and 1 x M.2
CE/FCC/E mark
More Information
brand
Nexcom
Specifications
CPU
Intel Core 8th Gen. i7-8700T processors, 2.4GHz, 35W, 6 core
1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))1 x M.2 key B 3042, (USB 2.0, USB 3.2 (Gen1))
GNSS and On-board Sensor
1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou. Optional modules with dead reckoning availableBuilt-in G SensorTPM 2.0Watchdog timer: Programmable 1~255 sec
24 x LED indicators (including 4 x programmable LED)1 x HDMI 1.4b from Intel CPU (max resolution: 4096 x 2160 at 30Hz)1 x VGA (max resolution: 1920 x 1200@60Hz)1 x ultraONE+ for 10M video + audio output + 24VDC output2 x USB 3.2 (Gen2) type A (5V/1A)2 x Externally accessible SIM sockets, 1 x internal SIM socket2 x 2.5” removable SSD tray1 x Reset button1 x Power button5 x SMA antenna
I/O Interface-Rear
8 x PoE 802.3af/at (max. 60W)1 x LAN, I210-IT 10/100/1000 Mbps1 x 5-pin terminal block for 9V~36VDC1 x Mic-in, 1 x Line-out4 x 2 connector for 12VDC/2A output, power button, 2 x MDI2 x DB9 for full RS2321 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)1 x DB15 - 1 x Isolated CANBus 2.0B - 1 x GPS DR - 4 x DI and 4 x DO4 x SMA antenna4 x USB 3.2 (Gen2) type A (5V/1A)
Power Management
Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode
