ATC8110 In-Vehicle Advanced Telematics Computer

Nexcom

Intel Coffee Lake S/Refresh + Inference Accelerator AI Powered for Autonomous and Machine Vision

Key Features:

  • In-vehicle AI recognition and machine vision applications
  • Fanless/fan flexibility design
  • 8/9th Gen Core i/Xeon CPU
  • 3 x PCIe 3.0 slots for Discrete Graphics/Inference/Frame Grabber cards
  • Ultra-fast U.2/M.2 NVMe media for high-speed multi-cameras image capture
  • RAID 0/1/5/10 configurable for data security and integrity
  • Wide-range 9~36VDC input with Ignition management
  • Rich communication ports, 5 x USB 3.1, 2 x GbE and 4 x RS232/422/485
  • Telemetric functionality of WWAN/5G NR, WLAN and GNSS with up to 4 x 4 MIMO and 4 SIM slots
  • Compliant with E-mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock w/ graphics card
  • Realize M-2-M through CAT-M (NB-IoT & eMTC)

In stock

SKU
ATC8110/8110-F

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / ATC8110 In-Vehicle Advanced Telematics Computer

Artificial intelligence has become a critical component of automated vehicle technology. The ATC 8110 can handle a wide range of applications for autonomous vehicles, law enforcement, and factory automation, such as ANPR, facial recognition, machine vision, and self-driving, thanks to its high-performance Intel Coffee Lake S/Refresh processor and the powerful NVIDIA GeForce RTX 2080 Ti graphics engine with 4,352 CUDA cores.

Key Features:

  • In-vehicle AI recognition and machine vision applications
  • Fanless/fan flexbility design
  • Up to 8-core Intel Coffee-Lake S/Refresh processing power
  • 3 x PCIe 3.0 slots for Discrete Graphics/Inference/Frame Grabber cards
  • Ultra-fast u.2/M.2 NVMe media for high-speed multi-cameras image capture
  • RAID 0/1/5/10 configurable for data security and integrity
  • Wide-range 9~36VDC input with Ignition management
  • Rich communication ports, 5 x USB 3.1, 2 x GbE, 4/8 GigE (PoE) and 4 x RS232/422/485
  • Telemetrics functionality of WWAN/5G NR, WLAN and GNSS with up to 4 x 4 MIMO and 4 SIM slots
  • Compliant with E-mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock w/ graphics card installed
  • Realize M-2-M through CAT-M (NB-IoT & eMTC)



More Information

brand Nexcom
Specifications
CPU Intel® Coffee-Lake S/Refresh Core™/Xeon® i7/i5/i3/Pentium®/Celeron® processor (LGA1151)
PCH Intel® chipset C246
Memory Two 204-pin DDR4 SO-DMIM socketsUp to 32GB+32GB in size, 2400/2666 MHz
Storage 3 x 2.5” SATA 3.0 SSD/HDD (15mm height) or 2 x 2.5” SATA 3.0 SSD/HDD+ 1 x u.2 NVMe SSD1 x CFast (externally accessible)
Expansion 1 x Full size mPCIe socket (PCIe 2.0 + USB 2.0)1 x Full size mPCIe socket (USB 2.0 + PCM signal)1 x Key-B 3042/3052 M.2 socket (USB 3.0 + PCM signal) for LTE/5G NR modem1 x Key-M 2280 M.2 socket (PCIe 3.0 x4) for NVMe, optional1 x PCIe 3.0 x16 slot for discrete graphics card, up to 321mm in length2 x PCIe 3.0 x4 slot, up to 190mm in lengthGigE/Frame Grabber (option)4/8-Port independent GbE w/ 802.3af/at, RJ45 or M12
Discrete Graphics Card (option) Up to NVIDIA® RTX 2080Ti, 250W or more advanced in the future
GPS and Sensor 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouOptional modules with dead reckoning availableBuilt-in G-sensor
Ethernet 2-Port independent GbE LAN, RJ459K byte jumbo framePTP (IEEE 1588) supportController: Intel® i210-T1, PHY: Intel® I219LMvPro (iAMT) & WOL supportAdditional 4/8-port independent GbE/PoE PCIe card for option
Security TPM 2.0: Infineon SLB9660TT1.2-FW4.40 (option)
I/O Ports, Front-Plate 5-Pin terminal block for 9~36VDC-INATX power buttonReset button5 x LED indicators for power/IGN/WLAN/WWAN/status5 x LED indicators for storage/fan control5 x LED indicators for user to program1 x USB 3.1 + 1 x USB 2.0, type A1 x DB15 ((DI/DO + CAN 2.0B + DR signal))1 x DB15, reserved for expansion6 x SMA antenna holes2 x DB9 (RS232/RS422/RS485 selectable)

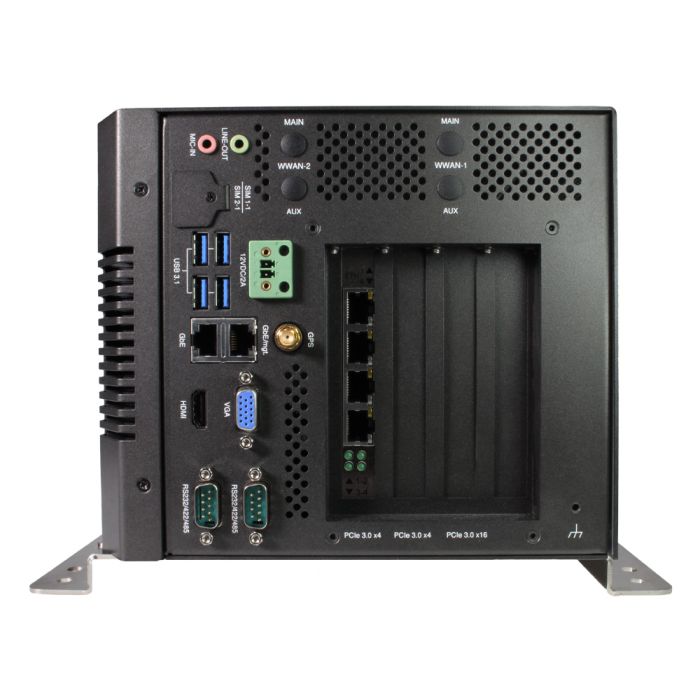

I/O Ports, Rear-Plate 4 x USB 3.1, type A2 x GbE (RJ45)1x VGA + 1 x HDMI2x DB9 (RS232/RS422/RS485 selectable)12V/2A output2 x SIM slots1 x Antenna for GPS1 x PCIe x16 lane slot2 x PCIe x4 lane slots
Display 1 x VGA port, up to 2560 x 1600@60Hz1 x HDMI v1.4, up to 4096 x 2304@24Hz
DI/DO (isolation) 4-bit input
- Source: 9~36V-IN (12V@1.1mA/24V@2.2mA)
- External: 0~33VDC pull-high, high-level, 3.3 - 33 VDC; low-level, 0 - 2 VDC4-bit output
- Source: 9~36V-IN (nominal 35mA@24V):
- External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)Source or external can be selected by software (default: source type)
Audio Line-out (green-color): unbalance stereo, left & right channelMIC-in (pink-color)
CAN 2.0B (isolation) CAN 2.0B (isolation)Controller: SJA1000Bit rate up to 1Mbit/sSocket CAN supported11-bit & 29-bit identifiers, ISO 11898- 1, ISO 11898-2ESD: ± 8KV/15KV (contact/air)2.5KV isolated
In-Vehicle Power Management Dual 9~36VDC-IN (each for 12V/30A in max.)Cranking voltage: 6V~9V (< 30 seconds)Reverse protection, OCP & UVPIgnition on/off control/programmable on/off delay timerExtra 12V@2A for DC-out
Dimensions & Weight ATC 8110 (fanless): 191.2 x 176 x 350 (W x D x H) (mm)ATC 8110-F (fan-kit installed): 207.4 x 176 x 350 (W x D x H) (mm)ATC 8110/ATC8110F: 8KG/8.2KG (w/ o graphics/PCIe card)
Environment Operating temperatures
- -30°C~60°C (fanless design w/ 35W TDP CPU, 60°C for industrial SSD, 45°C for hard drive)Storage temperatures: -40°C~85°CRelative humidity: 10%~95% (non-condensing)
Vibration (random) IEC 60068-2-64
- 1.0g@5~500Hz (in operating, HDD), 2.0g for HDD w/ damping brackets
- 2.0g@5~500Hz (in operating, SSD + graphics card)MIL-STD-810G (SSD + graphics card)
- Operating: MIL-STD-810G, 514.6C, category 4
- Storage: MIL-STD-810G, 514.6, category 24, minimum integrity testShock (SSD + graphics card)
- Operating: MIL-STD-810G, Method 516.6, procedure I, functional shock=20g
- Non-operating: MIL-STD-810G, Method 516.6, procedure V, crash hazard shock test=75g
Certifications CE approval, FCC Class A, E13
Description

Artificial intelligence has become a critical component of automated vehicle technology. The ATC 8110 can handle a wide range of applications for autonomous vehicles, law enforcement, and factory automation, such as ANPR, facial recognition, machine vision, and self-driving, thanks to its high-performance Intel Coffee Lake S/Refresh processor and the powerful NVIDIA GeForce RTX 2080 Ti graphics engine with 4,352 CUDA cores.

Key Features:

  • In-vehicle AI recognition and machine vision applications
  • Fanless/fan flexbility design
  • Up to 8-core Intel Coffee-Lake S/Refresh processing power
  • 3 x PCIe 3.0 slots for Discrete Graphics/Inference/Frame Grabber cards
  • Ultra-fast u.2/M.2 NVMe media for high-speed multi-cameras image capture
  • RAID 0/1/5/10 configurable for data security and integrity
  • Wide-range 9~36VDC input with Ignition management
  • Rich communication ports, 5 x USB 3.1, 2 x GbE, 4/8 GigE (PoE) and 4 x RS232/422/485
  • Telemetrics functionality of WWAN/5G NR, WLAN and GNSS with up to 4 x 4 MIMO and 4 SIM slots
  • Compliant with E-mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock w/ graphics card installed
  • Realize M-2-M through CAT-M (NB-IoT & eMTC)
