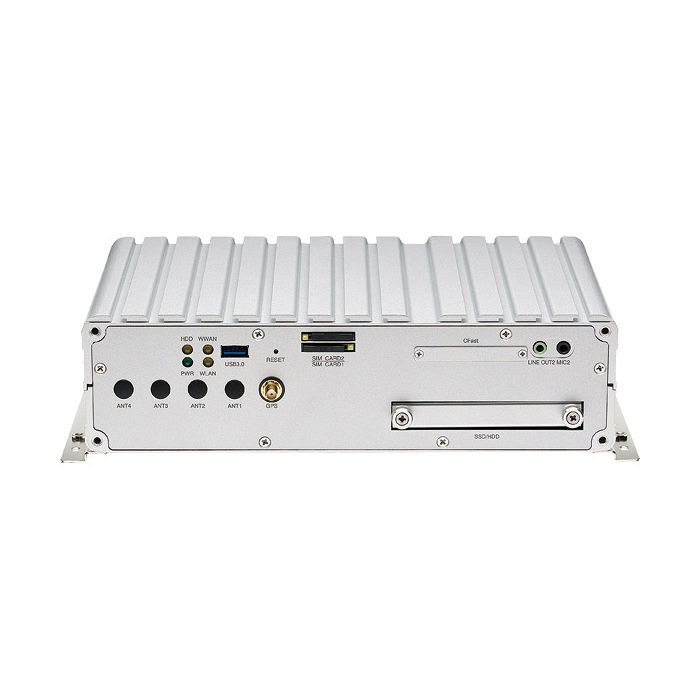

VTC6210-R Intel Atom E3845, EN50155 Conformity

_{Intel® Atom™ processor quad core E3845, 1.91GHz}

_{1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB}

_{1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available)}

_{1 x CFast (externally accessible)}

_{1 x Full size mini-PCIe socket (USB 2.0)}

_{1 x Full size mini-PCIe socket (USB 2.0 + PCIe)}

_{1 x Full size mini-PCIe socket (USB 2.0 + PCIe)}

_{1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor}

_{4 x LED for power, storage, WWAN, WLAN}

_{2 x Externally accessible SIM card socket (selectable)}

_{1 x Phone jack 3.5mm for 1 x Mic-in}

_{1 x Phone jack 3.5mm for 1 x Line-out}

_{1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray}

_{1 x Externally accessible CFast card socket with cover}

_{1 x Reset button}

_{1 x Type A USB 3.0 compliant host, supporting system boot up}

_{4 x Antenna hole for WWAN/WLAN/BT}

<sub>1 x Circle Type DC Input with ignition and typical 19W power consumption
- 24VDC(16.8~31.2V), non-isolation
- 36VDC(25.2~46.8V), non-isolation
- 110VDC(77~143V), w/ 3KVDC isolation</sub>

_{1 x M12 with two USB 2.0 compliant host, supporting system boot up}

_{2 x M12 10/100/1000 Ethernet}

_{1 x Phone jack 3.5mm for}

_{1 x Mic-in}

_{1 x Phone jack 3.5mm for 1 x Line-out}

_{1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz}

_{1 x DP port, resolution up to 2560 x 1600 @60H}

_{1 x Antenna hole for GPS 2 x DB-9 RS-232 (isolation)}

_{1 x DB-9 RS-422/485 (isolation)}

<sub>1 x 16-pin terminal block
- 1 x CAN Bus 2.0B (on board)
- 4 x DI, 4 x DO with isolation
Input Voltage (internal type): 5VDC TTL (default)
Input Voltage (source type): 3 ~ 12VDC (Programmable Digital output or optional isolation)
Digital output (sink type): 5VDC TTL (default), max current: 20mA
Digital output (source type): 3 ~ 19VDC, max current: 150mA</sub>

_{Ignition On/Off control Programmable On/Off delay timer System wake up event
Ignition switch
RTC timer ALARM interrupt
Cellular MODEM wakeup signal System wake up condition
Wake up event is triggered, and DC input voltage is greater than UVP threshold
Timer delay is only applicable for Ignition on
System power down condition
Soft off, or Ignition off
Timer delay is only applicable for Ignition off}

_{Windows 8, WES8 Window 7, WES7 Linux kernel 3.X}

_{260mm (W) x 176mm (D) x 70mm (H) (10.24" x 6.93" x 2.75")}

_{Weight: 2.5kg}

_{Operating temperatures:
-40°C to 70°C (w/ industrial SSD) with air flow
-20°C to 50°C (w/ commercial HDD) with air flow}

_{Storage temperatures: -40°C to 85°C}

_{Relative humidity: 10% to 90% (non-condensing) Shock (SSD/HDD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g}

<sub>EN50155 conformity
- Ambient Temperature EN 50155 TX (-40 ~ 70° C)
- Shock and Vibration IEC 61373 class B
- Interruptions of Voltage Supply Class S1,S2
- Supply Change Over Class C1,C2
- EMC EN 50121-3-2</sub>
