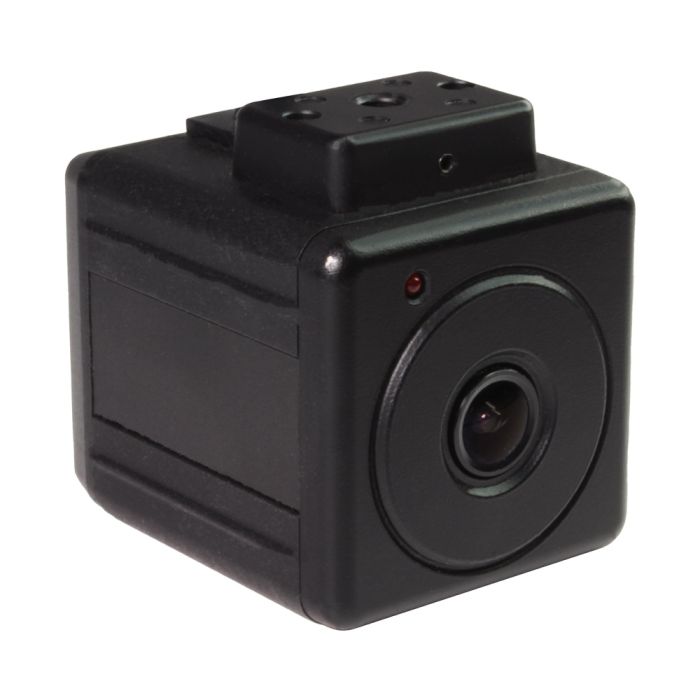

CAMERA

Lens

2.9mm (Viewing Angle 140.5° x 120.2° x 65.3°)

Optional Lens

Up to 25mm

Image Sensor

1/2.7” 2.0 Megapixel Progressive CMOS Sensor

Effective Pixels

1920(H) x 1080(V), approx. 2.0M pixels

Min. Illumination

Colour Mode: 0.2 Lux

Scanning Mode

Progressive Scan

Day/Night Mode

Automatic, Day, Night

Auto Exposure

Automatic, Manual

Shutter Speed

1/25 ~ 1/10,000

White Balance

Automatic, Manual

Digital Zoom

Yes (on-screen)

Backlight Compensation

OFF/HLC/BLC/WDR (<30FPS)

Image Effect

Mirror, Flip

Privacy Mask

1 Area Selection

Video Motion Detection

1 Area Selection (8 x 10 = 80 areas)

Lens Shading

ON/OFF

ACE

OFF/LOW/MIDDLE/HIGH

Motion Detection

ON/OFF

NETWORK

Video Compression

H.264 (Baseline profile), MJPEG

Video Resolution (30fps)

H.264 - Primary: 1920x1080, 1280x720, 640x480, 320x240

H.264 Secondary: 640x480, 320x240

Video Resolution (60fps)

H.264 - Primary: 1280x720, 640x480, 320x240

H.264 Secondary: 640x480, 320x240

Video Streaming

H.264/H.264 or H.264/MJPEG Dual Streaming

Login Authority

Administrator, Operator, Viewer

Security

ID/Password

Network Time Sync

Synchronize Computer/NTP Server, Manual

Remote Upgrade

Using Web Browser

Protocols

TCP/IP, UDP, IPv4, HTTP, UPnP, RTP, RTSP, RTCP, DHCP

Client Software

Built-In Web, ONVIF Compatible 3rd Party VMS

Max User Connection

4 Users

SDK Support

CGI Command, ONVIF Compliant

OPERATION ENVIRONMENTS

Operating Humidity

0~80% (non-condensing)

Operating Temperature

-10℃ ~ +60℃

Power

PoE Support

DC12V Optional

Power Consumption: 1.6W
